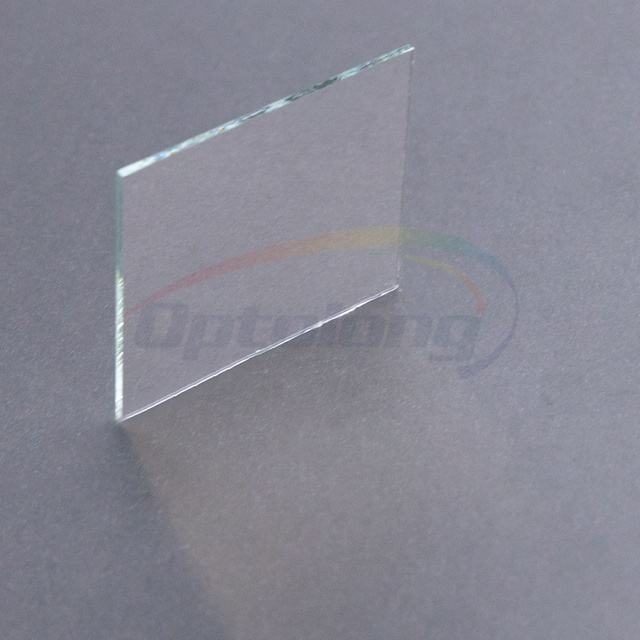

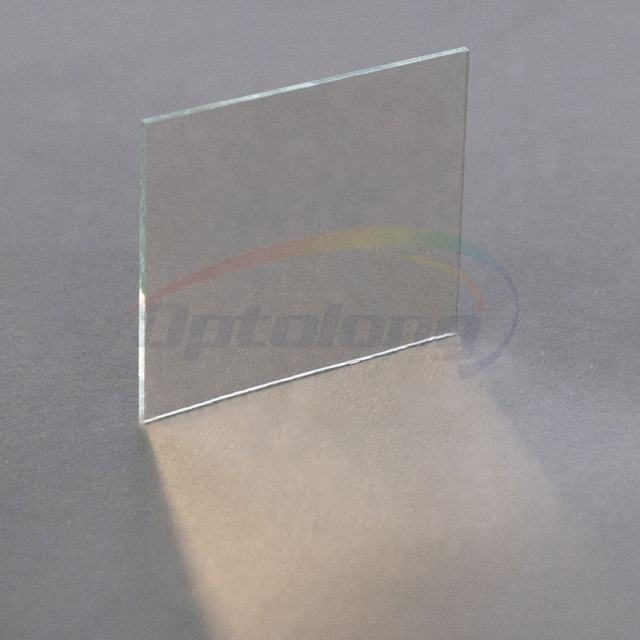

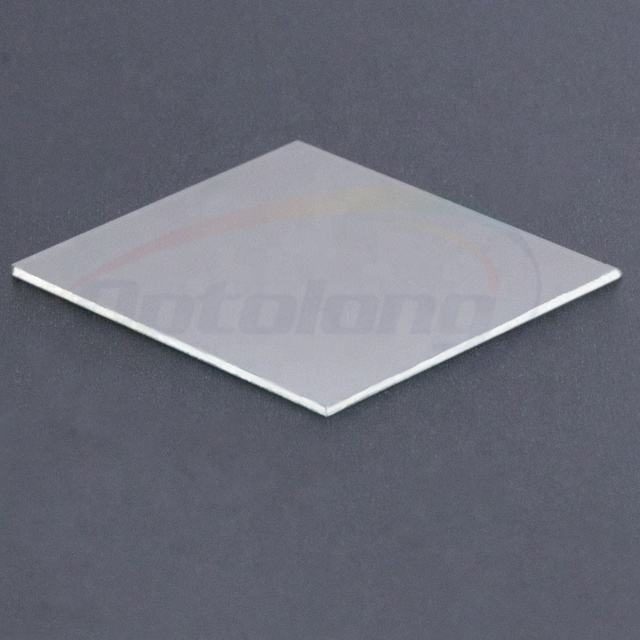

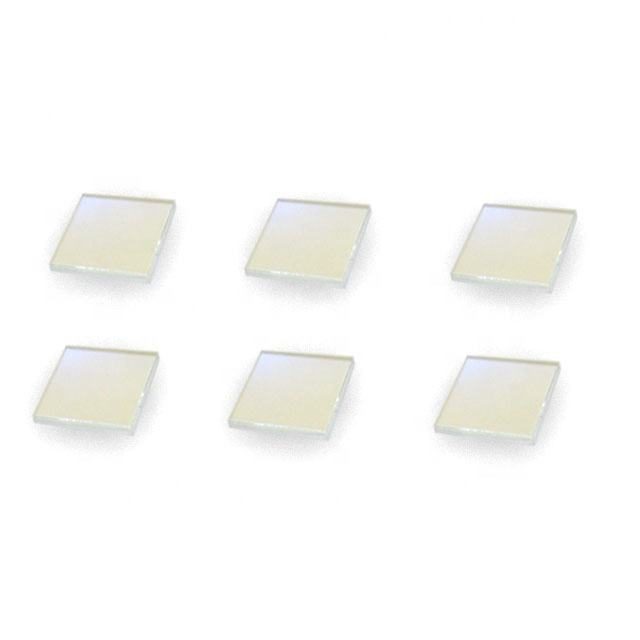

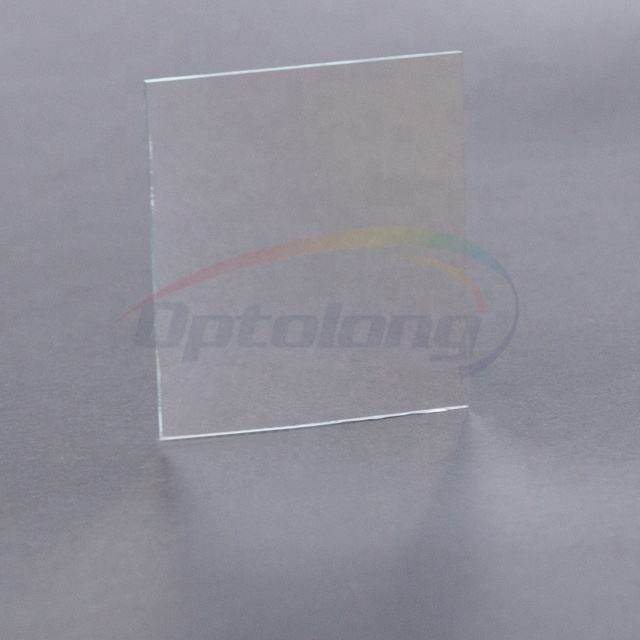

5 mm B270 Beamsplitter

Product description

This beamsplitter is designed for applications requiring precise light division across a broad spectral range of 0.4 to 1.7 μm. With a high transmittance of 85%, it effectively facilitates light management in laser systems, machine vision, and biomedical imaging. Its B270 substrate ensures durability and optical clarity, making it suitable for various demanding environments. Customization options are available to meet specific project needs, ensuring compatibility with diverse applications.

Key Features

High transmittance of 85% for efficient light division.
Suitable for wavelengths from 0.4 to 1.7 μm, covering key application areas.
B270 substrate provides excellent optical clarity and durability.
OEM, ODM, and OBM support for tailored solutions.
Compact size of 5.0 mm x 5.0 mm for versatile integration.

Specification Summary

Item	Value
Material	B270
Size	5 mm
Thickness	Custom
Transmittance	85%
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Transmission	70%±7%
Reflection	30%±7%
Substrate	B270, Float Glass
Certification	ISO9001,RoHS,EPR

FAQ

Is custom sizing available?

Yes, customization options are available for specific project requirements.

What is the minimum order quantity?

The minimum order quantity is not specified, allowing for flexible sourcing.
