10x1.1 mm B270 Optical Filter

Explore the 530nm Narrow Bandpass Interference Filter, ideal for fluorescence applications with 85% transmittance and custom sizing options.

Core attributes

Material: B270
Size: 10 mm
Thickness: 1.1 mm
Surface Quality: 60/40
Transmittance: 85%
Filter Type: bandpass
Cwl: 530nm
Coating: iad-pvd
Transmission bands: VIS (400-700 nm)

Product description

The 530nm Narrow Bandpass Interference Filter is designed to enhance fluorescence microscopy and other optical applications by selectively transmitting light within the 400-700 nm range. With a center wavelength of 530 nm and a high transmittance of 85%, this filter effectively blocks unwanted wavelengths, ensuring optimal performance in your imaging systems. Its robust B270 substrate and iad-pvd coating provide durability and reliability for various environmental conditions.

Key Features

Center Wavelength: 530 nm for precise spectral fit in fluorescence applications.
Transmittance: 85% ensures high light throughput for enhanced imaging.
Blocking Depth: OD5 at 300-500 nm & 560-1200 nm minimizes interference from unwanted light.
Surface Quality: 60/40 for optimal optical performance.
Custom Sizing: Available in 10.0 mm x 10.0 mm with a thickness of 1.1 mm.

Available Sizes

Size x Thickness (mm)
10 x 1.1

Specification Summary

Item	Value
Material	B270
Size	10 mm
Thickness	1.1 mm
Surface Quality	60/40
Transmittance	85%
Filter Type	bandpass
Cwl	530nm
Coating	iad-pvd
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	85%; ≥85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Name	530nm Narrow Bandpass Interference Filter
Substrate	B270
Tolerance	+/-0.10mm
Blocking	OD5@300-500nm&560-1200nm

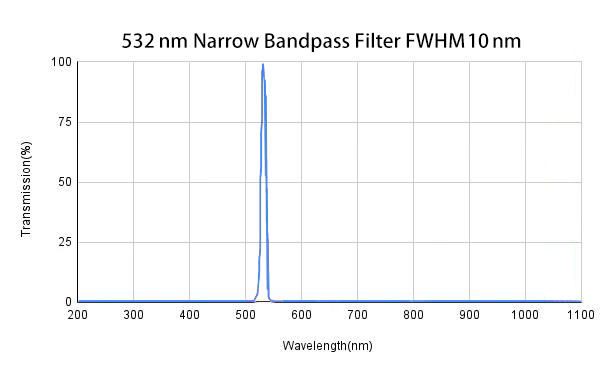

Fwhm	10nm ±3nm

FAQ

Can I get custom sizes?

Yes, custom sizes are available, with standard options including 10.0 mm x 10.0 mm.

What is the tolerance for this filter?

The filter has a tolerance of +/-0.10 mm.
