1 / 6Optical Filters

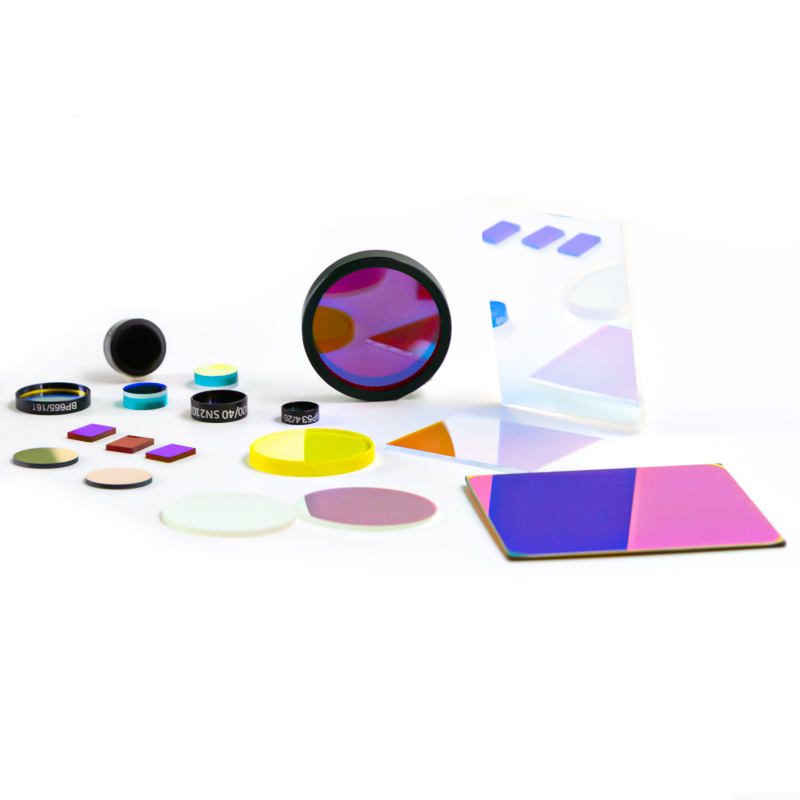

12.5x0.3 mm B270 Optical Filter
Bandpass filter with 85% transmittance, designed for applications below 400 nm, customizable sizes available.
Core attributes
- Material
- B270
- Size
- 12.5 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 380nm
- Coating
- iad-pvd
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- B270
- Size
- 12.5 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 380nm
- Coating
- iad-pvd
- Transmission bands
- UV (<400 nm)
Product description

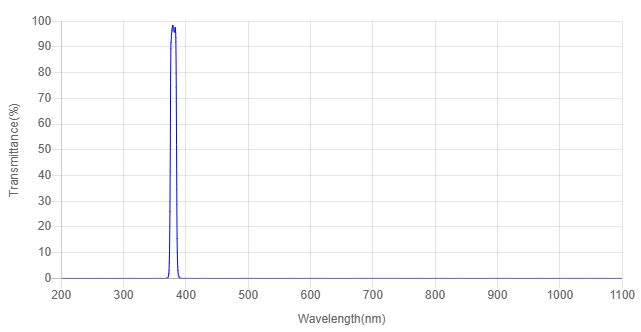

This bandpass filter is designed for applications requiring efficient light transmission below 400 nm, with a center wavelength of 380 nm and a transmittance of 85%. Ideal for fluorescence microscopy and other optical applications, it ensures high performance with minimal loss of signal. The filter is manufactured from B270 glass, offering durability and reliability for various environments, while supporting custom sizes and coatings to meet specific project needs.
Key Features
- Transmittance of 85% ensures effective light passage for optimal imaging.
- Bandpass filter type tailored for applications under 400 nm.
- Manufactured from durable B270 glass for enhanced environmental resistance.
- Customizable options available for OEM, ODM, and OBM projects.
- Surface quality rated at 40/20 for superior optical clarity.
Available Sizes
| Size x Thickness (mm) |
|---|
| 12.5 x 2.6 |
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | 12.5 mm |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 380nm |
| Coating | iad-pvd |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Manufacture | Double sided polishing |
| Materials | B270,JGS1,Quartz Glass,Absorptive Glass |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Yes, custom sizes are available, including the variant size of 12.5 mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible ordering.
