1 / 6Optical Filters

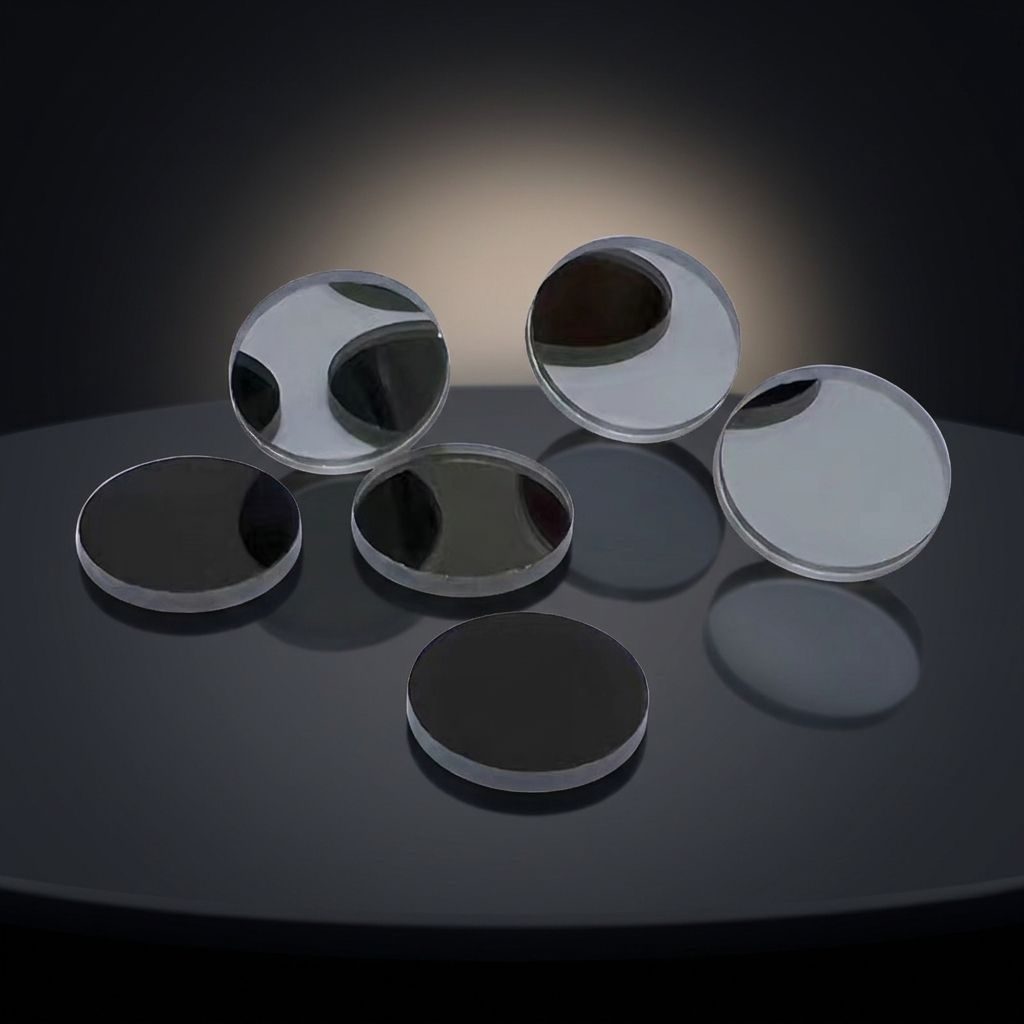

30x0.3 mm B270 Optical Filter, AR Coated
Explore our 1350 nm bandpass filter with 90% transmittance, ideal for medical and beauty-IPL applications.
Core attributes
- Material
- B270
- Size
- 30 mm
- Thickness
- 0.3 mm
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 1350nm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
- MOQ
- 10pcs
Product facts
Key attributes
- Material
- B270
- Size
- 30 mm
- Thickness
- 0.3 mm
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 1350nm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
- MOQ
- 10pcs
Product description
This bandpass filter is designed for applications in medical and beauty-IPL sectors, effectively transmitting light at a center wavelength of 1350 nm with a high transmittance of 90%. It supports a wide range of wavelengths from 200 to 2500 nm, making it suitable for various light sources and detection systems. The filter is available in a standard size of 30 mm with a thickness ranging from 0.3 to 5.0 mm, ensuring versatility in integration.
Key Features
- High transmittance of 90% for optimal light efficiency.
- Customizable wavelength range from 200 to 2500 nm for specific applications.
- Available in a standard size of 30 mm, with thickness options of 0.3 to 5.0 mm.
- OEM and ODM support for tailored solutions.
- Minimum order quantity of 10 pcs ensures accessibility for prototyping.
Available Sizes
| Size x Thickness (mm) |
|---|
| 30 x 2.6 |
Applications
Medical, Beauty Ipl
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | 30 mm |
| Thickness | 0.3 mm |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 1350nm |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | 10pcs |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 98% |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Wavelength | 200-2500nm /Custom |
| Moq | 10pcs |
| Fwhm | 10~80NM |
FAQ
What are the minimum order quantities?
The minimum order quantity is 10 pieces.
Can I get a custom size for this filter?
Yes, custom sizes are available upon request.
