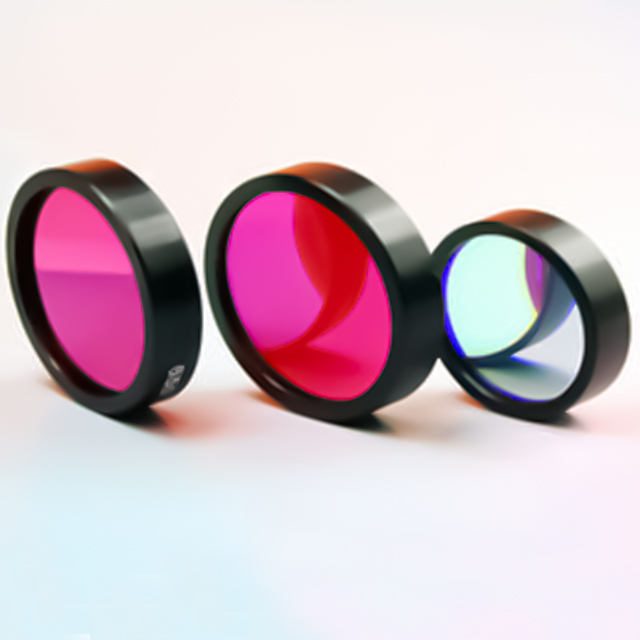

38 mm B270 Optical Filter
Explore our 575 nm bandpass filter with 85% transmittance, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- B270
- Size
- 38 mm
- Thickness
- Custom
- Surface Quality
- 80/50
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 575nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- B270
- Size
- 38 mm
- Thickness
- Custom
- Surface Quality
- 80/50
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 575nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed to enhance fluorescence microscopy and other optical applications by selectively transmitting light in the 400-700 nm range, with a center wavelength of 575 nm and a high transmittance of 85%. It effectively blocks undesired wavelengths with an optical density greater than 2 from 400 to 1200 nm, ensuring optimal performance in various setups. The filter is made from B270 glass and features advanced iad-pvd coatings for durability and reliability in demanding environments.
Key Features
- High transmittance of 85%, ensuring efficient light passage for enhanced imaging.
- Optical density greater than 2 from 400-1200 nm, providing excellent blocking of unwanted wavelengths.
- Customizable support for OEM, ODM, and OBM, allowing tailored solutions for specific applications.
- Surface quality of 80/50, ensuring minimal distortion and high image clarity.
- Tolerance of ± 0.10 mm, ensuring precise fit in various optical systems.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | 38 mm |
| Thickness | Custom |
| Surface Quality | 80/50 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 575nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Transmittance | 85%; T>85%@550-600nm |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD>2@400-1200nm |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Yes, the filter is customizable for specific applications, including different sizes.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing flexibility for small orders.
