1 / 6Optical Filters

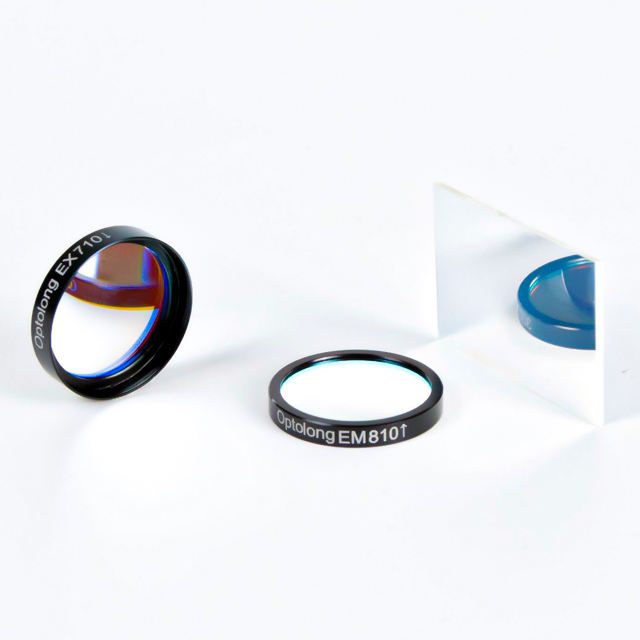

50x1.1 mm B270 Optical Filter
High-performance fluorescence filter with 85% transmittance and customizable sizes for microscopy applications.
Core attributes
- Material
- B270
- Size
- 50 mm
- Thickness
- 1.1 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Cwl
- 340nm
- Coating
- hard-coat

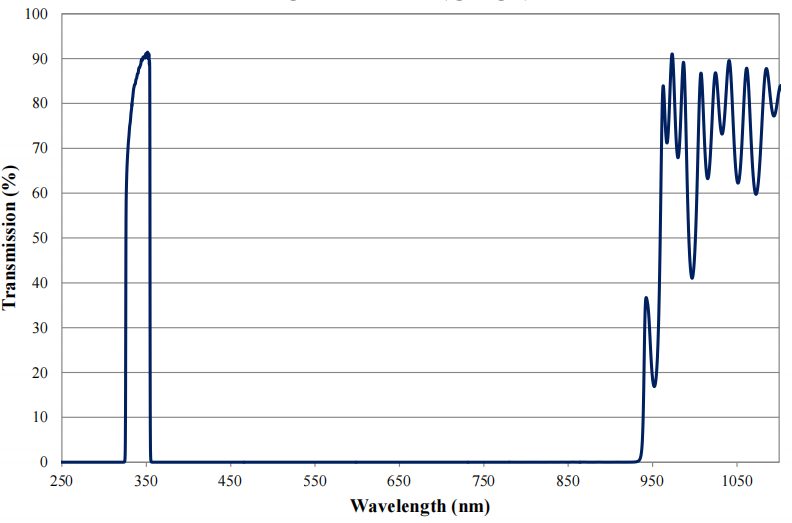

- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- B270
- Size
- 50 mm
- Thickness
- 1.1 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Cwl
- 340nm
- Coating
- hard-coat
- Transmission bands
- UV (<400 nm)
Product description
This filter is designed for applications in fluorescence microscopy, effectively transmitting light below 400 nm with a center wavelength of 340 nm. With a high transmittance of 85%, it ensures optimal light delivery for enhanced imaging quality. The hard-coated B270 material provides durability, making it suitable for demanding environments. Its customizable size options allow for integration into various systems, ensuring compatibility with different setups.
Key Features
- Transmittance of 85% ensures efficient light transmission for fluorescence applications.
- Center wavelength of 340 nm ± 2 nm fits well with common fluorescence excitation sources.
- Hard-coat finish enhances environmental durability and resistance to wear.
- Custom sizes available, accommodating specific project requirements.
- Optical density of OD≥5.0 provides excellent blocking of unwanted wavelengths.
Available Sizes
| Size x Thickness (mm) |
|---|
| 50 x 1.1 |
Applications
Fluorescence, Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | 50 mm |
| Thickness | 1.1 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Cwl | 340nm |
| Coating | hard-coat |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Center Wavelength | 340nm ± 2nm |
| Transmission | >90% |
| Optical Density | OD≥5.0 |
| Angle Of Incidence | 45 ±5 ° |
| Certificate | ISO9001,RoHs,EPR |
FAQ
Can I get custom sizes for this filter?
Yes, custom sizes are available to fit specific application needs.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing flexibility in orders.
