1 / 6Optical Filters

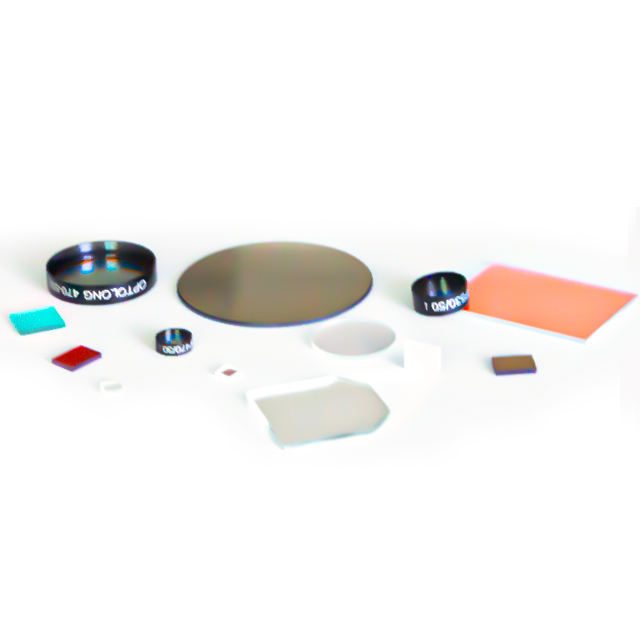

55x0.3 mm B270 Optical Filter
Explore our 950 nm bandpass filter with 85% transmittance, ideal for optical applications in the 0.7-1.7 μm range.
Core attributes
- Material
- B270
- Size
- 55 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 950nm
- Fwhm
- 20nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- B270
- Size
- 55 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 950nm
- Fwhm
- 20nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

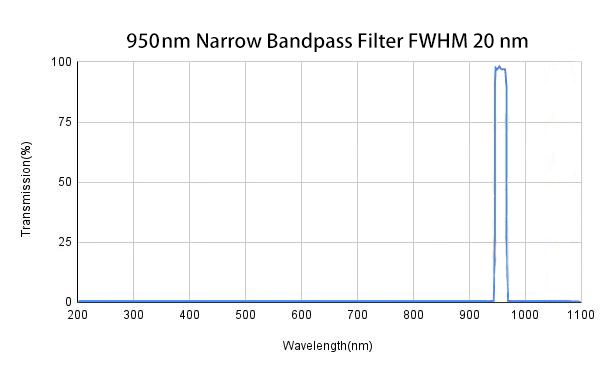

This bandpass filter is designed for applications requiring precise wavelength selection in the 0.7-1.7 μm range, with a center wavelength of 950 nm and a FWHM of 20 nm. Its high transmittance of 85% ensures efficient light throughput, making it suitable for fluorescence microscopy and other optical applications. The filter is constructed from B270 glass with IAD-PVD coating, offering durability and consistent performance across various environmental conditions.
Key Features
- High transmittance of 85% for optimal light efficiency.
- Bandpass filter type tailored for specific wavelength applications.
- Customizable sizes available with a tolerance of ± 0.10 mm.
- Durable IAD-PVD coating enhances environmental resistance.
- Supports OEM, ODM, and OBM for tailored solutions.
Available Sizes
| Size x Thickness (mm) |
|---|
| 55 x 2.6 |
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | 55 mm |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 950nm |
| Fwhm | 20nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Materials | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available sizes for this filter?
The standard size is 55.0 mm with a thickness range of 0.3 to 5.0 mm.
Is custom sizing available?
Yes, custom sizes can be accommodated with a tolerance of ± 0.10 mm.
