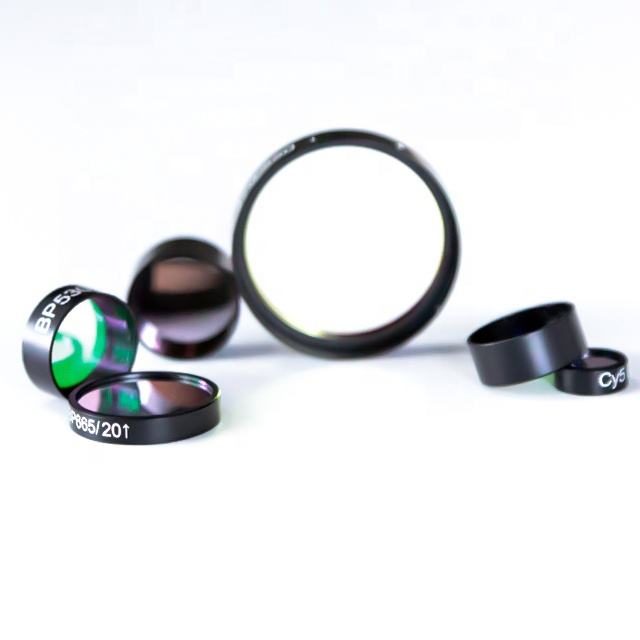

58x0.3 mm B270 Optical Filter

Product description

The B270 bandpass filter is designed for applications requiring high transmittance in the 532 nm wavelength range. With a transmittance of 85% and a blocking density of OD2-OD6, this filter effectively isolates specific wavelengths while minimizing unwanted light interference. Ideal for fluorescence microscopy and other optical applications, it ensures reliable performance and durability, thanks to its IAD-PVD coating. Custom sizes and thicknesses are available, making it suitable for various setups.

Key Features

Transmittance of 85% ensures high light throughput for optimal imaging.
Bandpass filter type effectively isolates the 532 nm wavelength for specific applications.
Custom sizes (58 mm) and thicknesses (0.3 to 5.0 mm) available for tailored solutions.
Durable IAD-PVD coating enhances environmental resistance and longevity.
Manufactured with double-sided polishing for superior surface quality (40/20).

Available Sizes

Size x Thickness (mm)
58 x 2.6

Specification Summary

Item	Value
Material	B270
Size	58 mm
Thickness	0.3 mm
Surface Quality	40/20
Transmittance	85%
Filter Type	bandpass
Cwl	532nm
Coating	iad-pvd
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	85%; >85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Blocking Density	OD2-OD6
Manufacture	Double sided polishing
Materials	B270,JGS1,Quartz Glass,Absorptive Glass
Aoi	0±5°, 0±45°
Certification	ISO9001,RoHs,EPR
Shipment	Express delivery,Air,Sea

FAQ

What custom sizes are available?

Custom sizes include a standard dimension of 58 mm, with thickness options ranging from 0.3 to 5.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement options.
