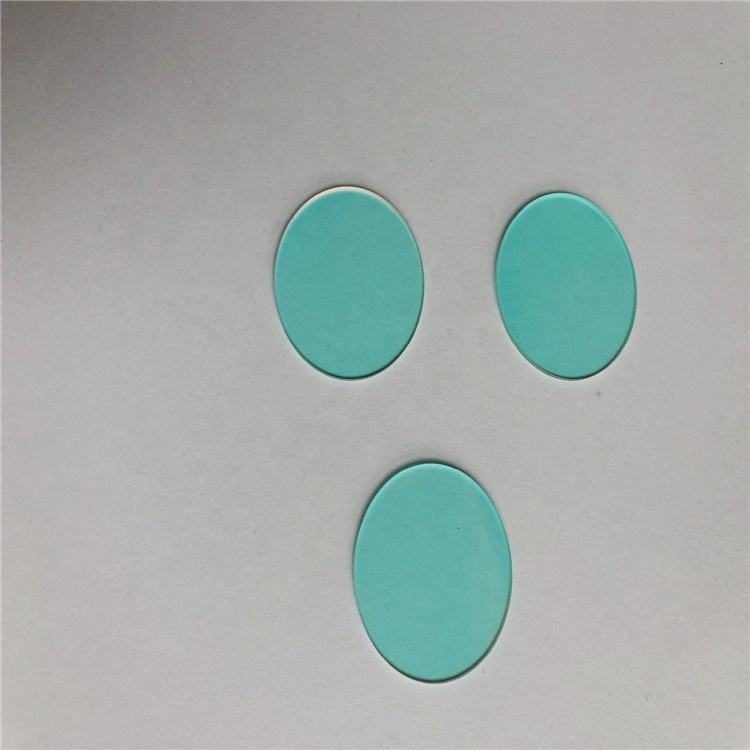

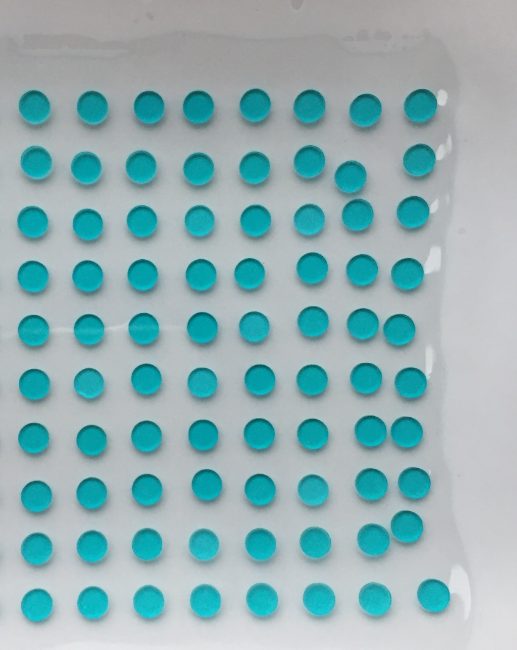

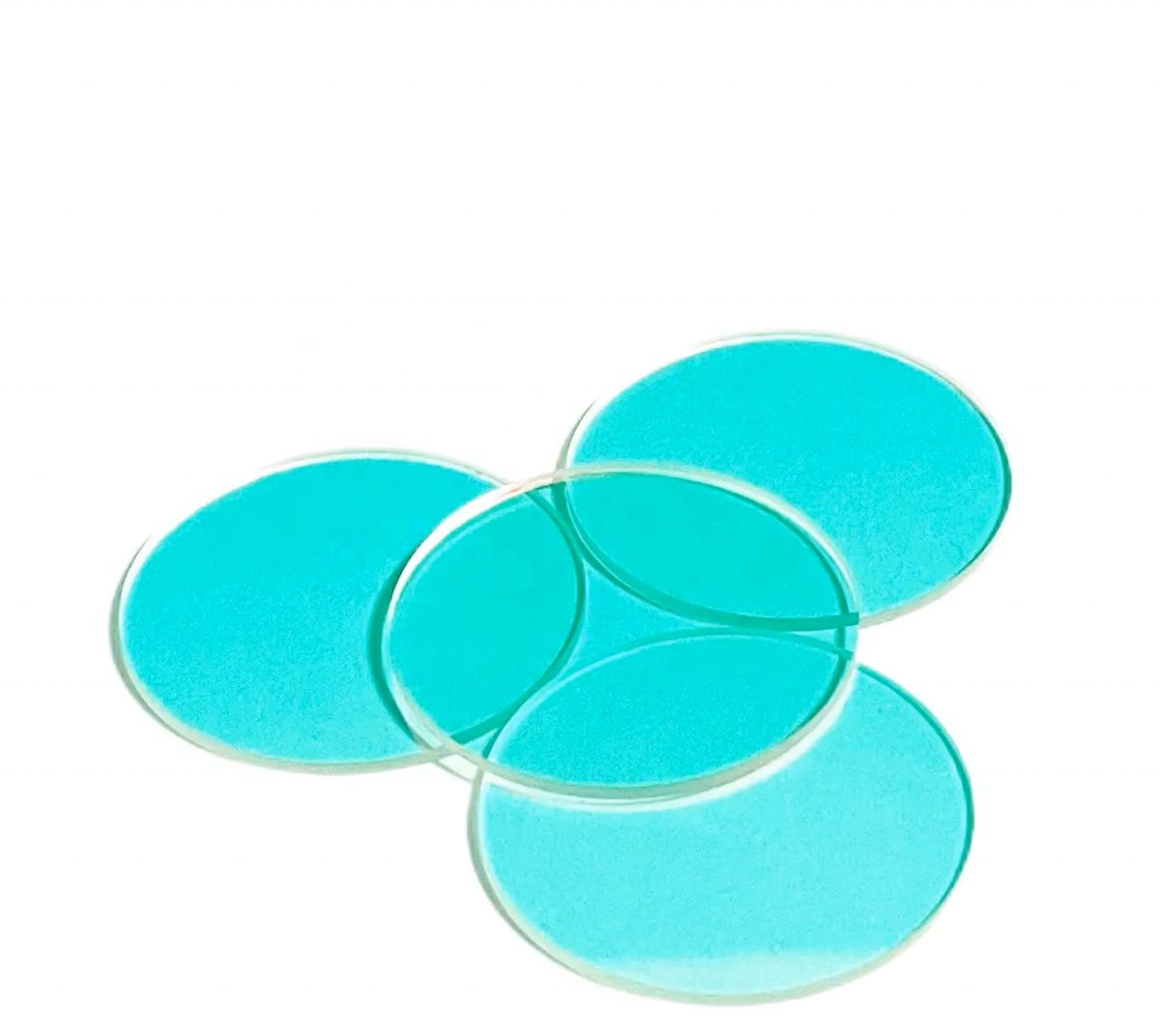

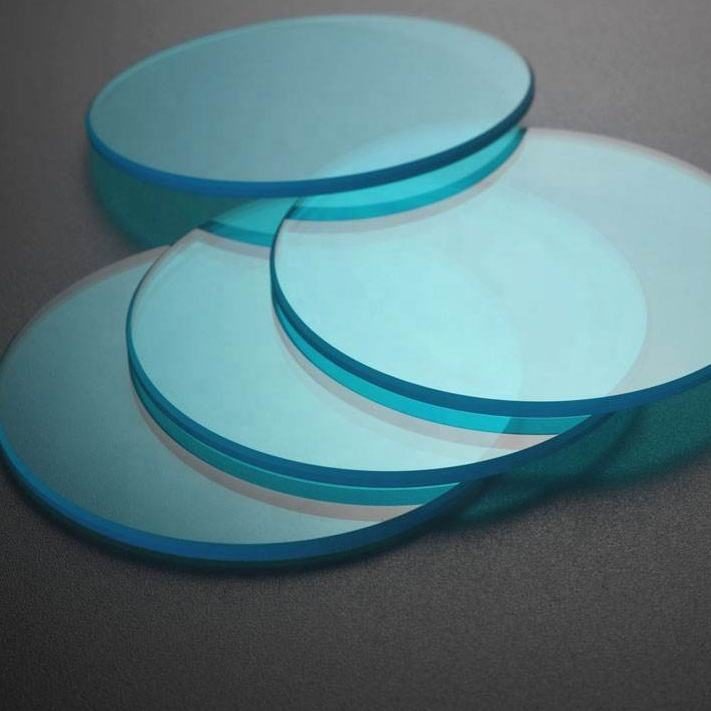

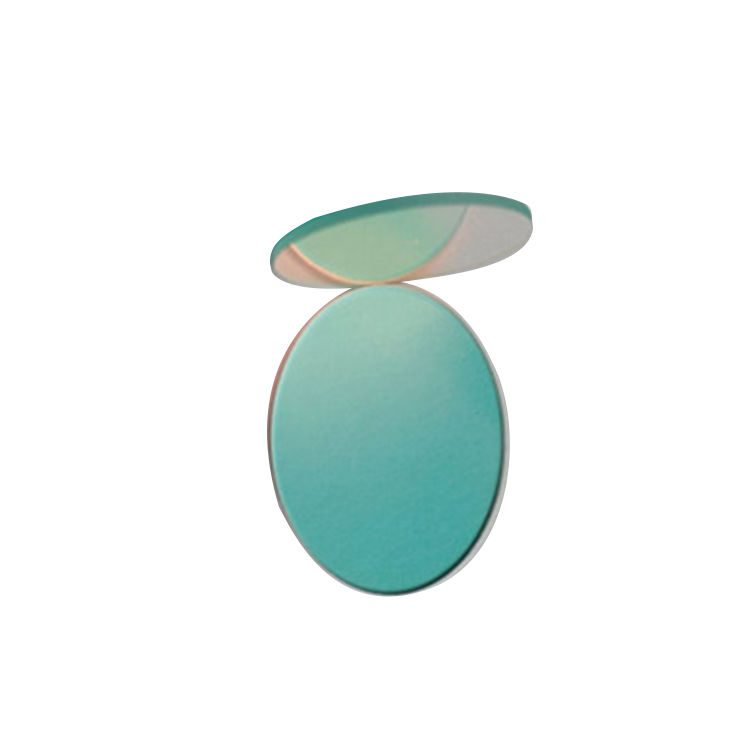

Custom Size B270 Optical Filter, AR Coated
High-performance bandpass filter for machine vision and night vision applications with 95% transmittance and customizable options.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.1 mm
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 850nm
- Coating
- anti-reflective (AR), hard-coat, iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.1 mm
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 850nm
- Coating
- anti-reflective (AR), hard-coat, iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This bandpass filter is designed for applications in machine vision and night vision, effectively separating visible light and near-infrared (NIR) wavelengths. With a center wavelength of 850 nm and high transmittance of 95%, it ensures optimal performance in various imaging systems. The filter provides excellent blocking of unwanted wavelengths, making it ideal for day/night switching without color shift or IR crosstalk. Its hard-coated IAD-PVD construction enhances durability, ensuring reliability in demanding environments.
Key Features
- Center wavelength at 850 nm for NIR applications, ensuring precise imaging.
- Transmittance of 95% for maximum light throughput.
- OD ≥ 4 blocking depth from 700 nm to 800 nm, minimizing interference.
- Customizable size and thickness options available for specific needs.
- Durable hard coating for enhanced environmental resistance.
Applications
Machine Vision, Night Vision
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | 0.1 mm |
| Transmittance | 95% |
| Filter Type | bandpass |
| Cwl | 850nm |
| Coating | anti-reflective (AR), hard-coat, iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Wavelength | visible light pass+850nm pass |
| Flatness | 1/4 Wavefront |
| Tolerance | 0.02mm |
FAQ
Can I get custom sizes and thicknesses?
Yes, the filter can be customized in size and thickness to meet specific application requirements.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible purchasing options.
