1 / 6Optical Filters

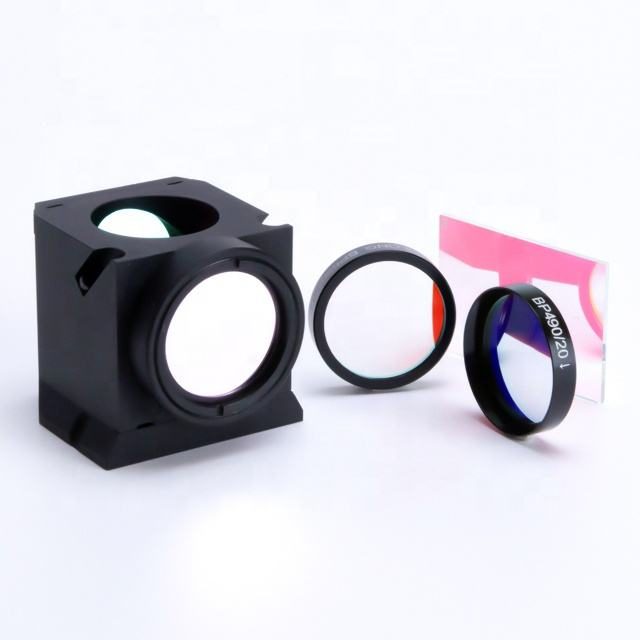

Custom Size B270 Optical Filter
Explore our bandpass filter for fluorescence and microscopy with 85% transmittance and customizable options.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Coating
- iad-pvd
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Coating
- iad-pvd
Product description
This bandpass filter is designed for applications in fluorescence and microscopy, providing a transmittance of 85% to enhance signal clarity while effectively blocking unwanted wavelengths. Ideal for researchers and engineers, it offers reliable performance with a blocking density of OD2-OD6. The filter is crafted from B270 glass with IAD-PVD coating, ensuring durability and consistent quality for demanding environments.
Key Features
- Transmittance of 85% enhances signal clarity for fluorescence applications.
- Blocking density of OD2-OD6 ensures effective suppression of unwanted wavelengths.
- Available thicknesses from 0.3 mm to 5.0 mm for versatile application fit.
- Customizable options include OEM, ODM, and OBM support for tailored solutions.
- Surface quality rated at 40/20 for optimal performance in precision applications.
Applications
Fluorescence, Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Coating | iad-pvd |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Materials | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are available, with a thickness range from 0.3 mm to 5.0 mm.
What is the tolerance for this filter?
The tolerance for the filter is ± 0.10 mm.
