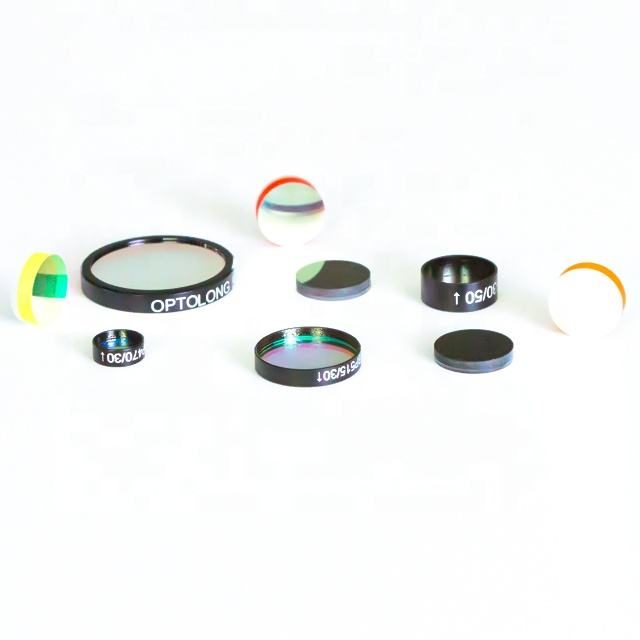

Custom Size B270 Optical Filter
High transmittance optical filter at 820 nm, ideal for fluorescence microscopy and thermal imaging with customizable options.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Cwl
- 820nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Cwl
- 820nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

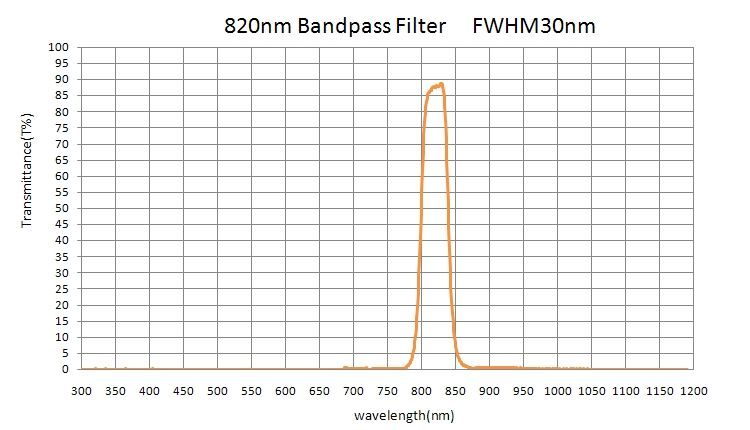

This optical filter is designed for applications requiring high transmittance in the near-infrared range, specifically around 820 nm. With a transmittance of 85% and a blocking density of OD2-OD6, it effectively minimizes unwanted light while allowing significant signal transmission. The filter is ideal for fluorescence microscopy, gas sensing, and thermal imaging applications, ensuring reliable performance in demanding environments.
Key Features
- Transmittance of 85% ensures high signal clarity for precise measurements.
- Available in thicknesses from 0.3 mm to 5.0 mm for versatile application needs.
- Customizable options include OEM, ODM, and OBM support for tailored solutions.
- Surface quality rated at 40/20 guarantees minimal optical distortion.
- Durable materials like B270 ensure reliability in various environmental conditions.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Cwl | 820nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Materials | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Yes, customizable options are available, including OEM, ODM, and OBM support.
What is the tolerance for this filter?
The tolerance for this filter is ± 0.10 mm.
