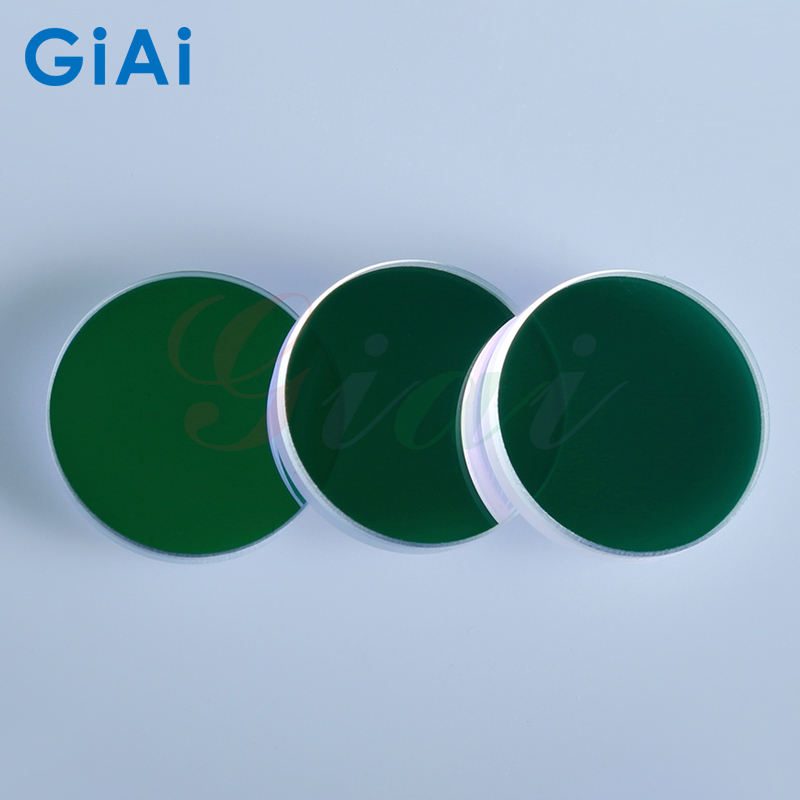

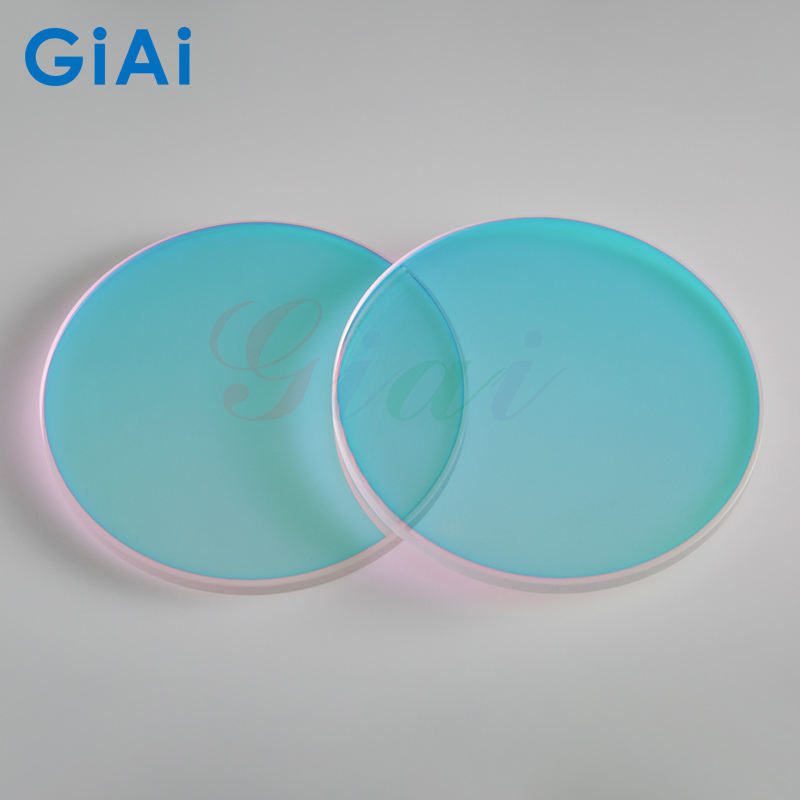

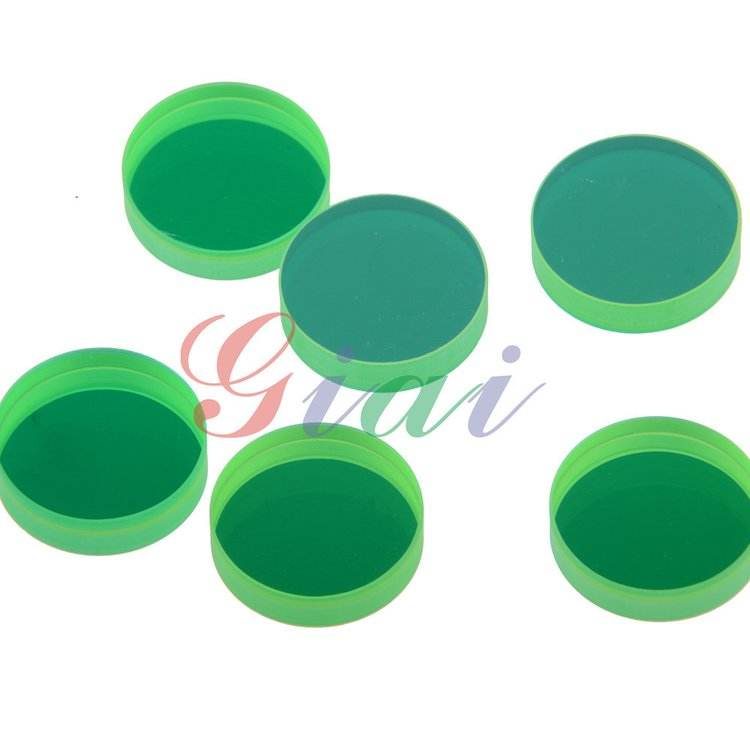

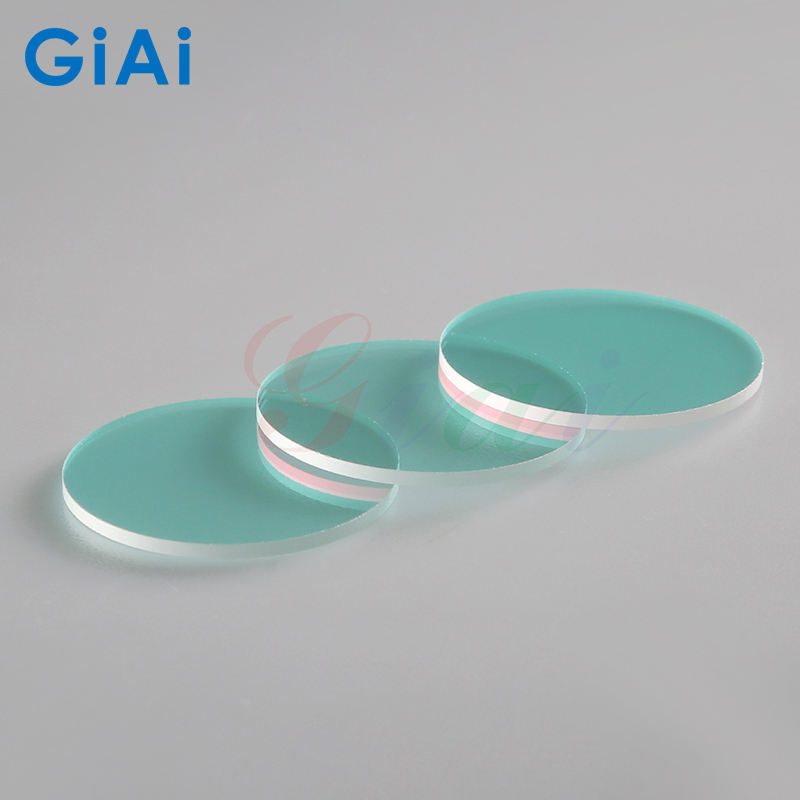

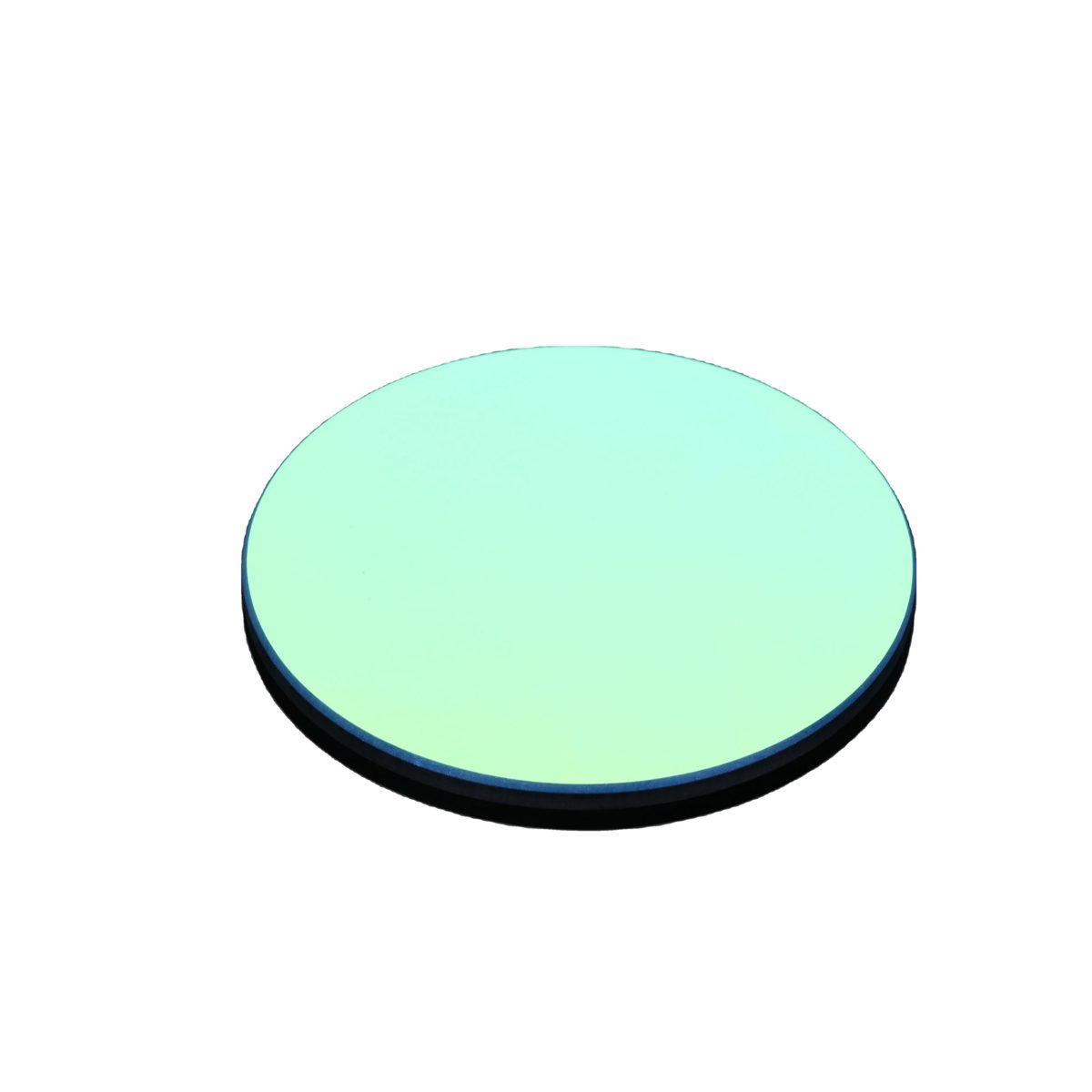

Custom Size B270 Optical Filter
B270 bandpass filter with 90% transmittance, ideal for 365 nm applications. Customizable thickness and high durability.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 365nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 365nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
The B270 bandpass filter is designed for applications requiring precise wavelength selection around 365 nm, with a high transmittance of 90%. Ideal for fluorescence microscopy and other optical applications, this filter effectively blocks unwanted wavelengths, ensuring optimal signal clarity. With a customizable thickness ranging from 0.3 mm to 4.0 mm, it meets diverse application needs while maintaining high durability through its IAD-PVD coating.
Key Features
- High transmittance of 90% ensures maximum light throughput.
- Bandpass filter type specifically targets wavelengths around 365 nm.
- Customizable thickness options (0.3 mm to 4.0 mm) for various applications.
- Effective blocking with OD2-OD6 for unwanted wavelengths.
- Clear aperture greater than 95% for enhanced performance.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | 0.3 mm |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 365nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 year |
| Transmission | 10%-95% |
| Fwhm | 8-32nm |
| Blocking | OD2-OD6 |
| Clear Aperture | >95% of total coating area |
FAQ
What thickness options are available?
Thickness options range from 0.3 mm to 4.0 mm.
Is custom sizing available?
Yes, the filter can be customized to meet specific application requirements.
