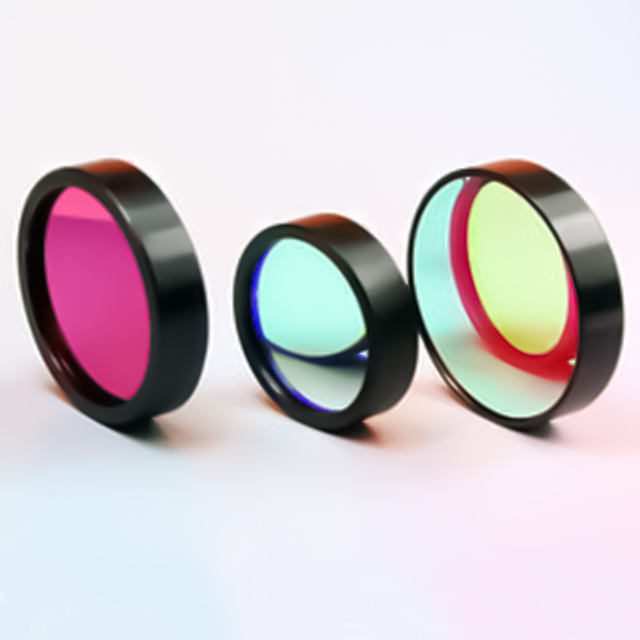

Custom Size B270 Optical Filter
Explore our 800 nm bandpass filter with 85% transmittance, ideal for fluorescence and life sciences applications.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed to enhance optical performance in applications requiring precise wavelength selection in the 0.7-1.7 μm range. With a center wavelength of 800 nm and a transmittance of 85%, it effectively isolates desired wavelengths while minimizing unwanted light. Ideal for fluorescence microscopy, life sciences, and gas sensing, this filter ensures optimal signal clarity and sensitivity.
Key Features
- Center wavelength of 800 nm for targeted optical applications.
- Transmittance of 85% ensures high light throughput.
- Available thicknesses of 0.3 mm to 5.0 mm for versatile integration.
- Customizable options including OEM, ODM, and OBM support.
- Durable coatings with OD2-OD6 blocking density for enhanced performance.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 800nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Manufacture | Double sided polishing |
| Materials | B270,JGS1,Quartz Glass,Absorptive Glass |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM, ODM, and OBM support.
What are the tolerances for thickness?
The filter thickness options range from 0.3 mm to 5.0 mm.
