1 / 6Optical Filters

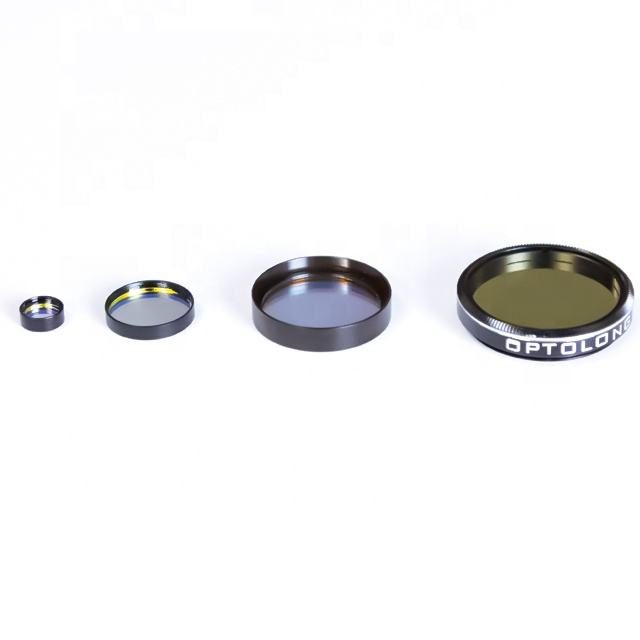

Custom Size B270 Optical Filter
High transmittance optical filter at 600 nm, customizable with OEM support, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Cwl
- 600nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Cwl
- 600nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
This optical filter is designed for applications requiring high transmittance in the visible spectrum, specifically centered at 600 nm. With a transmittance of 85%, it effectively allows light to pass through while blocking unwanted wavelengths, making it suitable for fluorescence microscopy and other optical applications. The filter is made from B270 glass and features advanced iad-pvd coatings, ensuring durability and performance consistency in various environments.
Key Features
- Transmittance of 85% ensures effective light passage for optimal imaging.
- Customizable with OEM, ODM, and OBM support for tailored solutions.
- Available thicknesses from 0.3 mm to 5.0 mm to fit specific applications.
- Double-sided polishing enhances surface quality and performance.
- Blocking density of OD2-OD6 for effective attenuation of unwanted wavelengths.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Cwl | 600nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Manufacture | Double sided polishing |
| Blocking Density | OD2-OD6 |
| Materials | B270,JGS1,Quartz Glass,Absorptive Glass |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Yes, the filter is customizable with OEM, ODM, and OBM support.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
