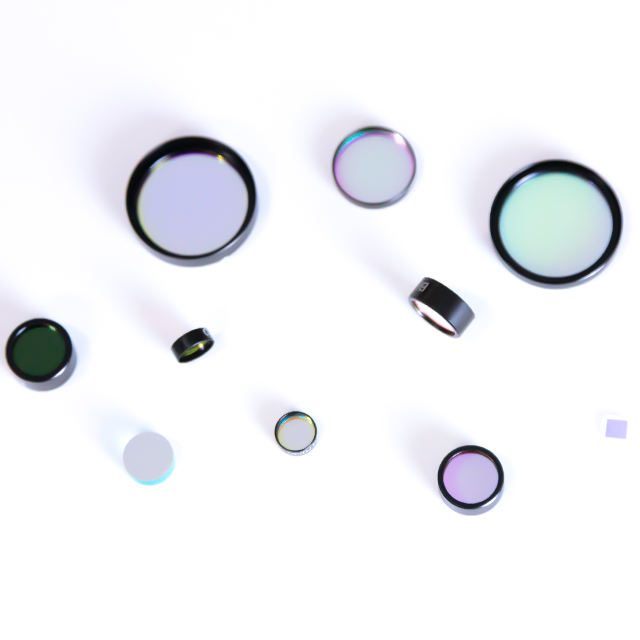

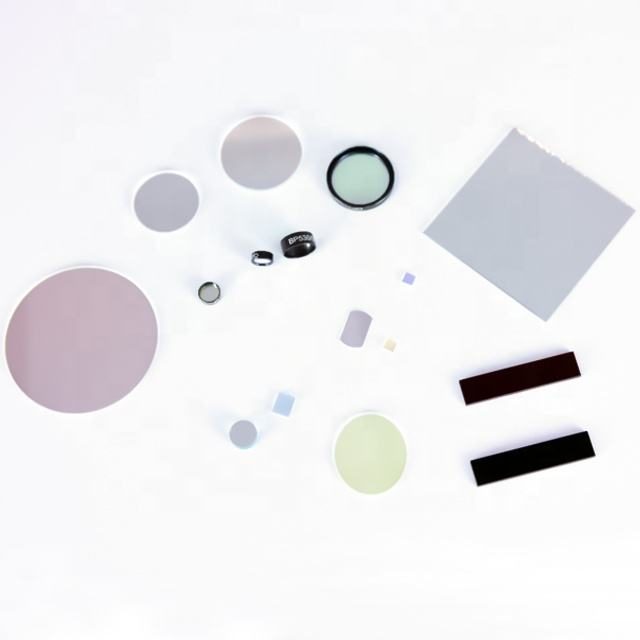

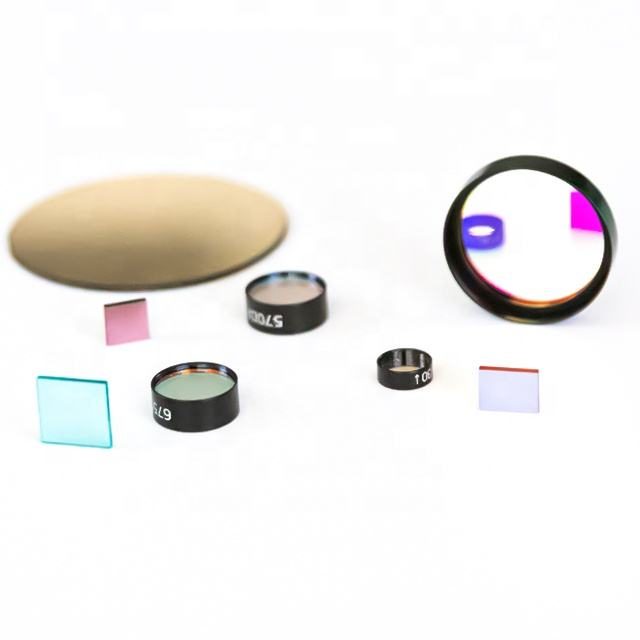

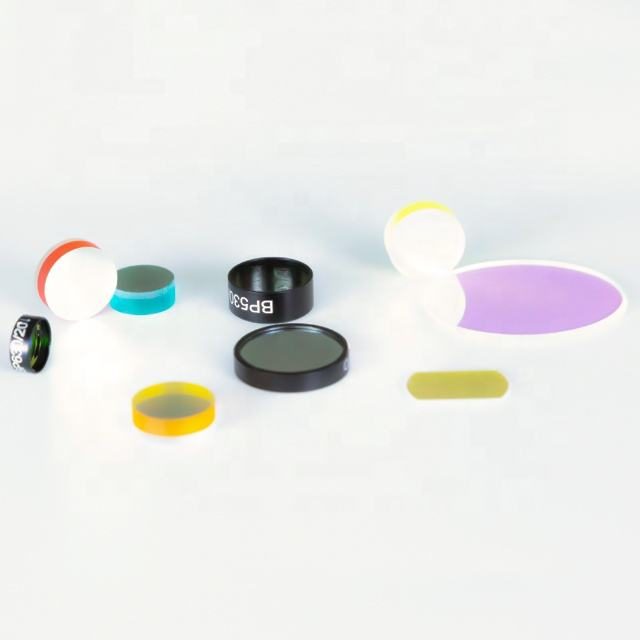

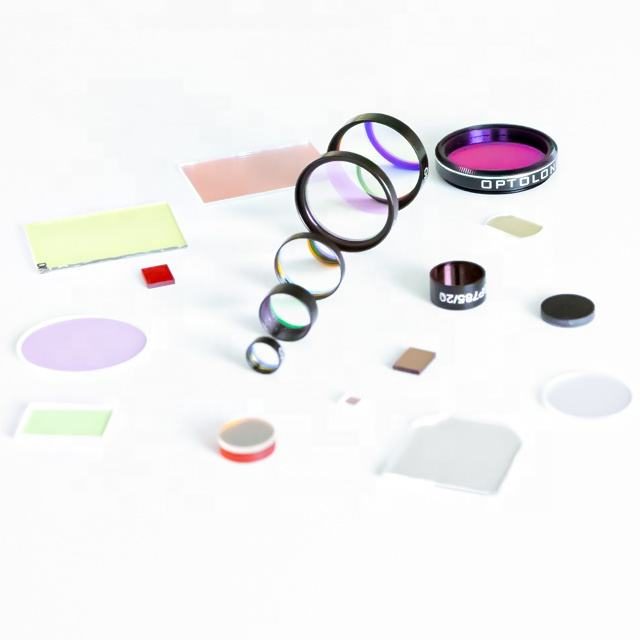

Custom Size B270 Optical Filter
B270 bandpass filter with 85% transmittance, 405 nm center wavelength, customizable thickness for optical applications.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 405nm
- Fwhm
- 15nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 405nm
- Fwhm
- 15nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
The B270 bandpass filter is designed for applications requiring precise wavelength selection, particularly in the 400-700 nm range. With a center wavelength of 405 nm and a full width at half maximum (FWHM) of 15 nm, this filter effectively transmits 85% of light while blocking unwanted wavelengths. Ideal for fluorescence microscopy and other optical applications, it ensures high performance and reliability.
Key Features
- 85% transmittance ensures optimal light throughput for enhanced imaging.
- FWHM of 15 nm provides precise wavelength selection for various applications.
- Customizable thickness options (0.3 to 5.0 mm) to fit specific system requirements.
- Available in single-sided or double-sided coatings for tailored performance.
- Manufactured from B270 glass, ensuring durability and consistent quality.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 405nm |
| Fwhm | 15nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Materials | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available thickness options?
Thickness options range from 0.3 mm to 5.0 mm.
Can I get custom sizes?
Custom sizes are available through OEM, ODM, and OBM support.
