1 / 6Optical Filters

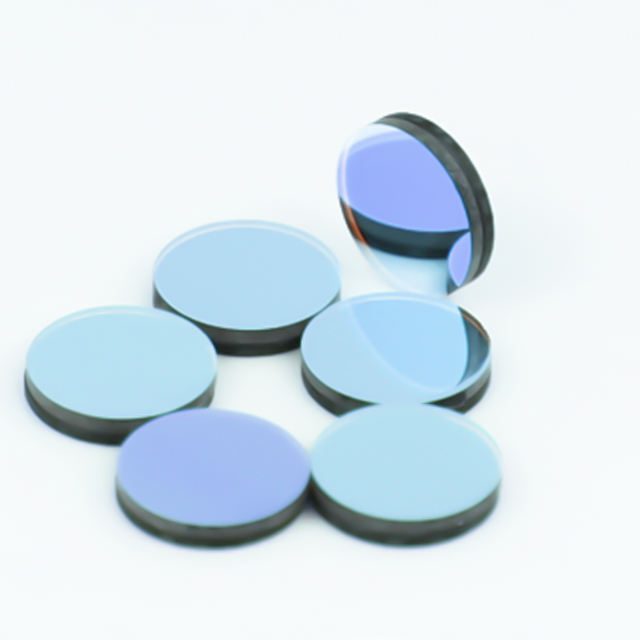

Custom Size B270 Optical Filter
Shortpass filter with 85% transmittance, ideal for fluorescence microscopy. Custom sizes available.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 500nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 500nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description

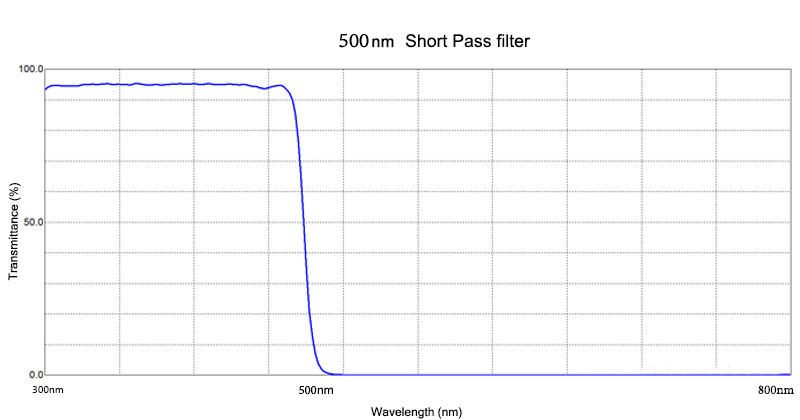

This shortpass filter is designed for applications requiring effective light blocking beyond 500 nm, making it ideal for fluorescence microscopy and other optical systems. With a high transmittance of 85% in the 400-700 nm range, it ensures optimal performance while minimizing unwanted wavelengths. Crafted from B270 glass and featuring IAD-PVD coatings, this filter provides durability and reliability in various environments.
Key Features
- Transmittance of 85% ensures high light throughput for effective imaging.
- Shortpass filter type effectively blocks wavelengths above 500 nm, ideal for fluorescence applications.
- Available thicknesses from 0.3 mm to 5.0 mm for versatile integration into optical systems.
- Surface quality rated at 40/20 for minimal distortion and high clarity.
- Customizable options available, including OEM and ODM support for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | shortpass |
| Cwl | 500nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Materials | B270,D263T,N-BK7,H-K9,Quartz Glass,Float glass,Color glass |
| Tolerance | ± 0.10mm |
| Blocking Density | OD2-OD4 |
| Certification | ISO9001,RoHS,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Yes, custom sizes are supported with a tolerance of ± 0.10 mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible procurement.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
