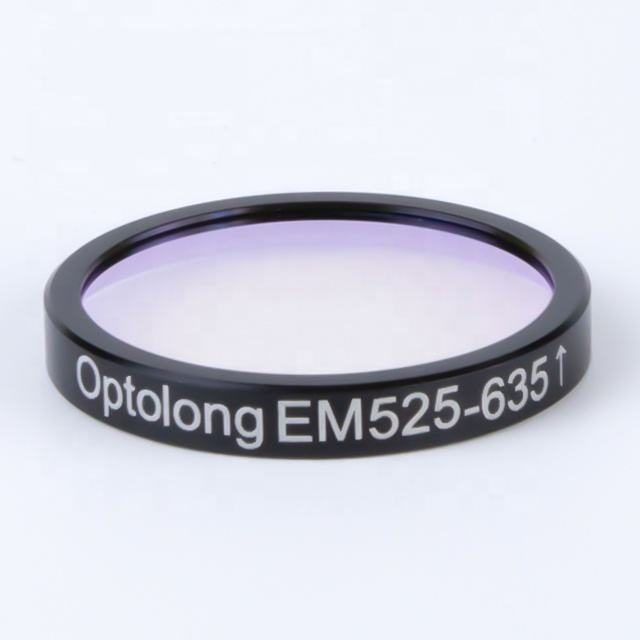

Custom Size B270 Optical Filter

Product description

This optical filter is designed for fluorescence applications, providing an excellent transmittance of 85% to enhance signal detection. Made from B270 glass and featuring advanced iad-pvd coatings, it ensures durability and performance. With a blocking density ranging from OD2 to OD6, it effectively minimizes unwanted light interference. This filter is suitable for various experimental setups and can be customized to meet specific requirements.

Key Features

Transmittance of 85% enhances fluorescence signal detection.
Available thicknesses from 0.3 mm to 5.0 mm for versatile applications.
Blocking density of OD2-OD6 minimizes unwanted light interference.
Customizable options including OEM, ODM, and OBM support.
Surface quality rated at 40/20 for high optical performance.

Applications

Fluorescence

Specification Summary

Item	Value
Material	B270
Size	Custom
Thickness	0.3 mm
Surface Quality	40/20
Transmittance	85%
Coating	iad-pvd

Full Specifications

Parameter	Value
Transmittance	85%; >85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Coating Region	Single-sided or double-sided
Blocking Density	OD2-OD6
Materials	B270,JGS1,Quartz Glass,Absorptive Glass
Tolerance	± 0.10mm
Certification	ISO9001,RoHs,EPR
Shipment	Express delivery,Air,Sea

FAQ

What are the available thicknesses for this filter?

The filter is available in thicknesses ranging from 0.3 mm to 5.0 mm.

Can I get a custom size for this filter?

Yes, the filter can be customized with OEM, ODM, and OBM support.
