1 / 6Optical Filters

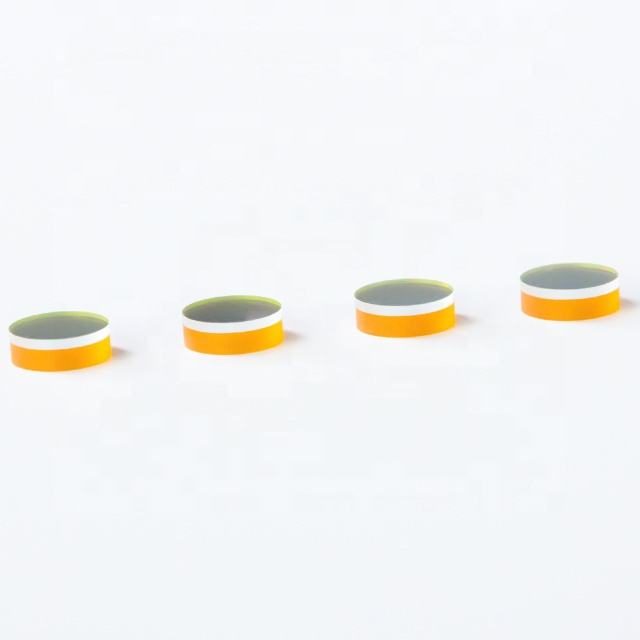

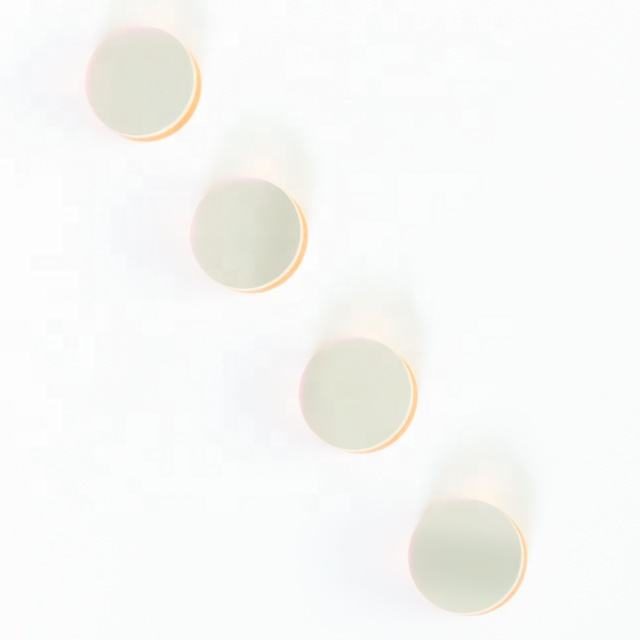

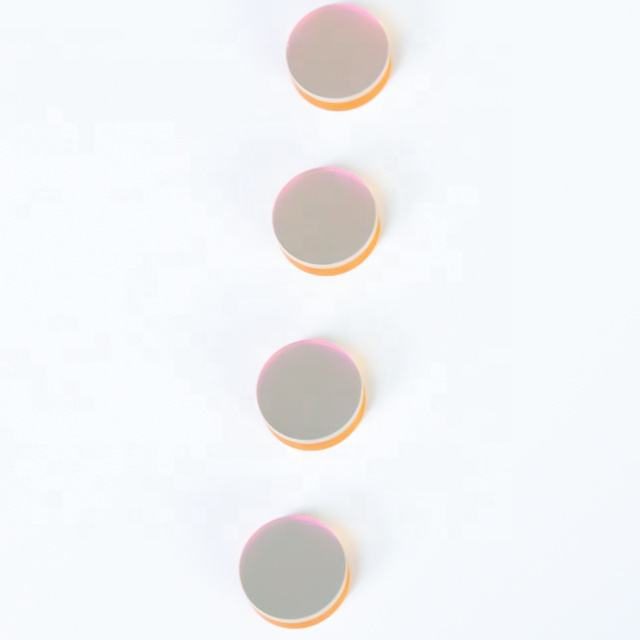

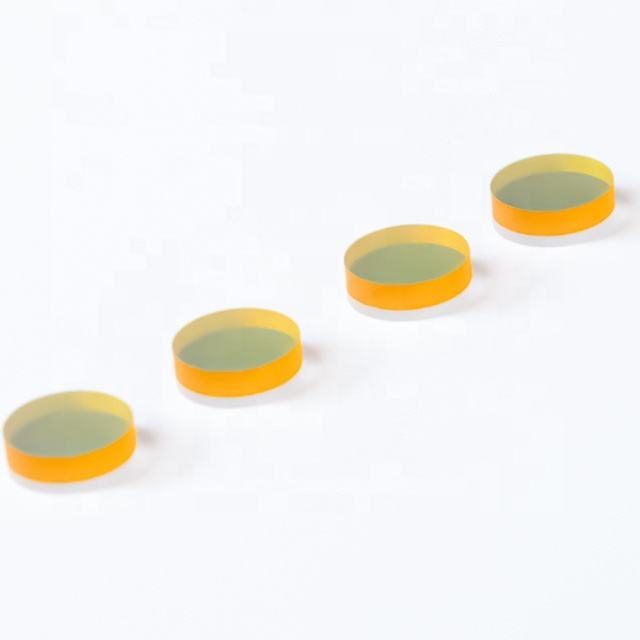

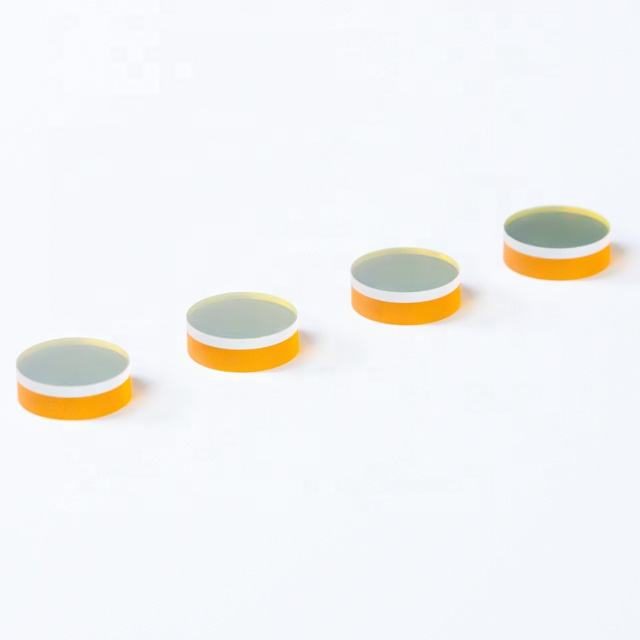

Custom Size B270 Optical Filter
High-performance bandpass filter with 85% transmittance, customizable for laser applications. Available in various thicknesses.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- 2 mm
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 780nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- 2 mm
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 780nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed for laser applications, effectively transmitting light within the 780 nm center wavelength range while blocking unwanted wavelengths. With a transmittance of 85%, it ensures optimal performance in fluorescence microscopy and other laser-based systems. The filter is made from B270 glass and features IAD-PVD coatings for enhanced durability and performance. Custom sizes and thicknesses are available, making it suitable for various setups.
Key Features
- Transmittance of 85% ensures high light throughput for laser applications.
- Center wavelength of 780 nm optimized for specific laser sources.
- Customizable thickness options of 2.0 mm and 5.0 mm for application flexibility.
- Steeper slope enhances the filter’s performance in blocking unwanted wavelengths.
- Supports OEM, ODM, and OBM for tailored solutions.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | 2 mm |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 780nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Slope | Steeper |
| Tolerance | ±0.2 mm |
| Aoi | Can be customized |
| Customized | Yes |

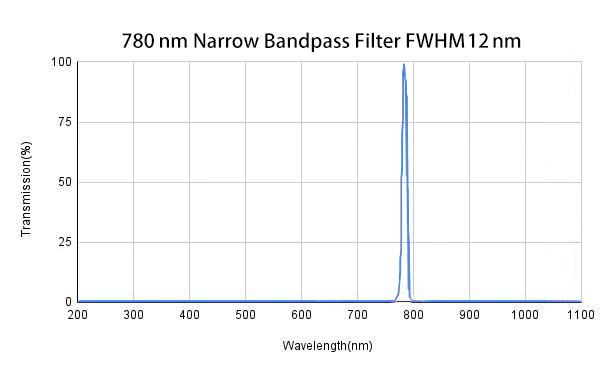

| Fwhm | 12nm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What custom sizes are available?
Custom sizes can be accommodated; please inquire for specific requirements.
What is the tolerance for this filter?
The tolerance is ±0.2 mm, ensuring precise fit in your application.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
