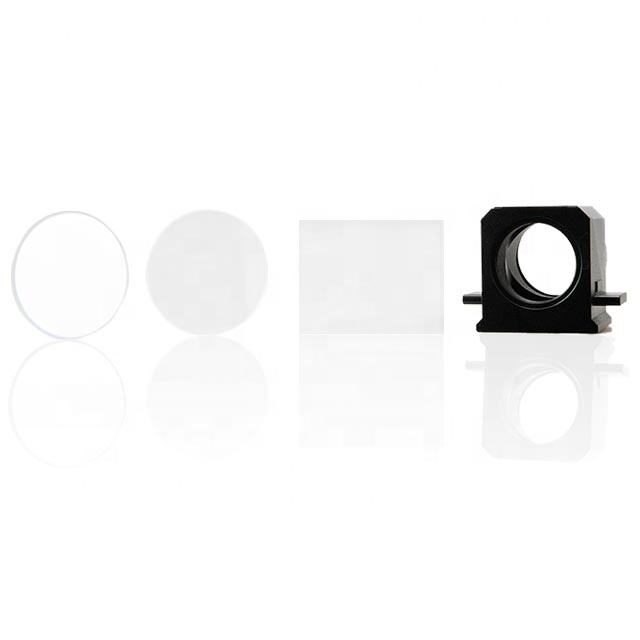

Custom Size B270 Optical Filter

Product description

The longpass filter with a center wavelength of 750 nm is ideal for applications in fluorescence and microscopy. It effectively transmits light above its cutoff wavelength while blocking shorter wavelengths, ensuring optimal signal clarity and contrast. With a high transmittance of 85%, this filter enhances the performance of your optical systems, making it suitable for various research and industrial applications.

Key Features

Center wavelength of 750 nm for effective fluorescence detection.
85% transmittance ensures high light throughput for enhanced imaging.
Hard-coat finish for improved environmental durability.
Compatible with a variety of applications, including microscopy.
Customizable options available for angle of incidence and sizes.

Applications

Fluorescence, Microscopy

Specification Summary

Item	Value
Material	B270
Size	Custom
Thickness	Custom
Surface Quality	60/40
Transmittance	85%
Filter Type	longpass
Cwl	750nm
Coating	hard-coat

Full Specifications

Parameter	Value
Transmittance	85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Center Wavelength	300-1200 nm(select available)
Substrate	B270
Aoi	Can be customized
Certification	ISO9001,RoHs,EPR

FAQ

Can I get custom sizes for this filter?

Yes, customization options are available for angle of incidence and sizes.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
