Custom Size B270 Optical Filter
Explore the 905nm IR Narrow Band Pass Filter for precise wavelength selection with high transmission and superior blocking capabilities.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- Custom
- Filter Type
- bandpass
- Cwl
- 905nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- Custom
- Filter Type
- bandpass
- Cwl
- 905nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

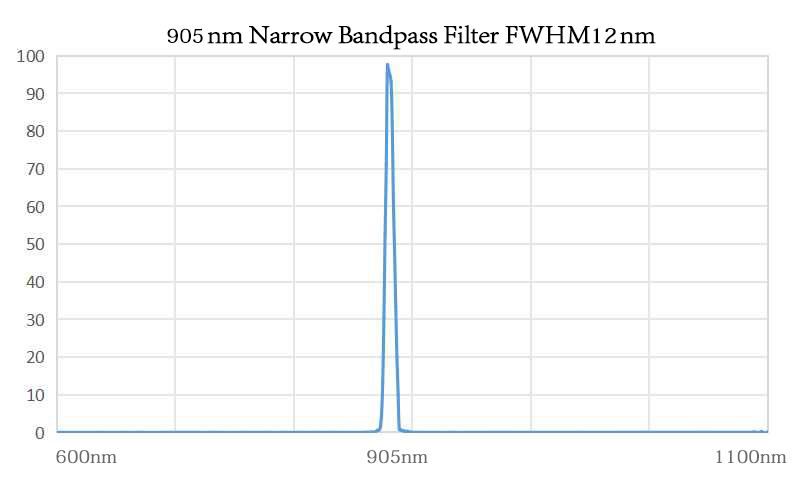

The 905nm IR Narrow Band Pass Filter is designed for applications requiring precise wavelength selection in the infrared spectrum. With a center wavelength of 905nm and a peak transmission greater than 85%, this filter effectively isolates the desired wavelength while blocking unwanted light from 300-1100nm. It is ideal for fluorescence microscopy, gas sensing, and thermal imaging applications, ensuring reliable performance and high-quality results.
Key Features
- Center wavelength at 905nm for optimal spectral fit in IR applications.
- Peak transmission greater than 85% ensures efficient light throughput.
- OD>4 across the blocking band (300-1100nm) for superior light rejection.
- Hard-coated for enhanced durability and environmental resistance.
- Custom sizes available to meet specific application requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | Custom |
| Filter Type | bandpass |
| Cwl | 905nm |
| Coating | hard-coat |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Filter Type | 905nm IR narrow Band Pass Filter |
| Coating Type | Hard Coated |
| Scratch-Dig | 60/40 |
| Center Wavelength | 905nm |
| Tolerance | ±2nm |
| Peak Transmission(Tp) | >85% |
| Blocking Band | OD>4,300-1100nm |
FAQ
Can I get custom sizes?
Yes, custom sizes are available to fit specific application needs.
What is the tolerance for the center wavelength?
The tolerance for the center wavelength is ±2nm.
