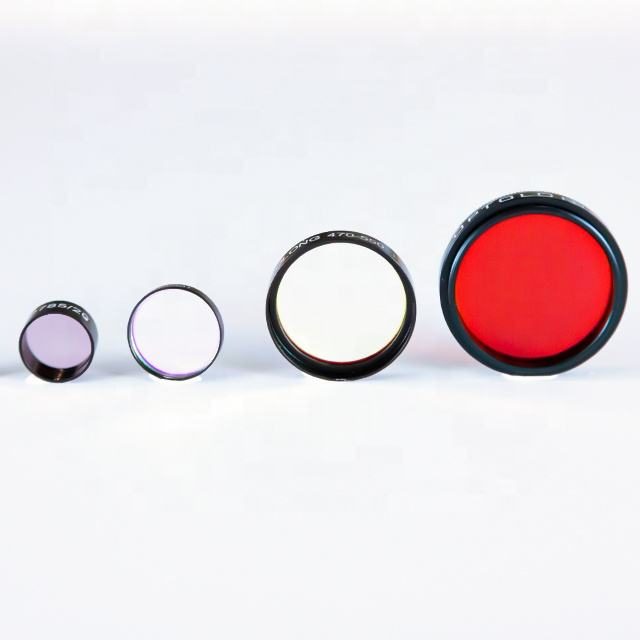

Custom Size B270 Optical Filter
940nm IR Narrow BandPass Filter for night-vision applications with >85% transmission and OD>3 blocking.
Core attributes
- Material
- B270
- Size
- Custom
- Thickness
- Custom
- Filter Type
- bandpass
- Cwl
- 940nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- B270
- Size
- Custom
- Thickness
- Custom
- Filter Type
- bandpass
- Cwl
- 940nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

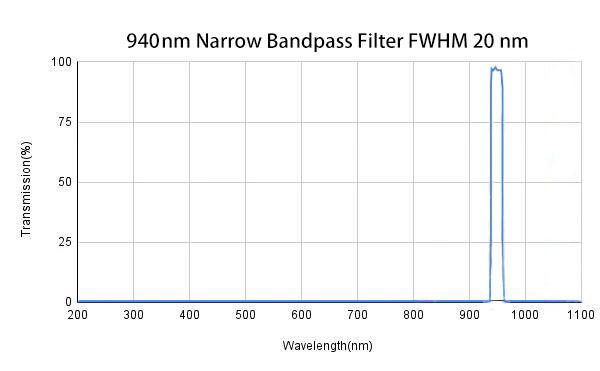

The 940nm IR Narrow BandPass Filter is designed for night-vision applications, effectively isolating the 940nm wavelength while blocking unwanted light. With a peak transmission of over 85%, this filter ensures optimal performance in low-light conditions. Its robust design features a blocking band of OD>3 from 400-1100nm, making it ideal for environments where infrared detection is critical.
Key Features
- Center wavelength at 940nm for precise spectral fit in night-vision systems.
- Peak transmission greater than 85% ensures high efficiency and clarity.
- Blocking band of OD>3 from 400-1100nm prevents interference from unwanted wavelengths.
- Tolerance of ±3nm guarantees consistent performance across batches.
- Customized support available for OEM, ODM, and OBM projects.
Applications
Night Vision
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Size | Custom |
| Thickness | Custom |
| Filter Type | bandpass |
| Cwl | 940nm |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Filter Type | 940nm IR Narrow BandPass Filter |
| Center Wavelength | 940nm |
| Tolerance | ±3nm |
| Peak Transmission(Tp) | >85% |
| Blocking Band | OD>3,400-1100nm |
| Scratch-Dig | 60/40 |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are available to meet specific application requirements.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
