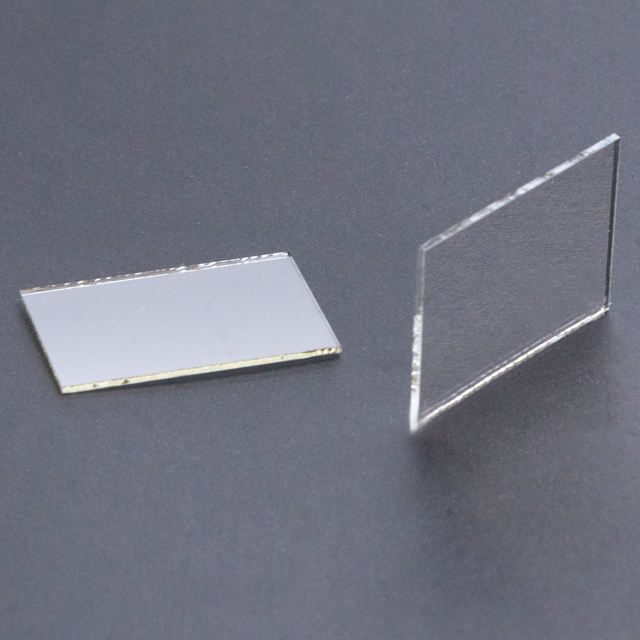

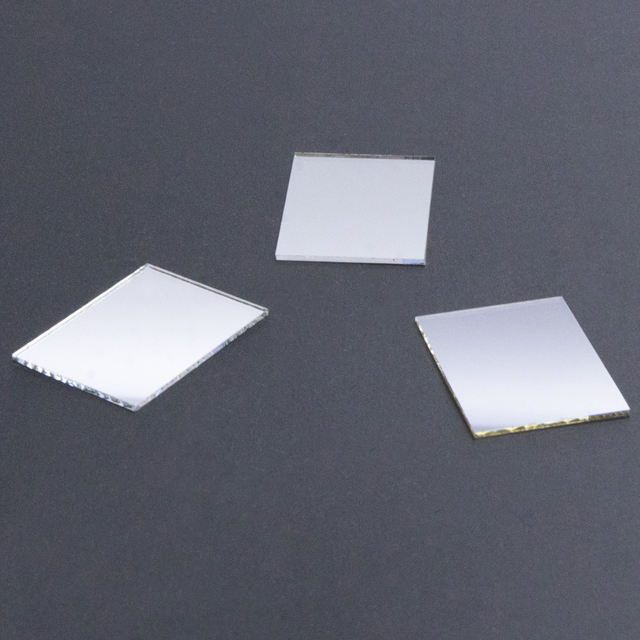

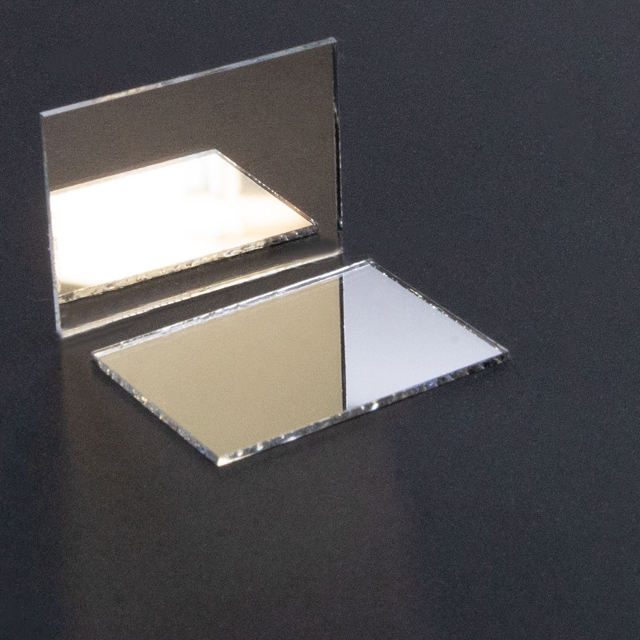

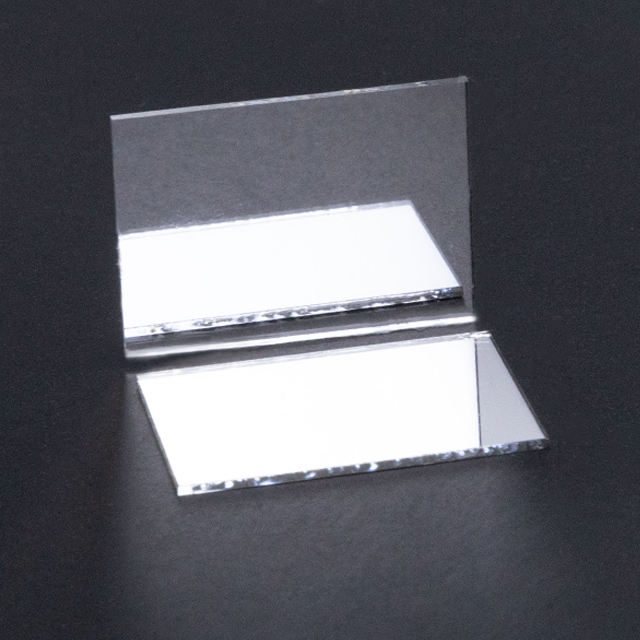

3x0.1 mm B270 Optical Mirror

Product description

This high-performance mirror, made from B270 glass with an IAD-PVD coating, offers exceptional reflectivity of over 97%. Ideal for applications requiring high reflectance and surface quality, it ensures minimal light loss and optimal performance in various optical systems. With a compact size of 3.0 mm and a thickness of 0.1 mm, it is suitable for precision applications in laser and optical technologies.

Key Features

Reflectivity greater than 97% for enhanced light efficiency.
Surface quality rated at 40/20 for minimal optical distortion.
IAD-PVD coating for improved durability and performance.
Compact size of 3.0 mm, ideal for tight spaces in optical setups.
Customized support available for OEM, ODM, and OBM projects.

Available Sizes

Size x Thickness (mm)
3 x 0.1

Specification Summary

Item	Value
Material	B270
Size	3 mm
Thickness	0.1 mm
Surface Quality	40/20
Reflectance	97%
Coating	IAD/PVD hard

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Substrate	B270,D263T
Reflectivity	>97%
Certification	RoHS,ISO9001,EPR
Shipment	Express delivery,Air,Sea

FAQ

Can I get custom sizes?

Yes, variant sizes are available, including a compact size of 3.0 mm.

What are the surface quality tolerances?

The surface quality is rated at 40/20, ensuring minimal distortion.
