1 / 6Optical Filters
5 mm B270 Round Optical Filter
Explore the 808nm IR Narrow Band Pass Filter with >85% transmission, ideal for precise optical applications.
Core attributes
- Material
- B270
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 808nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- B270
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 808nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

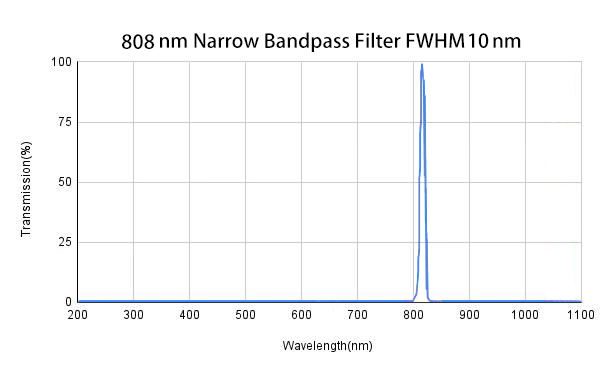

The 808nm IR Narrow Band Pass Filter is designed for applications requiring precise wavelength selection in the 0.7-1.7 μm range. With a center wavelength of 808nm and a peak transmission of over 85%, this filter effectively isolates the desired spectral band while blocking unwanted wavelengths, ensuring optimal performance in fluorescence microscopy and other optical applications. Its hard-coated surface enhances durability, making it suitable for various environmental conditions.
Key Features
- Center wavelength of 808nm ensures spectral fit for IR applications.
- Peak transmission of >85% maximizes light throughput for enhanced imaging.
- OD>4 in the blocking band (300-1100nm) provides superior light rejection.
- Hard-coated for increased durability and resistance to environmental factors.
- Available for OEM, ODM, and OBM customization to meet specific needs.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Shape | Round |
| Size | 5 mm |
| Thickness | Custom |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 808nm |
| Coating | hard-coat |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Filter Type | 808nm IR Narrow Band Pass Filter |
| Coating Type | Hard Coated |
| Scratch-Dig | 40/20,60/40,80/50 |
| Center Wavelength | 808nm |
| Peak Transmission(Tp) | >85% |
| Blocking Band | OD>4,300-1100nm |
FAQ
Can I get custom sizes?
Yes, the filter is available for OEM, ODM, and OBM customization.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible procurement.
