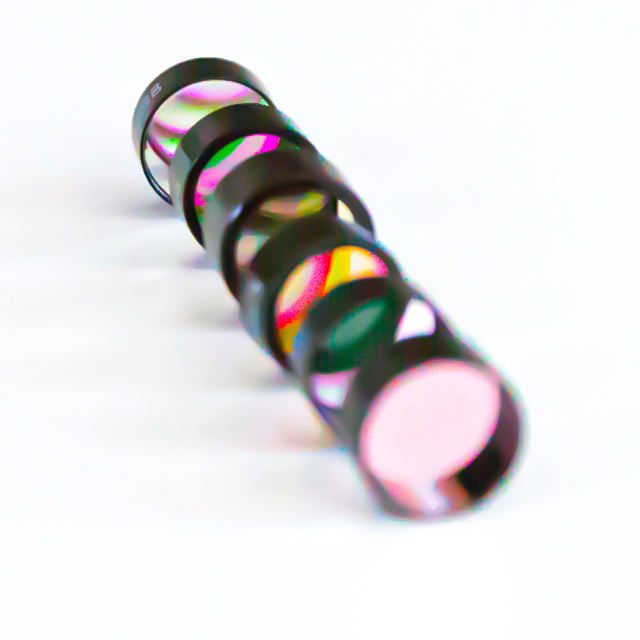

Custom Size B270 Round Optical Filter

Product description

The 660nm Dual Bandpass Filter is designed for applications requiring precise wavelength selection in the 0.7-1.7 μm range. With a center wavelength of 660nm and dual-band capability at 850nm, this filter ensures high transmission rates exceeding 85%, while effectively blocking unwanted wavelengths with an optical density greater than 5. The hard-coated surface enhances durability, making it suitable for various demanding environments.

Key Features

Center Wavelength: 660nm and 850nm for optimal spectral fit.
Peak Transmission: >85% ensures high light throughput.
Blocking Band: OD>5 for effective suppression of out-of-band light.
Coating Type: Hard-coated for enhanced environmental durability.
Customizable Support: OEM, ODM, and OBM options available.

Specification Summary

Item	Value
Material	B270
Shape	Round
Size	Custom
Thickness	Custom
Filter Type	bandpass
Cwl	660nm
Coating	hard-coat
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	3 Years

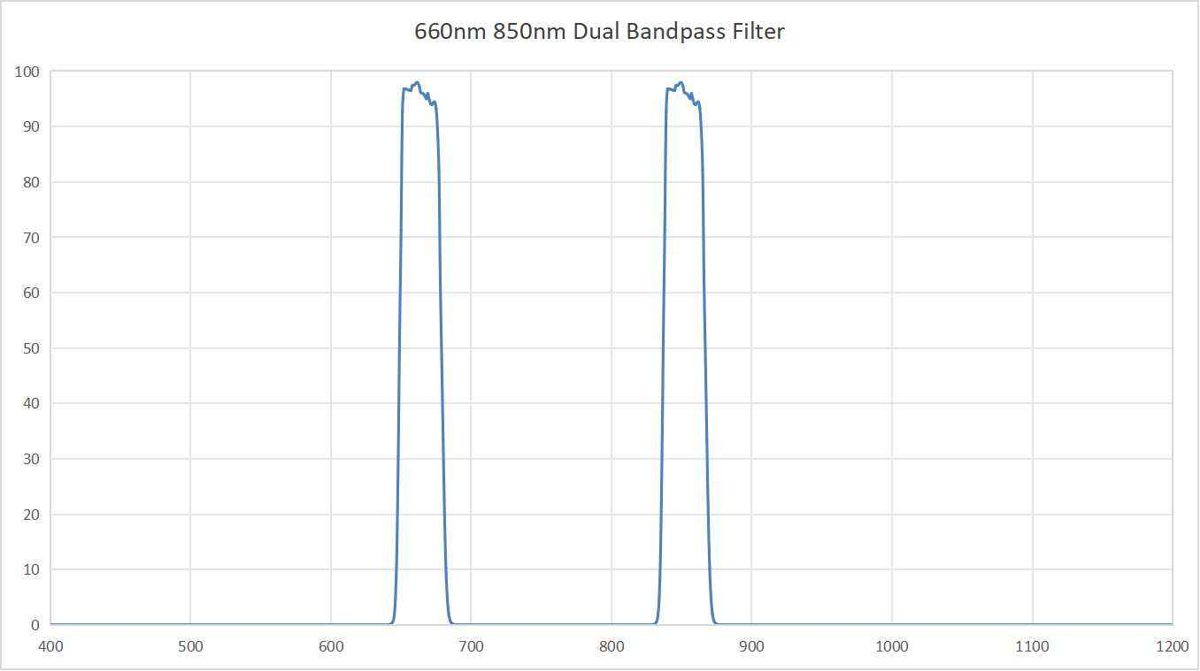

Filter Type	660nm 850nm Dual Bandpass Filter
Coating Type	Hard Coated
Center Wavelength	660nm;850nm
Peak Transmission(Tp)	>85%
Blocking Band	OD>5,300-2000nm
Scratch-Dig	60/40
Shipment	Express delivery,Air,Sea

FAQ

Can I get custom sizes?

Custom sizes are available for this filter to meet specific application requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
