1 / 6Optical Filters

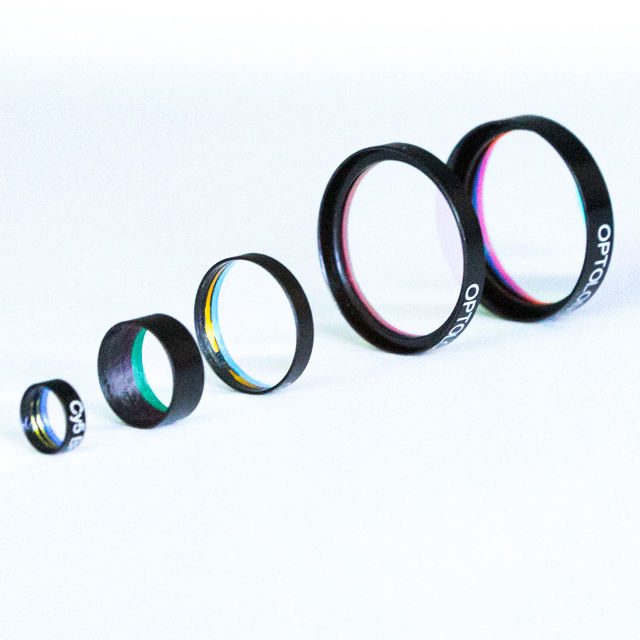

Custom Size B270 Round Optical Filter
Discover the 630nm bandpass filter with 85% transmittance, hard coating, and high durability for fluorescence microscopy applications.
Core attributes
- Material
- B270
- Shape
- Round
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 630nm
- Fwhm
- 10nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- B270
- Shape
- Round
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 630nm
- Fwhm
- 10nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
The 630nm bandpass filter is designed to enhance fluorescence microscopy and other optical applications by allowing only the desired wavelengths to pass through. With a center wavelength of 630nm and a full width at half maximum (FWHM) of 10nm, this filter ensures high transmission and effective blocking of unwanted light. Its hard-coated surface provides durability, making it suitable for various environmental conditions.
Key Features
- 85% transmittance ensures effective light passage.
- Hard coating enhances durability against environmental factors.
- Center wavelength of 630nm optimized for specific applications.
- Peak transmission greater than 90% for superior performance.
- OD>5 blocking band for effective suppression of unwanted wavelengths.
Specification Summary
| Item | Value |
|---|---|
| Material | B270 |
| Shape | Round |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 630nm |
| Fwhm | 10nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Filter Type | 630nm Bandpass Filter |
| Coating Type | Hard Coated |
| Center Wavelength | 630nm |
| Peak Transmission(Tp) | >90% |
| Blocking Band | OD>5 |
| Scratch-Dig | 60/40 |
FAQ
Can I get custom sizes for this filter?
Custom sizes are supported through OEM, ODM, and OBM options.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
