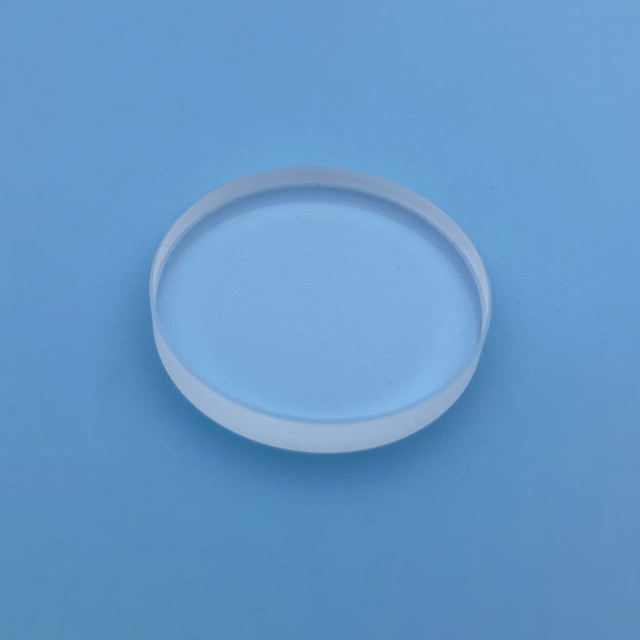

1 mm BaF2 Round Optical Window
Explore Barium Fluoride (BaF2) windows for medical and infrared applications with customizable sizes and high transmission.
Core attributes
- Material
- BaF2
- Shape
- round
- Diameter range
- 1 mm
Product facts
Key attributes
- Material
- BaF2
- Shape
- round
- Diameter range
- 1 mm
Product description
Barium Fluoride (BaF2) windows are essential for applications in medical thermology and infrared spectroscopy, providing high transmission across a broad wavelength range of 200 nm to 12 μm. These optical components are designed to withstand high-energy radiation and temperatures up to 800°C, making them suitable for demanding environments. The round shape and customizable sizes ensure a perfect fit for various setups, enhancing performance in critical applications.
Key Features
- High transmission from 200 nm to 12 μm for versatile application use.
- Customizable diameters and shapes to meet specific project requirements.
- Durable up to 800°C, suitable for high-temperature applications.
- Low weight of 1 unit for easy integration into existing systems.
- Edge finish options include ground and chamfered for optimal installation.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | BaF2 |
| Shape | Round |
| Diameter | 1 mm |
| Thickness | Custom |
| Transmission bands | LWIR (8-14 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM |
| Warranty | A month |
| Weight | 1 |
FAQ
Is custom sizing available for BaF2 windows?
Yes, BaF2 windows can be custom made to your design specifications.
What is the diameter tolerance for these windows?
The diameter tolerance is +0.00/-0.10 mm.
