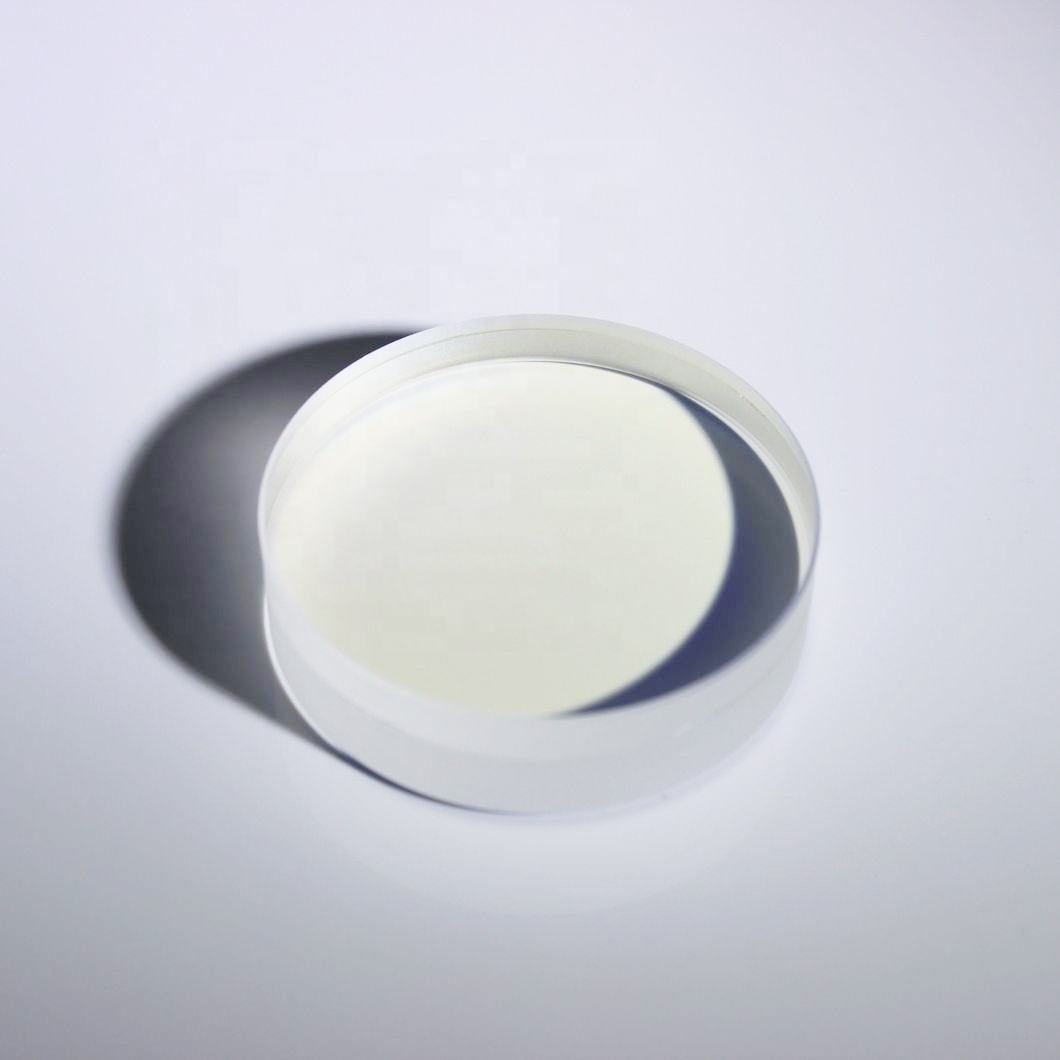

5x1 mm BaF2 Round Optical Window, AR Coated

Barium Fluoride (BaF2) windows are ideal for applications requiring high transmission across a wide wavelength range from 200 nm to 12000 nm. They are particularly effective in infrared spectroscopy, offering superior performance in dry environments up to 800°C. The low index of refraction (1.48) ensures minimal loss of light, making these windows suitable for various optical applications. Custom sizes and shapes, including diameters up to 300 mm, are available to meet specific project needs.

Key Features

• Wide wavelength range: 200 nm to 12000 nm for versatile applications.
• High transmission with clear aperture >90% ensures optimal performance.
• Custom sizes available, including diameters from 5 mm to 300 mm.
• Operating temperature up to 800°C in dry conditions for robust use.
• Dimension tolerance of +/-0.1 mm ensures precision in applications.

Available Sizes

Specification Summary

Full Specifications

FAQ

What custom sizes are available?

Custom sizes can be made with diameters ranging from 5 mm to 300 mm.

What is the minimum order quantity?

The minimum order quantity is not specified; please inquire for details.
