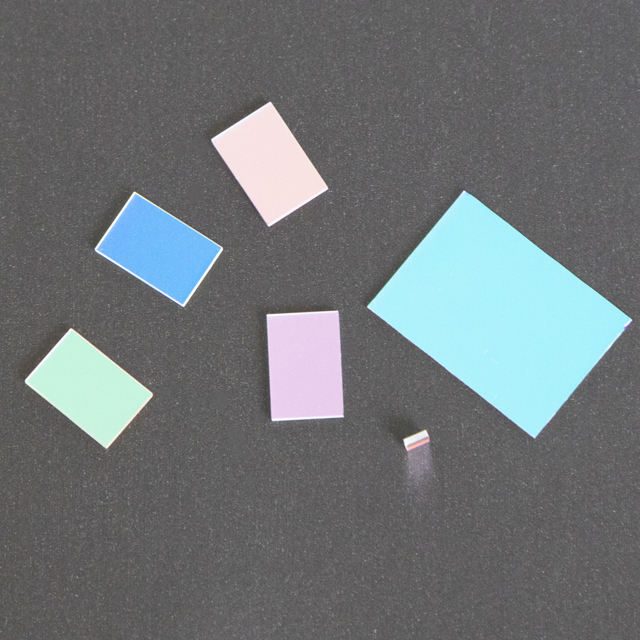

Custom Size BK7 Beamsplitter
BK7 beamsplitter with 85% transmittance for 400-700 nm applications. Custom sizing and high precision available.
Core attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20

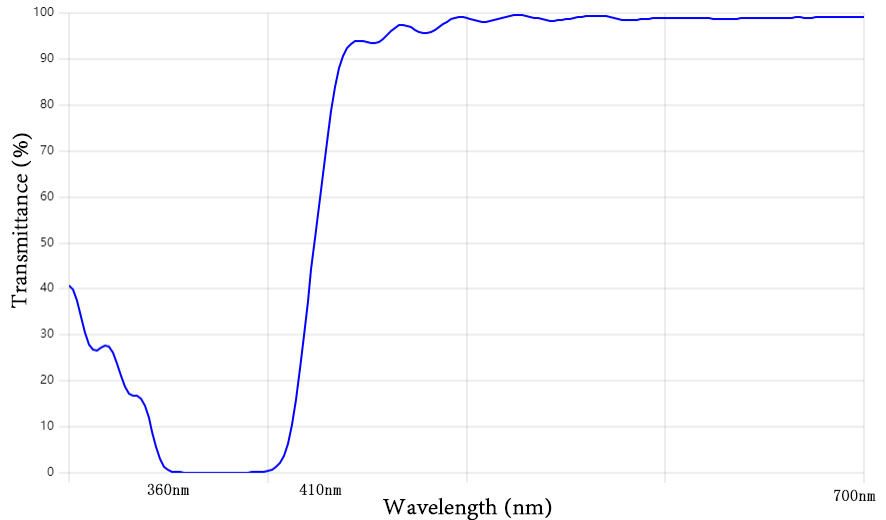

- Transmittance
- 85%
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Transmission bands
- VIS (400-700 nm)
Product description
This BK7 beamsplitter is designed for applications in the 400-700 nm wavelength range, providing an efficient solution for optical systems requiring high transmittance. With a transmittance of 85%, it ensures minimal loss of light while effectively splitting beams for various applications in laser, machine vision, and biomedical fields. The beamsplitter’s surface quality of 40/20 guarantees reliable performance in precision optics, making it suitable for research and development environments.
Key Features
- Transmittance of 85% ensures minimal light loss for optimal performance.
- Surface quality of 40/20 supports high precision in optical applications.
- Thickness options from 0.3 mm to 5.0 mm accommodate diverse system requirements.
- Customizable support for OEM, ODM, and OBM projects enhances sourcing flexibility.
- Tolerance of ± 0.10 mm ensures consistent batch quality.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | D263T,N-BK7,H-K9,Fused Silica |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
FAQ
Is custom sizing available?
Yes, customizable support for OEM, ODM, and OBM projects is offered.
What is the tolerance for this beamsplitter?
The tolerance for this beamsplitter is ± 0.10 mm.
