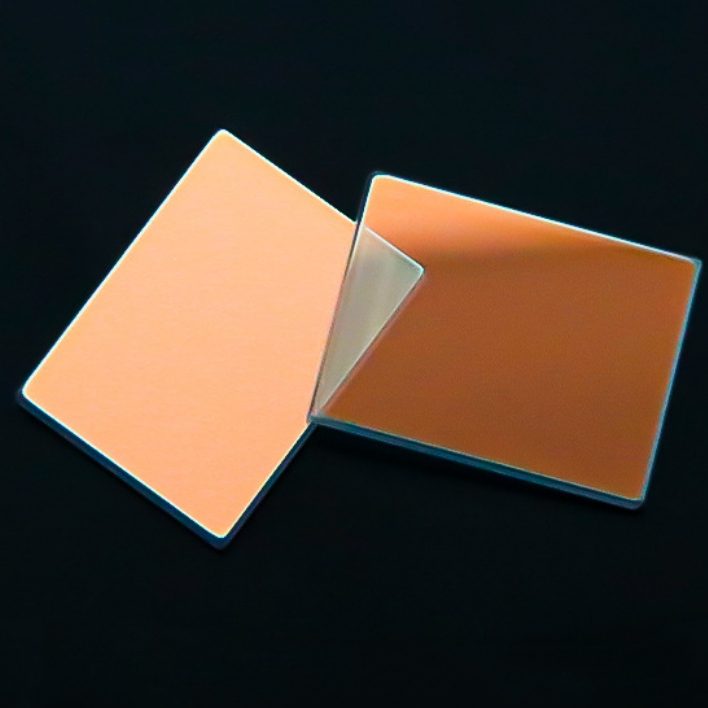

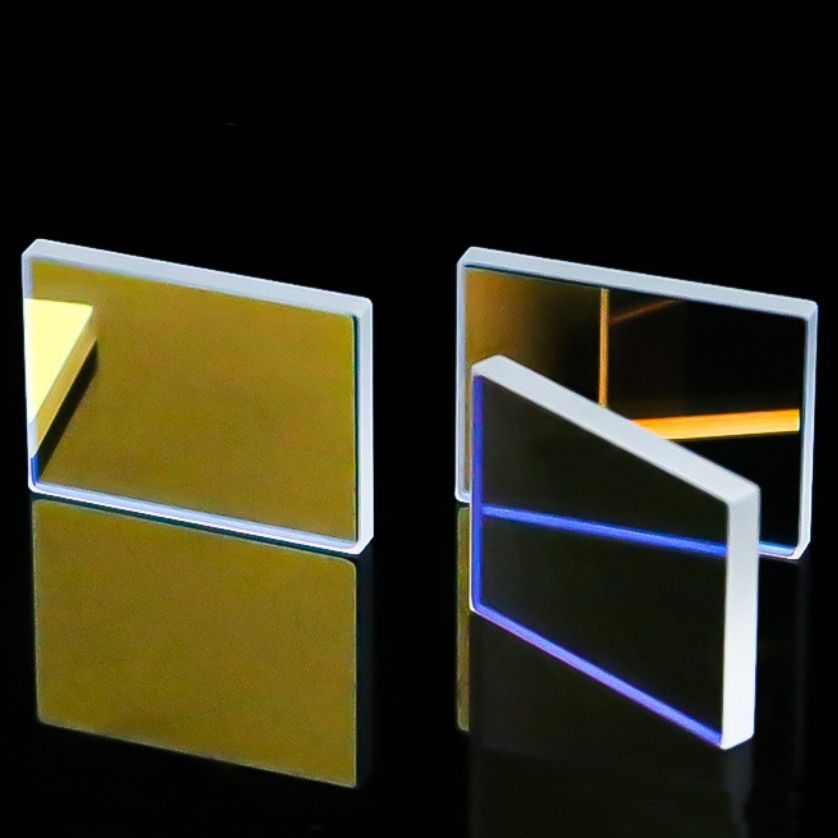

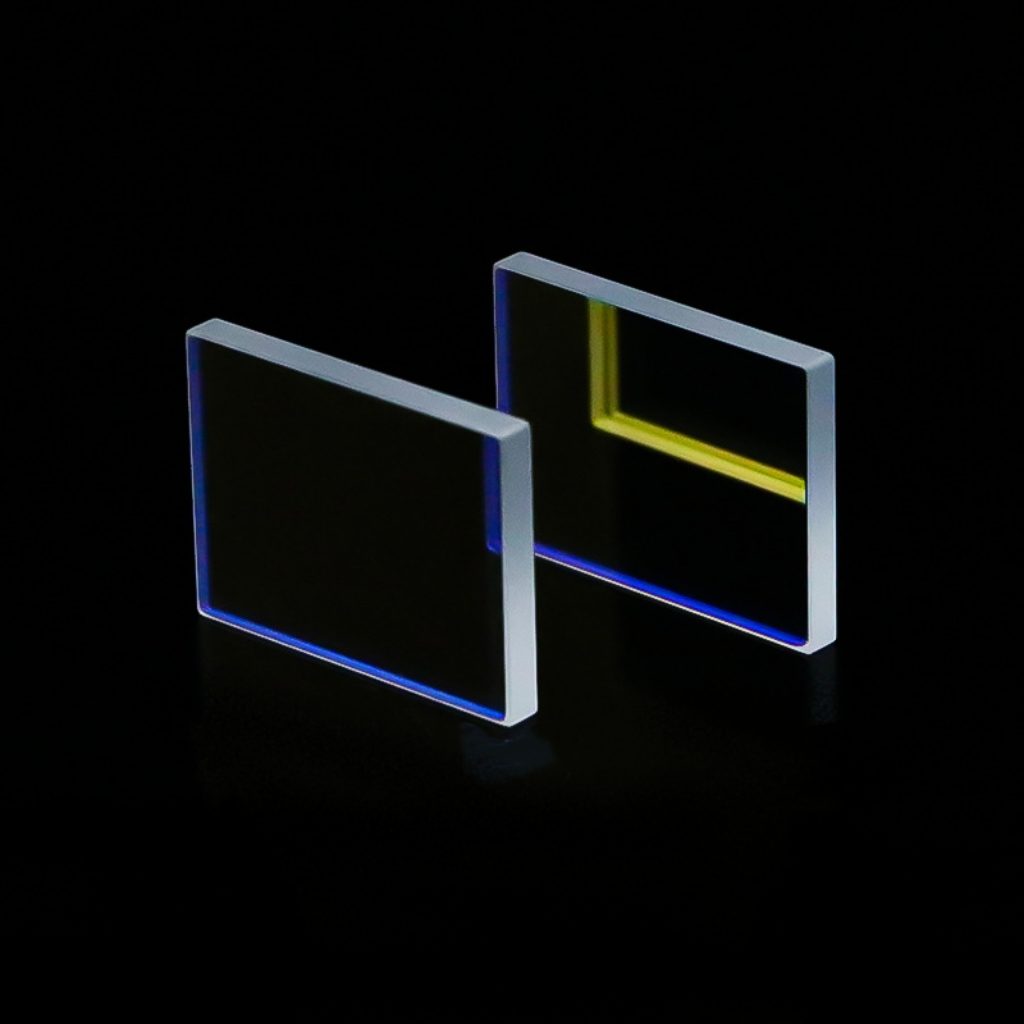

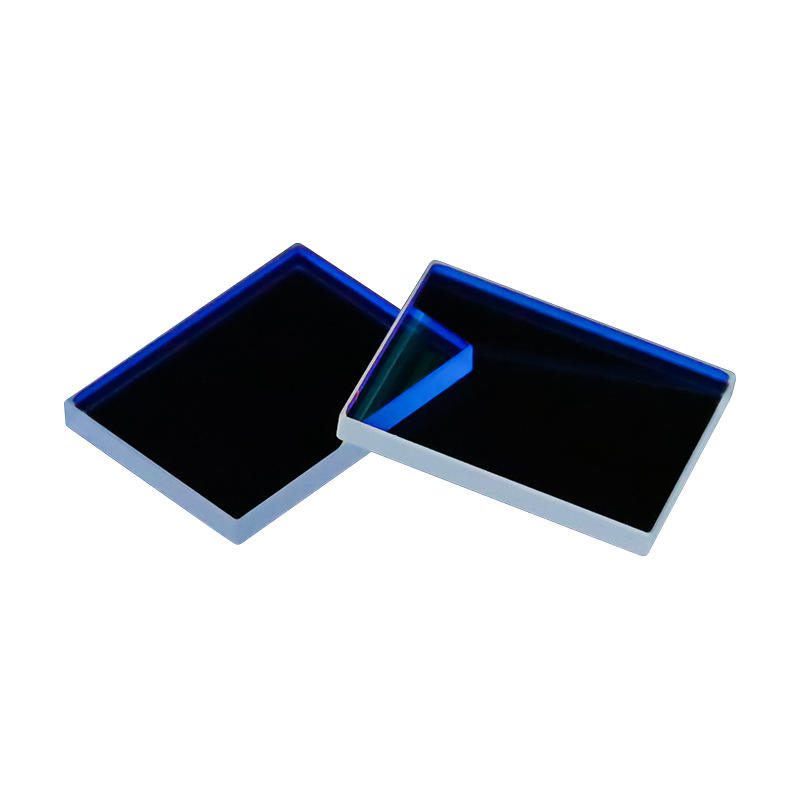

Custom Size BK7 Beamsplitter, AR Coated

Product description

This BK7 beamsplitter is designed for applications in laser, projection, and imaging systems, operating effectively within the 400-700 nm wavelength range. With a high transmittance of ≥90%, it ensures minimal loss of light and superior image quality. The beamsplitter is suitable for high-power lasers, providing a customizable solution for specific project needs while maintaining strict quality standards.

Key Features

Transmittance of ≥90% ensures minimal light loss for optimal performance.
Customizable dimensions and wavelengths (450nm, 532nm, 650nm) meet specific application requirements.
High Laser Damage Threshold (LIDT) protects against damage in high-power laser applications.
Surface quality rated at 60/40 guarantees clarity and precision in imaging.
Angle tolerance customizable from 3 arcseconds to 5 arcminutes for precise alignment.

Applications

Laser, Projection, Imaging

Specification Summary

Item	Value
Material	BK7
Size	Custom
Thickness	Custom
Surface Quality	60/40
Transmittance	90%
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	≥90%; T>90%; T > 95%
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Wavelength	Customized / 450nm, 532nm, 650nm / RGB
Dimension Tolerance	±0.05mm / ±0.02mm
Angle Tolerance	3arcseconds-5arcminutes or customizable
Laser Damage Threshold	Customizable

FAQ

Can I get custom sizes?

Yes, the beamsplitter is 100% customizable to your exact drawings and specifications.

What are the tolerances for dimensions?

The dimension tolerance is ±0.05mm and angle tolerance is customizable from 3 arcseconds to 5 arcminutes.
