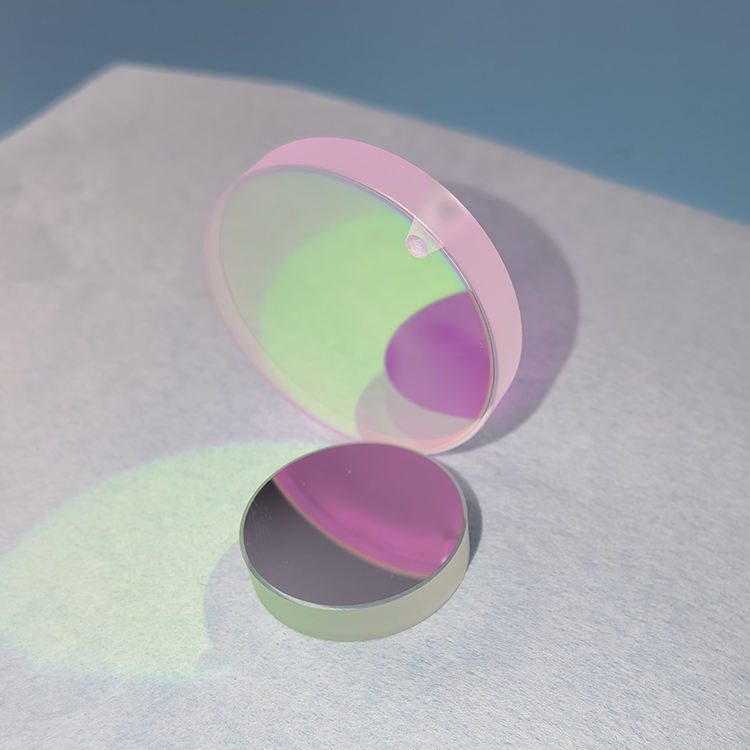

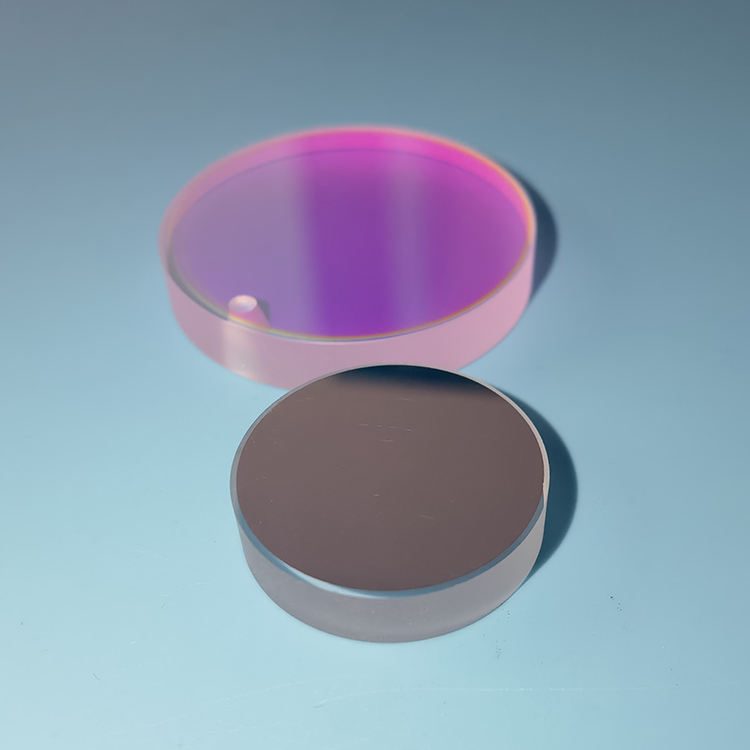

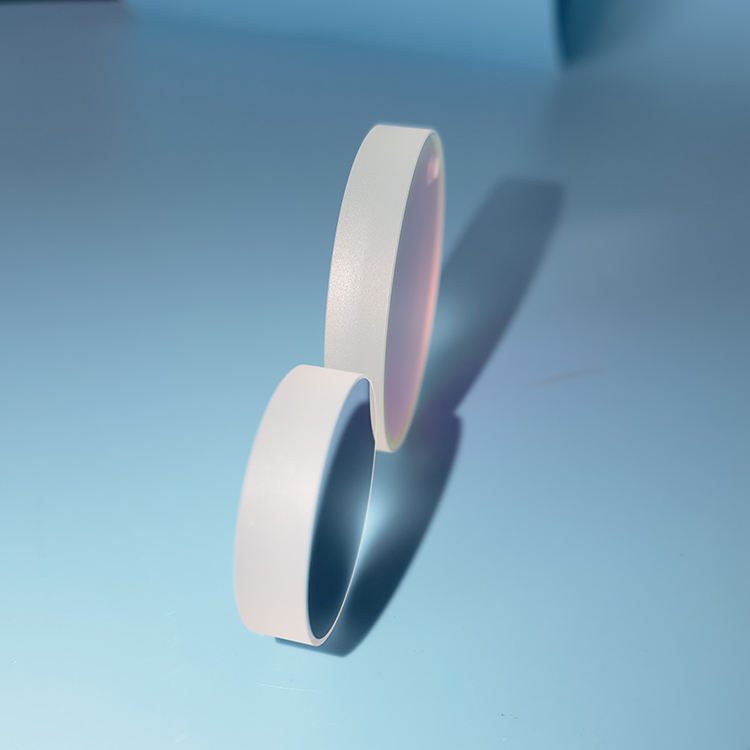

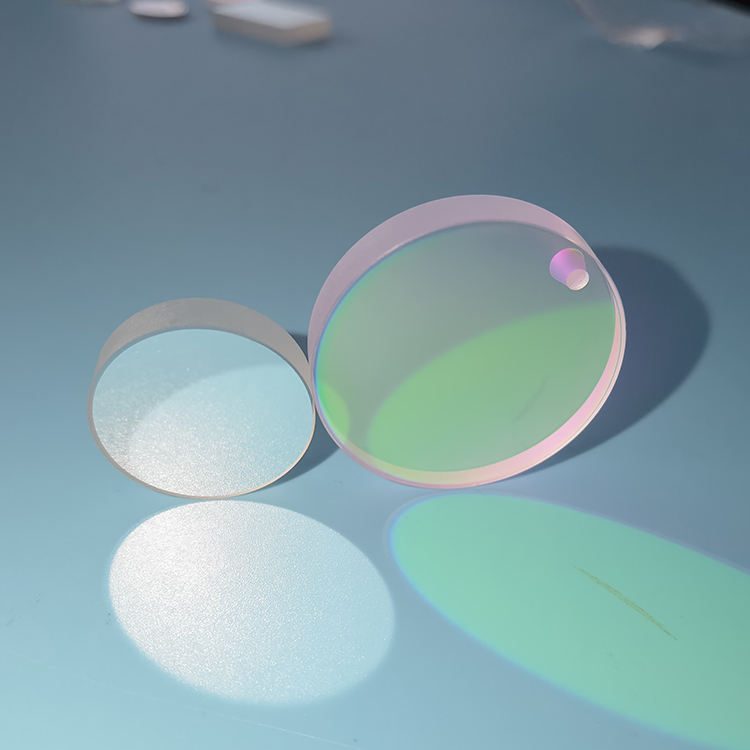

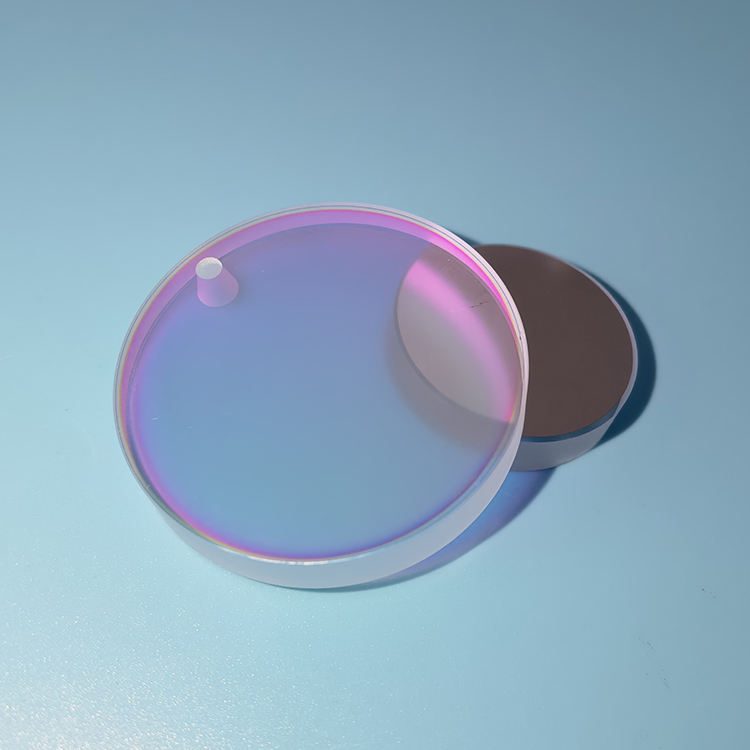

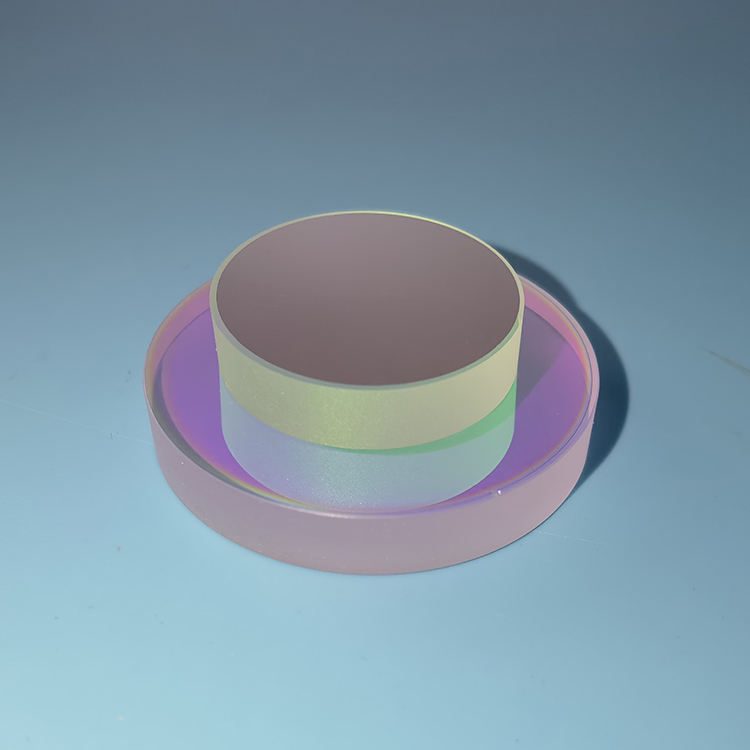

1 mm BK7 Concave Optical Mirror, AR Coated

Product description

This concave mirror is designed to enhance optical performance in various applications, featuring a high-quality BK7 substrate. With a surface quality of 40/20 and a clear aperture greater than 90%, it ensures minimal distortion and optimal light transmission. The mirror is available in a range of sizes from 1.0 mm to 400.0 mm, making it suitable for diverse setups. Custom focal lengths of 150 mm, 200 mm, and 27 mm are available to meet specific project needs.

Key Features

Surface quality of 40/20 for minimal distortion and high clarity.
Customizable focal lengths (150 mm, 200 mm, 27 mm) to suit various applications.
Clear aperture greater than 90% for optimal light transmission.
Diameter tolerance of ±0.1 mm for precise fitting in optical systems.
Support for OEM and ODM customization to meet unique project requirements.

Specification Summary

Item	Value
Material	BK7
Shape	Concave
Size	1 mm
Thickness	Custom
Surface Quality	40/20
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Concave Mirror
Customized Support	OEM, ODM
Warranty	3 Years
Weight	0.01
Diameter Tolerance	±0.1mm
Focal Length	150mm 200mm 27mm etc. as requirements
Clear Aperture	> 90%
Flatness	L/4

FAQ

What are the available sizes for this mirror?

The concave mirror is available in sizes ranging from 1.0 mm to 400.0 mm.

Can I get a custom focal length?

Yes, custom focal lengths of 150 mm, 200 mm, and 27 mm can be provided as per requirements.
