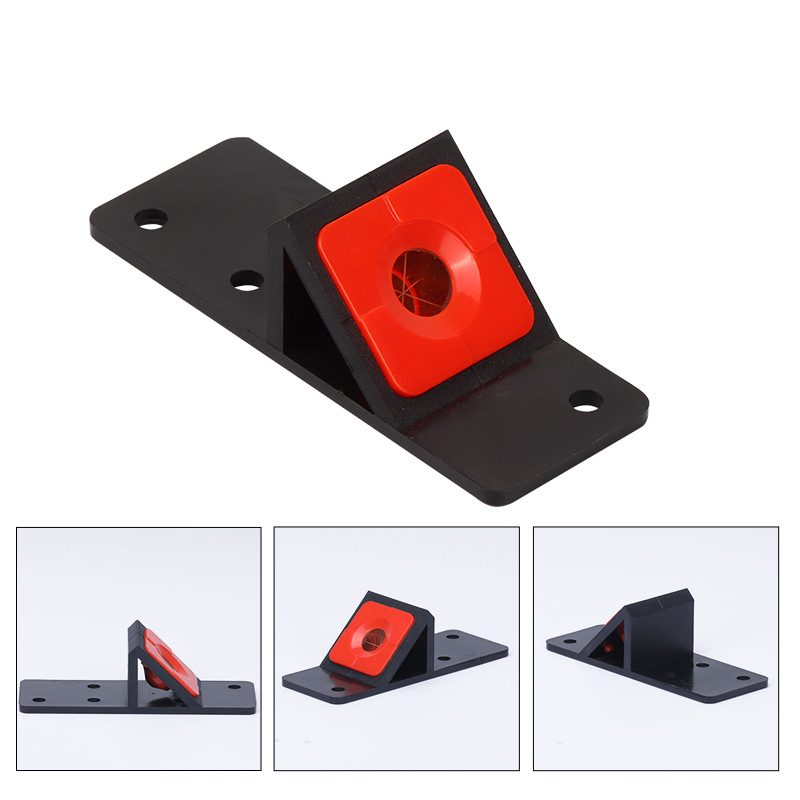

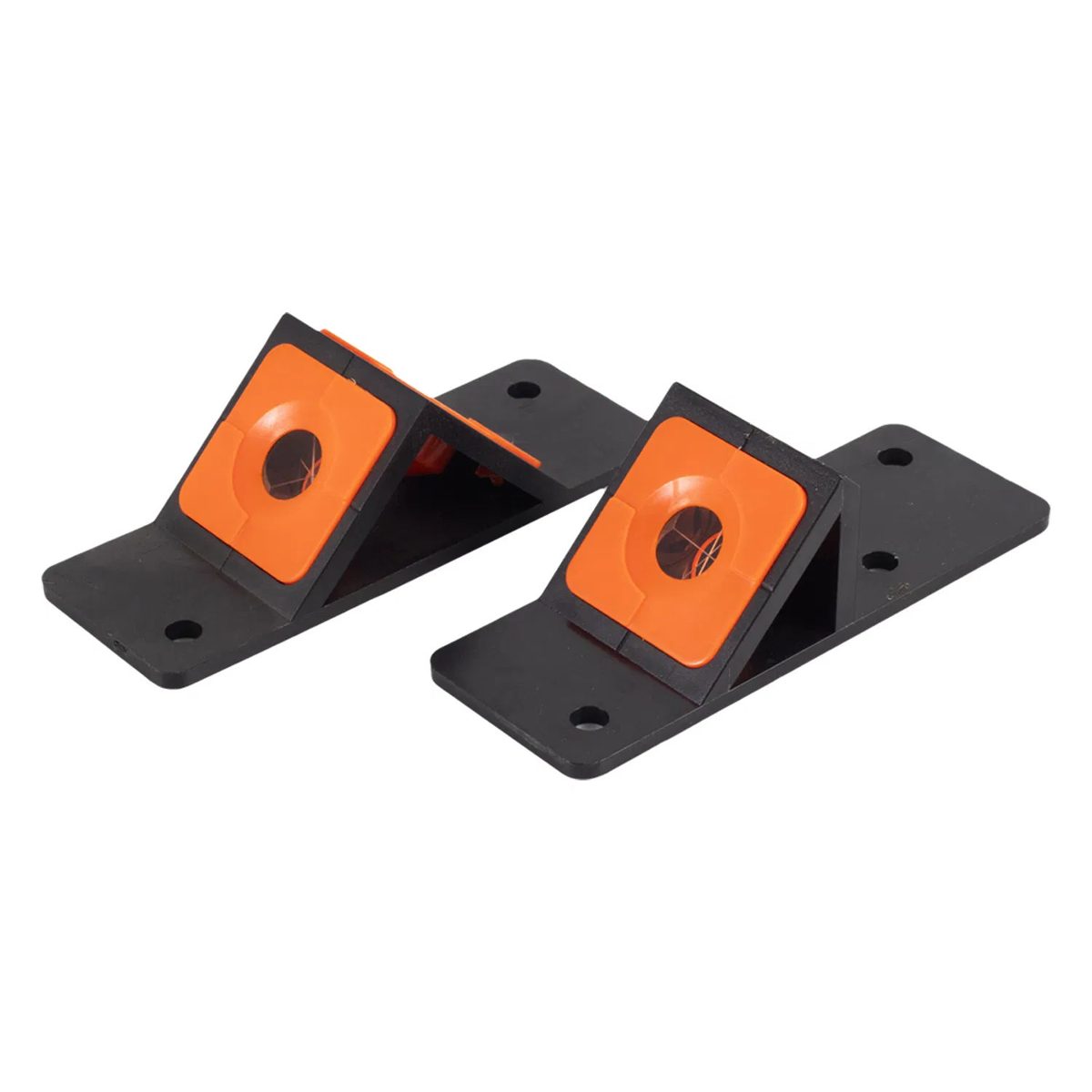

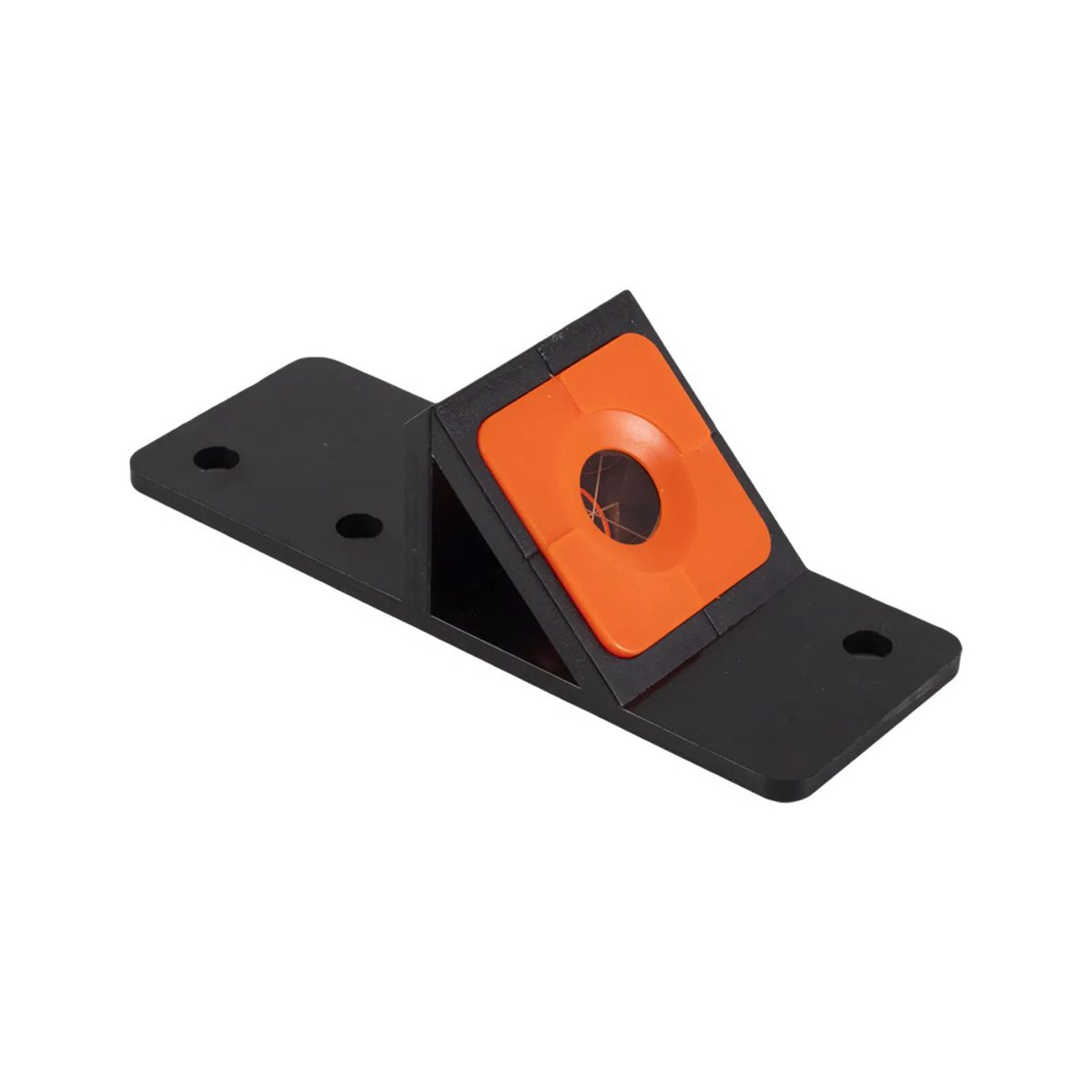

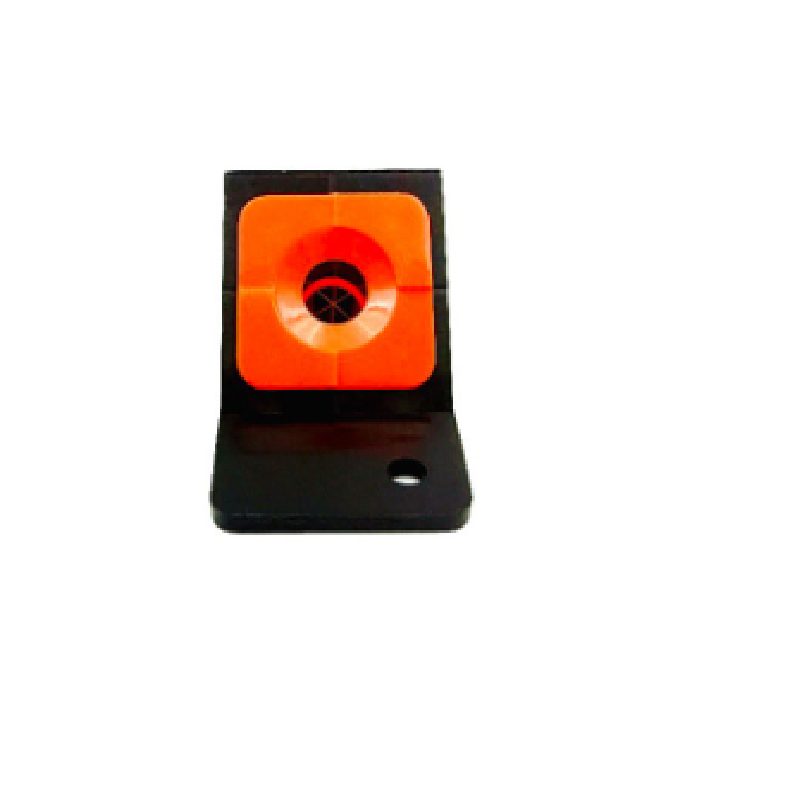

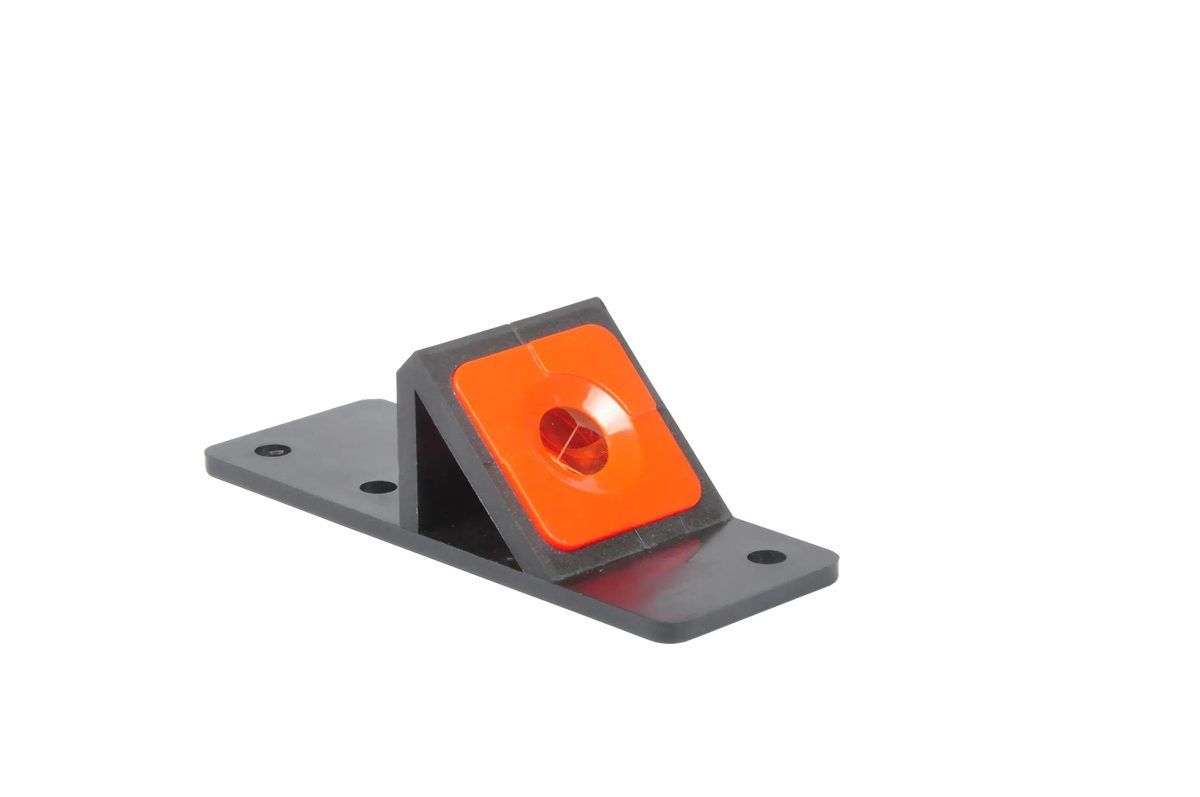

12.7 mm BK7 Corner-cube Optical Prism
Corner-cube prism for surveying applications with 12.7mm diameter, 45-degree design, and OEM customization options.
Core attributes
- Material
- BK7
- Shape
- Corner-cube
- Size
- 12.7 mm
- Thickness
- Custom
- Coating
- copper-coating
Product facts
Key attributes
- Material
- BK7
- Shape
- Corner-cube
- Size
- 12.7 mm
- Thickness
- Custom
- Coating
- copper-coating
Product description
The corner-cube prism is designed for precise planar reflection, making it ideal for applications in surveying, such as total station alignment and short-range monitoring. With a compact 12.7mm effective diameter, this prism ensures high optical accuracy and strong reflectivity. Its standard 45-degree design and dual offset constant enhance compatibility with various total station brands, making it a reliable choice for engineering surveys and construction monitoring.
Key Features
- Standard 45-degree angle for accurate planar reflection, enhancing total station alignment.
- Compact 12.7mm effective diameter for high optical accuracy and strong reflectivity.
- Dual offset constant of 0/-30mm for compatibility with most total station brands.
- Sturdy mounting base for easy installation and long-term outdoor use.
- OEM support available for customized solutions.
Applications
Surveying
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Corner-cube |
| Size | 12.7 mm |
| Thickness | Custom |
| Coating | copper-coating |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Corner Cube |
| Customized Support | OEM |
| Warranty | 1 Year |
FAQ
Is custom sizing available?
Custom sizing options are available through OEM support.
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
