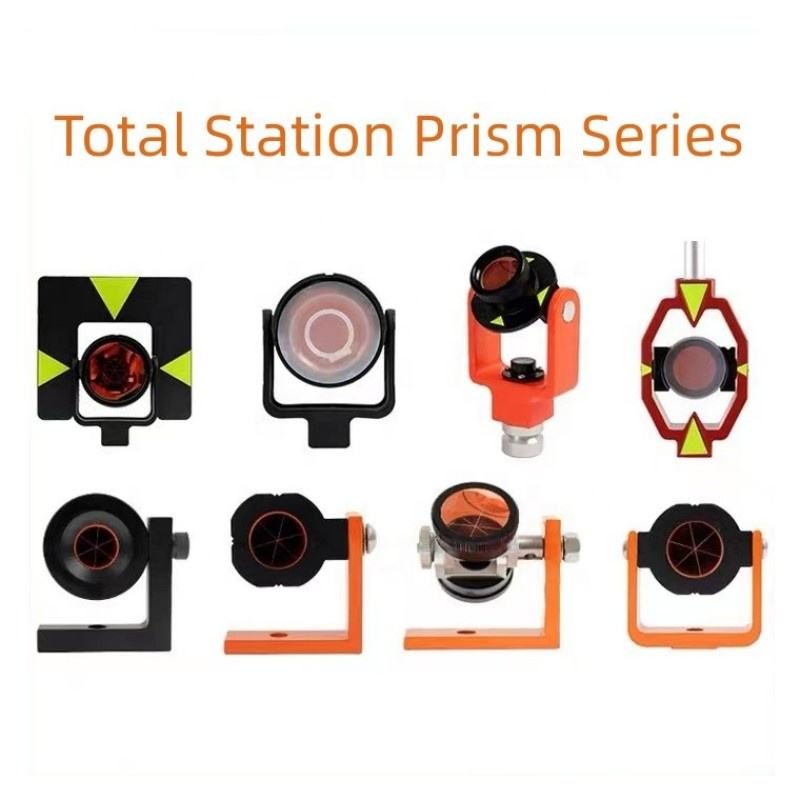

1 mm BK7 Corner-cube Optical Prism, AR Coated
Corner-cube prism for surveying with 1/10 surface quality and customizable sizes from 1.0mm to 200.0mm.
Core attributes
- Material
- BK7
- Shape
- Corner-cube
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 1/10
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Corner-cube
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 1/10
- Coating
- anti-reflective (AR)
Product description

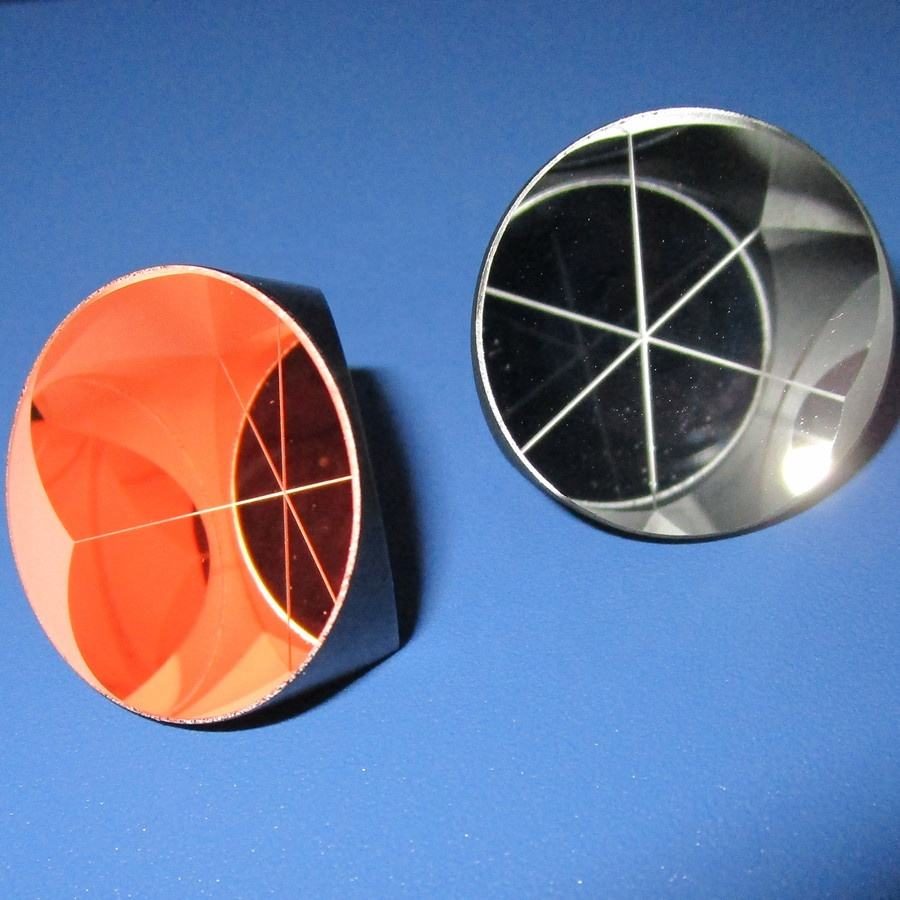

The corner-cube prism is designed for precise surveying applications, ensuring accurate retroreflection of light. Its robust BK7 material provides excellent optical performance, while the 1/10 surface quality guarantees minimal wavefront distortion. This prism is particularly suited for environments where reliable reflection is critical, enhancing measurement accuracy in various surveying tasks.
Key Features
- Corner-cube geometry ensures accurate retroreflection for surveying applications.
- 1/10 surface quality minimizes wavefront distortion, enhancing optical performance.
- Custom dimensions available from 1.0mm to 200.0mm to fit specific applications.
- Dimension tolerance of +0.0/-0.1mm ensures high precision in optical setups.
- Clear aperture greater than 90% maximizes light transmission for effective measurements.
Applications
Surveying
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Corner-cube |
| Size | 1 mm |
| Thickness | Custom |
| Surface Quality | 1/10 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Corner Cube |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Dimension | 1.0mm-200.0 mm |
| Dimension Tolerance | +0.0/-0.1mm |
| Clear Aperture | >90% |
FAQ
Can I get custom sizes for the corner-cube prism?
Yes, custom dimensions are available from 1.0mm to 200.0mm.
What is the dimension tolerance for this prism?
The dimension tolerance is +0.0/-0.1mm.
