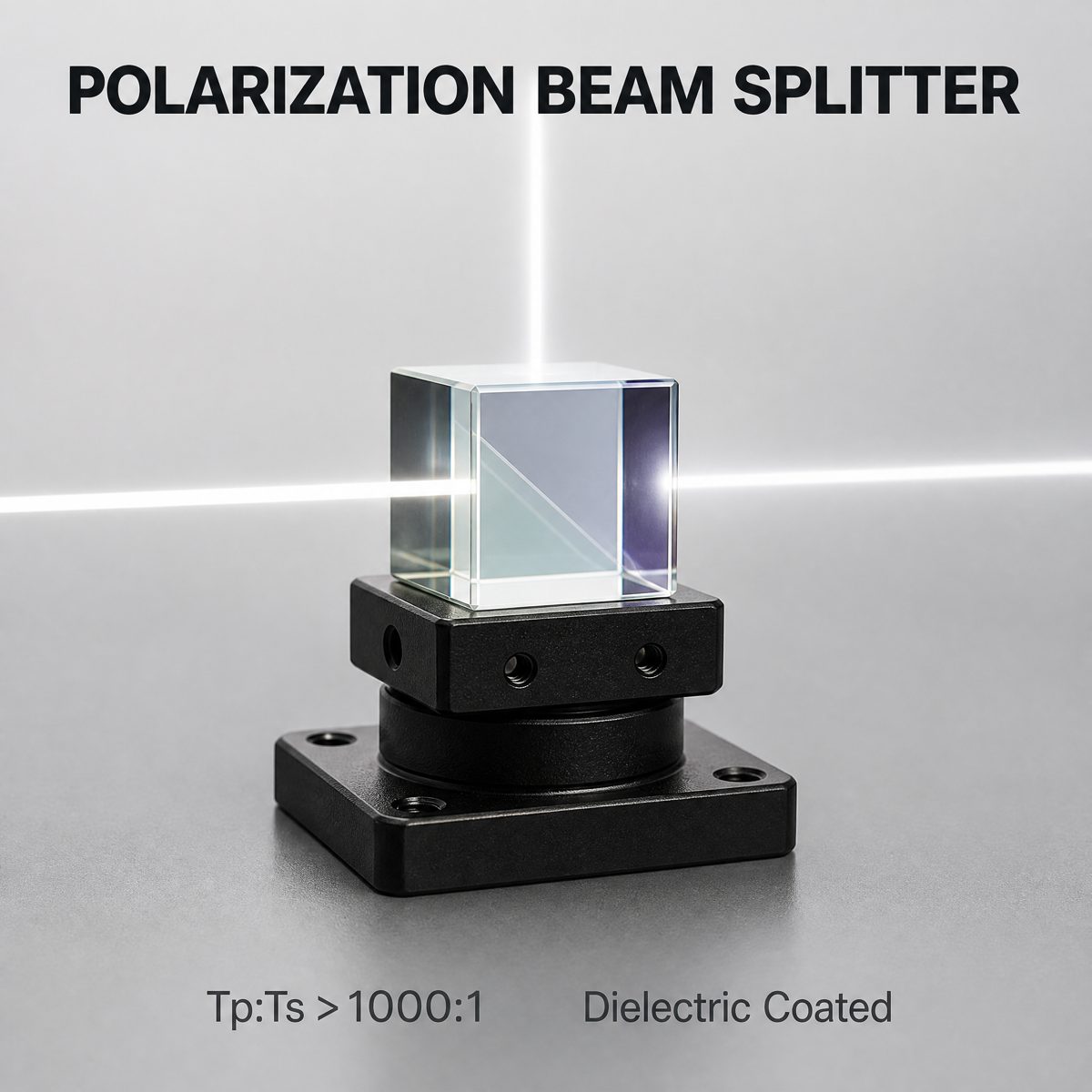

10x1 mm BK7 Cube Beamsplitter
Polarization beam splitter cube for laser and research applications with high extinction ratio and precision surface quality.
Core attributes
- Material
- BK7
- Shape
- Cube
- Size
- 10 mm
- Thickness
- 1 mm
- Surface Quality
- 40/20
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Cube
- Size
- 10 mm
- Thickness
- 1 mm
- Surface Quality
- 40/20
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This polarization beam splitter cube is designed for laser and research applications, providing exceptional polarization separation with a high extinction ratio of Tp:Ts > 1000:1. Constructed from BK7 optical glass, it operates effectively across the 400-700 nm and 0.7-1.7 μm wavelength bands. Its 40/20 surface quality ensures precision in beam control, making it ideal for laser interferometers and precision optics systems. The compact 10 mm size allows for easy integration into various setups.
Key Features
- High extinction ratio of Tp:Ts > 1000:1 for superior polarization separation.
- Surface quality rating of 40/20 for precise beam control.
- Constructed from BK7 optical glass for durability and reliability.
- Available in a compact 10 mm size for versatile applications.
- Effective across multiple wavelength bands: 400-700 nm and 0.7-1.7 μm.
Available Sizes
| Size x Thickness (mm) |
|---|
| 10 x 1 |
Applications
Laser, Research
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Cube |
| Size | 10 mm |
| Thickness | 1 mm |
| Surface Quality | 40/20 |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Super Smooth Optical Mirror |
| Warranty | 5 year |
| Extinction Ratio | Tp:Ts > 1000:1 |
| Wavelength | 400-700nm 1064nm |
FAQ
Is custom sizing available?
Custom sizing is not available for this product.
What is the minimum order quantity (MOQ)?
There is no specified minimum order quantity (MOQ) for this product.
