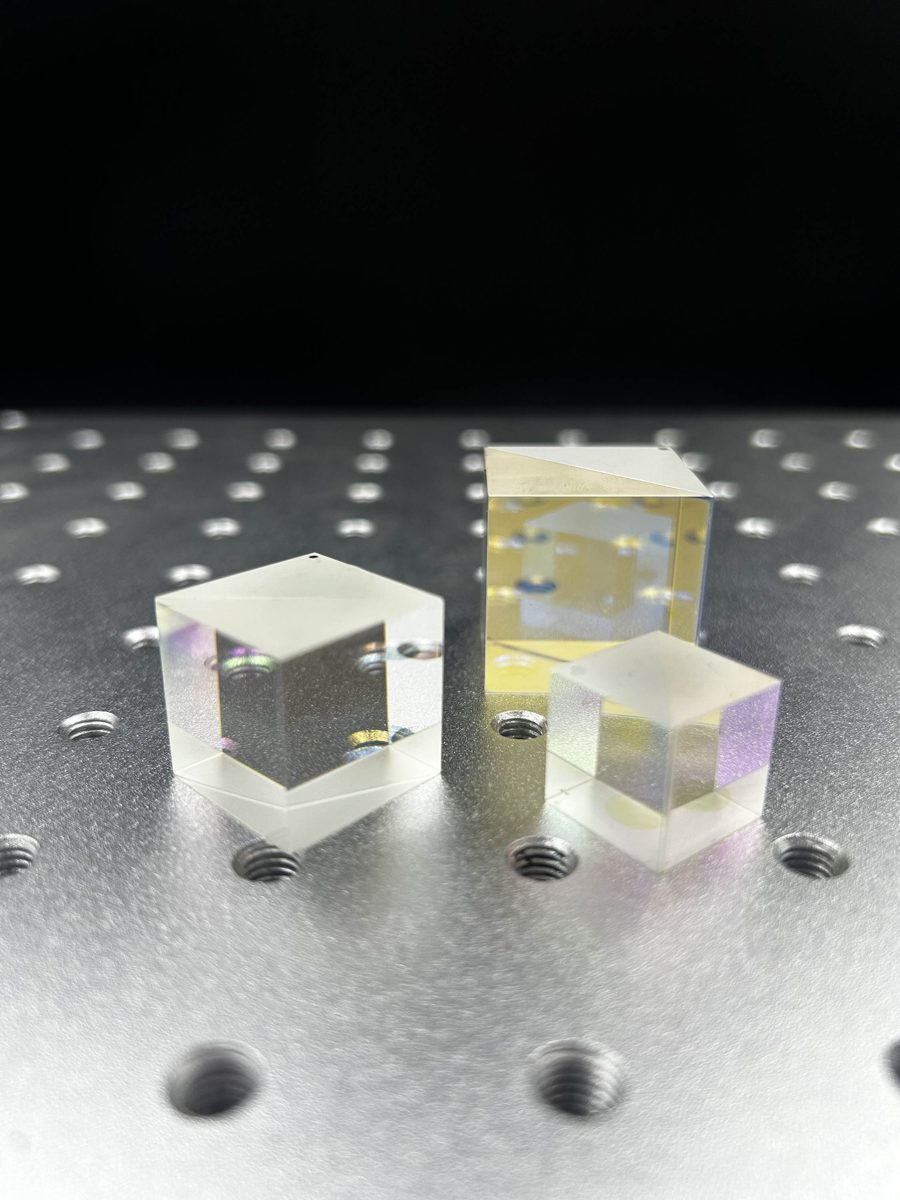

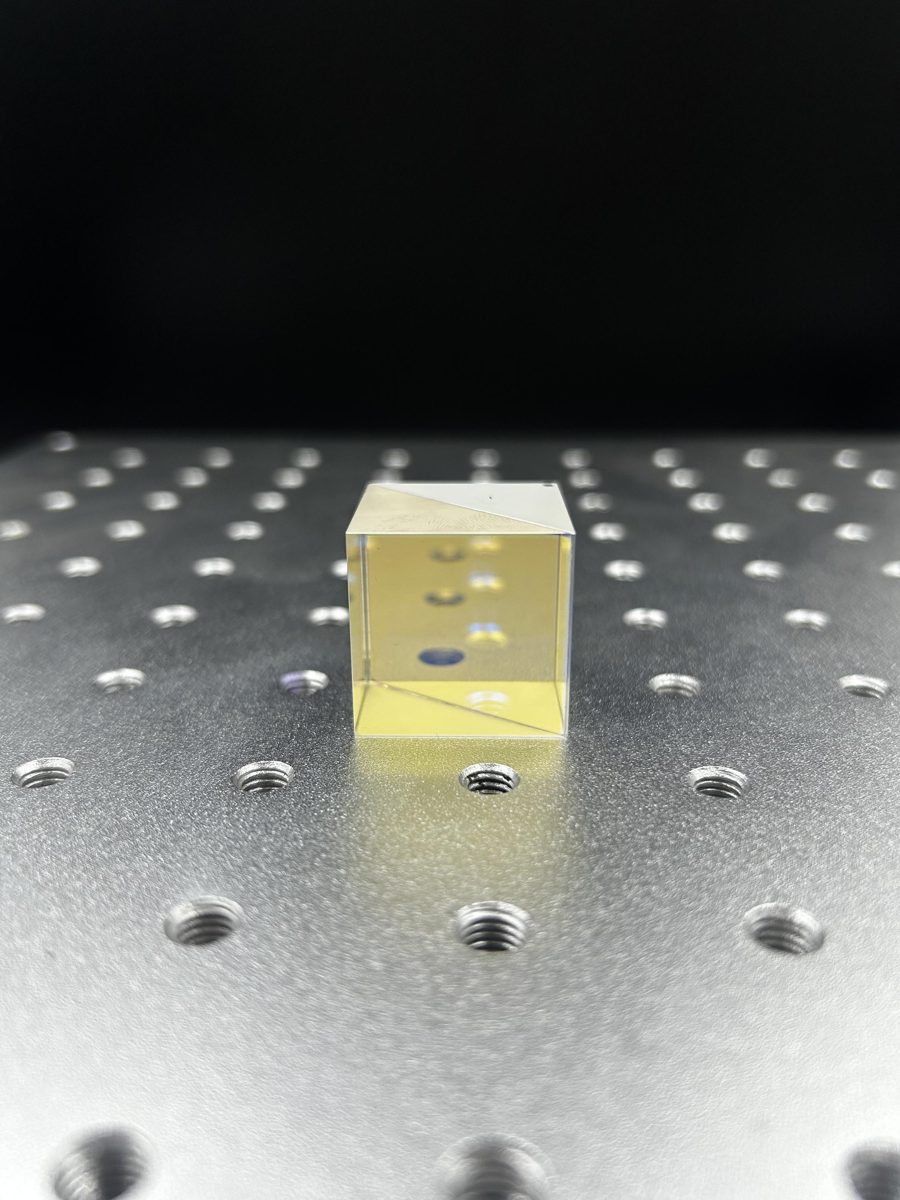

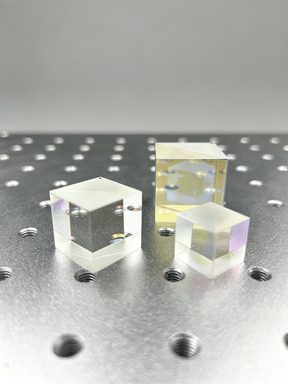

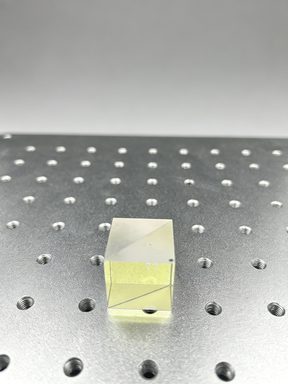

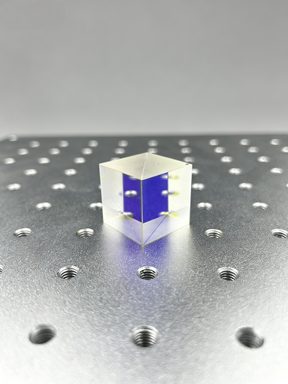

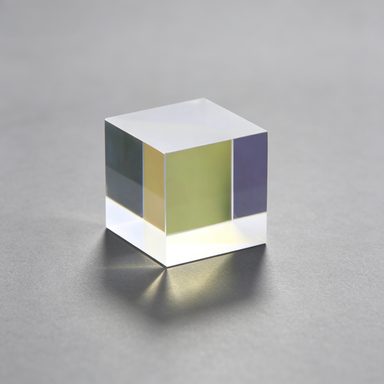

12.7 mm BK7 Cube Beamsplitter, AR Coated
BK7 cube beamsplitter with AR coating for medical imaging and research, customizable sizes available.
Core attributes
- Material
- BK7
- Shape
- Cube
- Size
- 12.7 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Cube
- Size
- 12.7 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This BK7 cube beamsplitter is designed for applications in medical imaging, LIDAR, and research, providing high precision and durability. With a wavelength range of 0.4-1.7 μm, it effectively splits light for various optical applications. The AR coating enhances light transmission while minimizing glare, making it suitable for sensitive imaging tasks. Its customizable design accommodates different angles, ensuring adaptability for specific measurement needs.
Key Features
- Wavelength range of 0.4-1.7 μm for versatile application in imaging and research.
- AR coating improves transmittance, ensuring optimal light performance.
- Cube shape (12.7 mm) for compact integration in optical systems.
- High extinction ratio of 1000:1 for effective light separation.
- Customizable support for OEM, ODM, and OBM projects to meet specific needs.
Applications
Medical, Lidar, Imaging, Research
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Cube |
| Size | 12.7 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Polarizing |
| Customized Support | OEM, ODM, OBM |
| Wavelength Range | 420-680nm, 620-1000nm, 900-1300nm, 1200-1600nm others specified |
| Materail | N-SF1/Fused Silica/K9/ZF3 |
| Transmission | TP > 95% |
| Reflection | RS avg > 99% |
| Flatness | 1/4 @ 632.8nm per25mm |
| Laser Damage Threshold | >500mJ/cm2,20ns,20Hz,@1064nm |
| Extinction Ratio | 1000:1 |
| Dimension | 12.712.712.7mm,,202020mm, 25.425.425.4mm, others specified |
FAQ
What sizes are available for this beamsplitter?
Standard dimensions include 12.7 mm, with options for 20 mm and 25.4 mm cubes. Custom sizes can be specified.
What is the minimum order quantity (MOQ) for this product?
The MOQ is not specified, allowing for flexibility in ordering.
