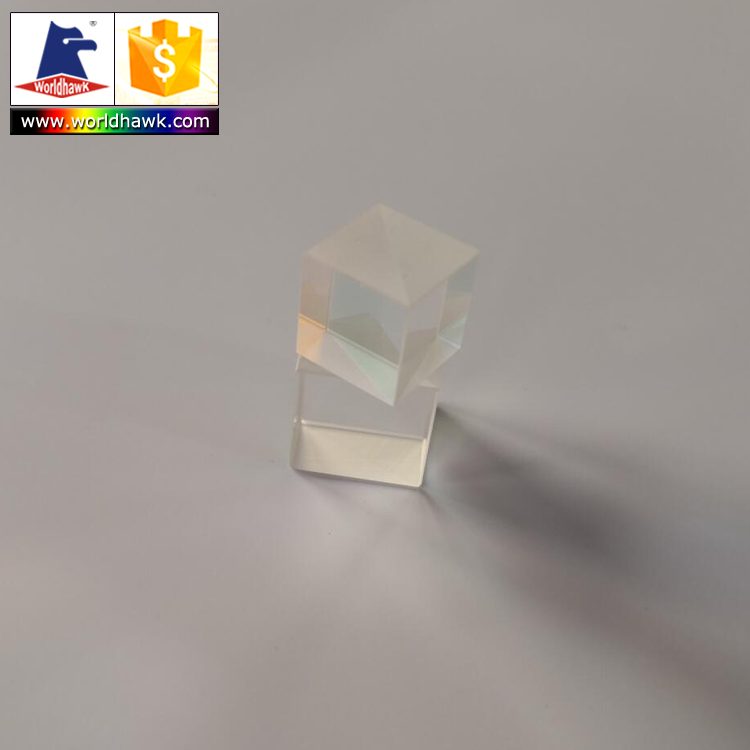

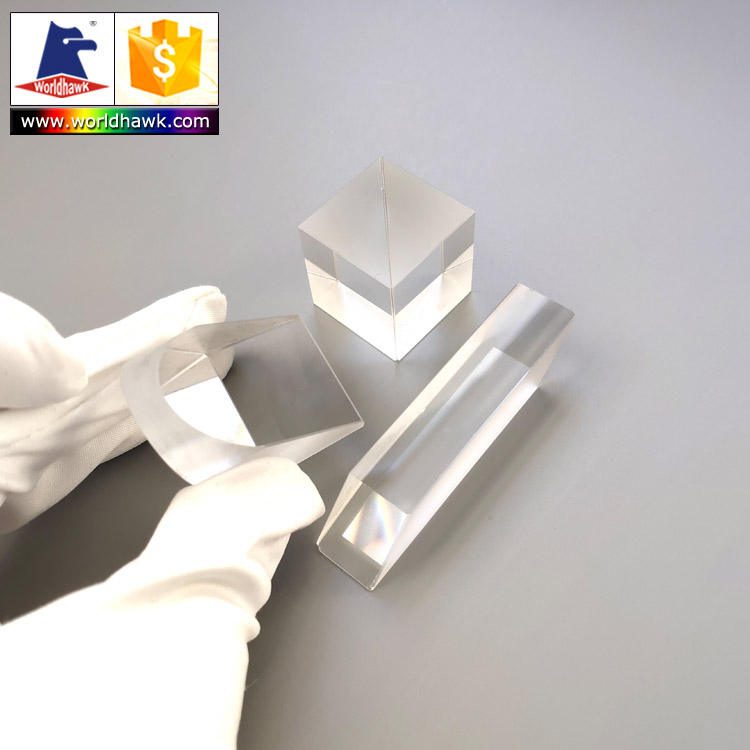

50 mm BK7 Cube Beamsplitter, AR Coated
BK7 beamsplitter with customizable sizes, high surface quality, and multiple prism types for precise optical applications.
Core attributes
- Material
- BK7
- Shape
- Cube
- Size
- 50 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Cube
- Size
- 50 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The BK7 beamsplitter provides precise light division for applications in laser, machine vision, and microscopy. With a surface quality of 60/40 and customizable dimensions ranging from 50mm to 100mm, this beamsplitter ensures reliable performance across various optical setups. Its right angle, penta, and triangular prism shapes make it versatile for different configurations. The AR coatings enhance transmission, making it suitable for a wide range of wavelengths.
Key Features
- Surface quality of 60/40 for minimal distortion, enhancing image clarity.
- Custom dimensions from 50mm to 100mm, allowing for tailored solutions.
- Angle tolerance of <3’ ensures precise alignment in optical systems.
- Clear aperture of ≥90% maximizes light throughput for efficient performance.
- Available in various prism types for flexibility in application.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Cube |
| Size | 50 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|

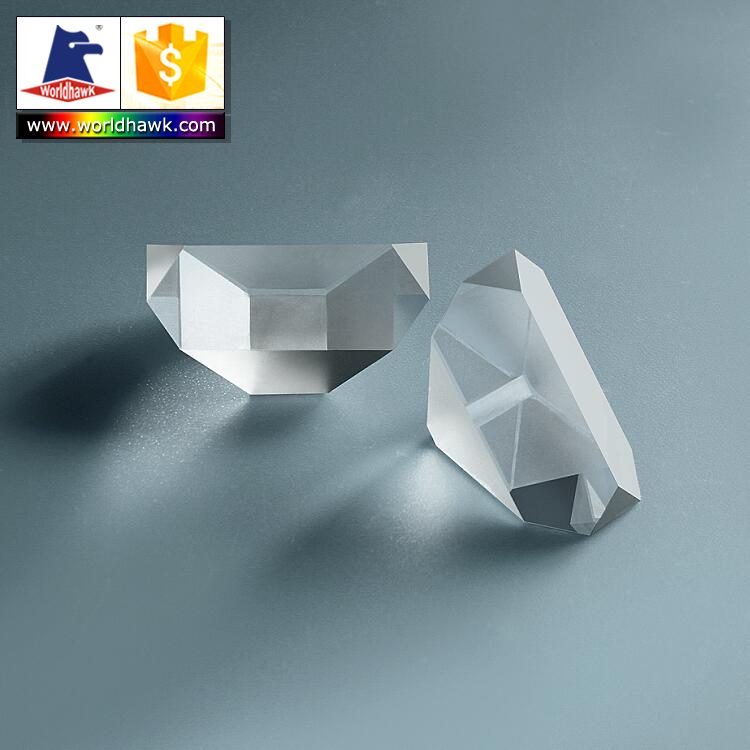

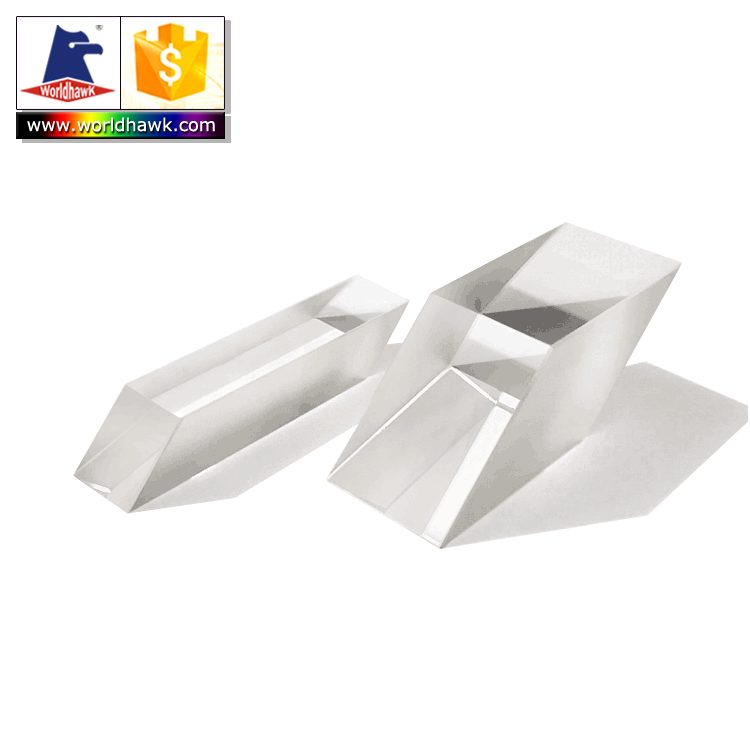

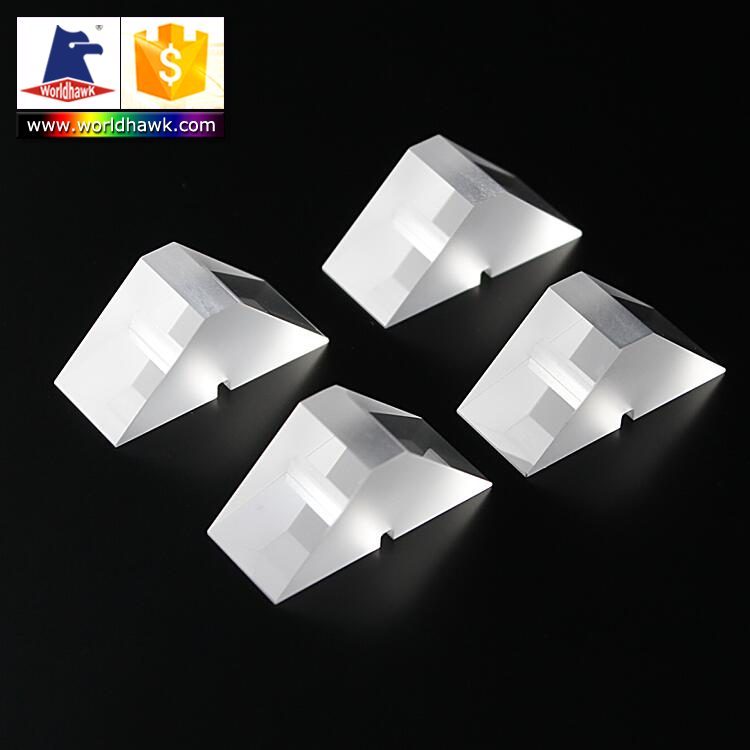

| Prism Type | Right Angle Prism, Penta Prism, Triangular Prism |
| Customized Support | OEM |
| Warranty | 3 Years |
| Surface Flatness | 1/2 Lanbda, 1/4 Lanbda |
| Dimension | 50-100mm |
| Dimension Tolerance | ±0.1mm / ±0.2mm |
| Angle Tolerance | <3’- <0.5'' |
| Clear Aperture | ≥90% |
| Bevel | <0.2 mm ±45° |
FAQ
Can I get custom sizes?
Yes, dimensions can be customized from 50mm to 100mm.
What are the tolerances for dimensions?
Dimension tolerance is ±0.1mm / ±0.2mm.
