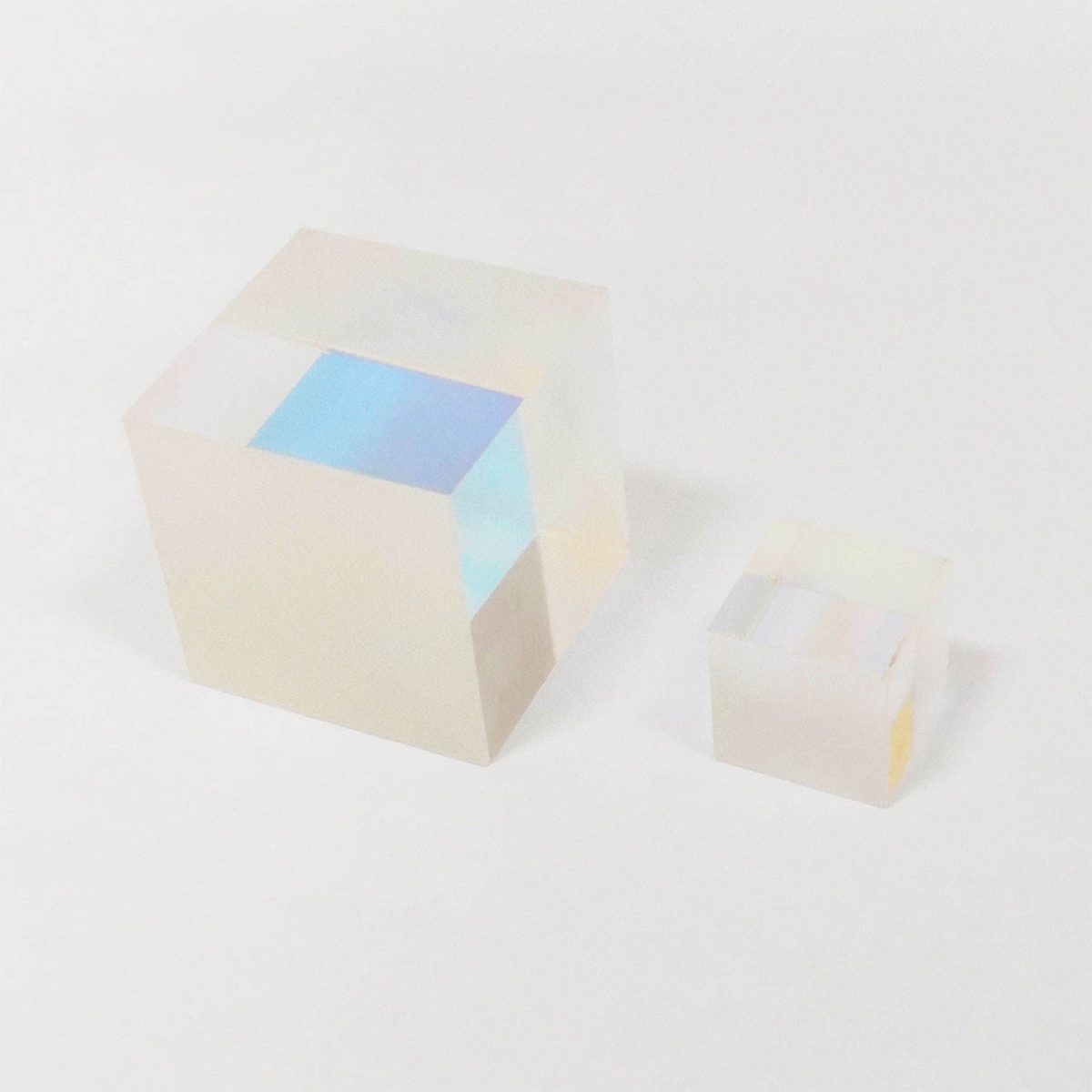

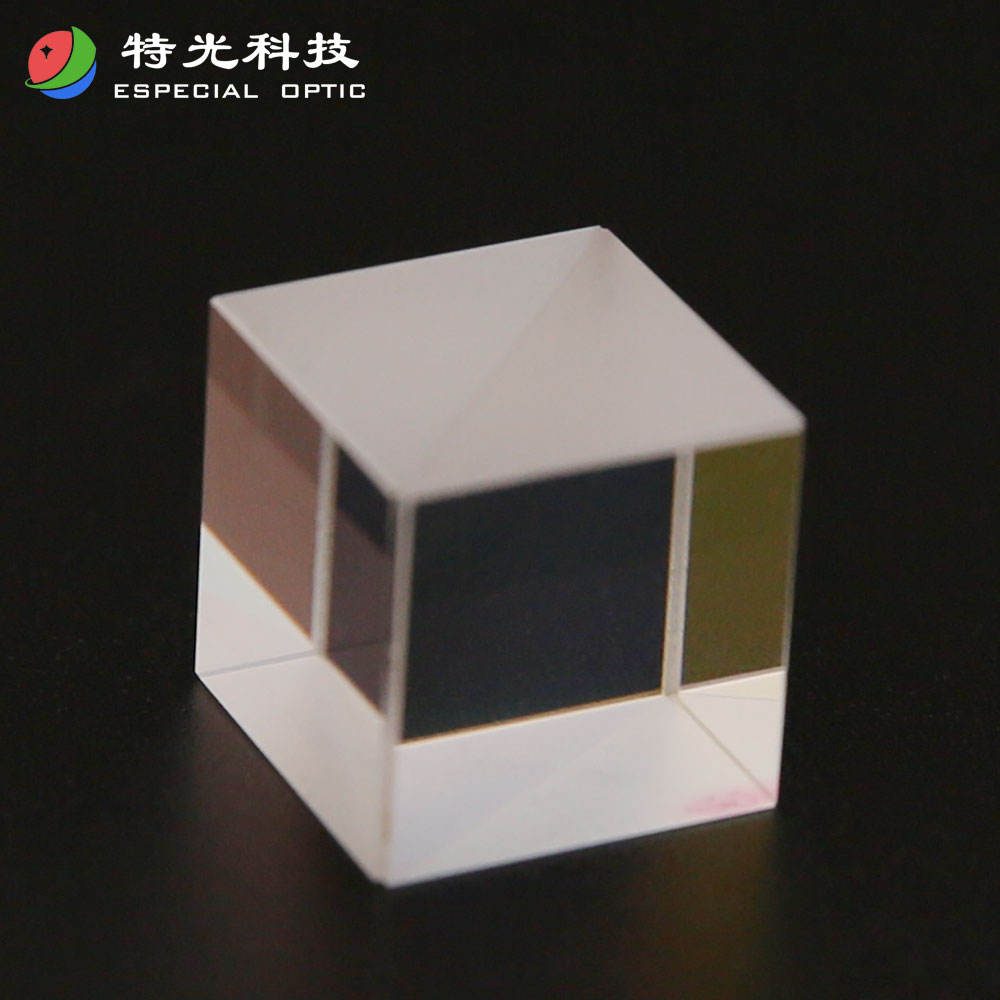

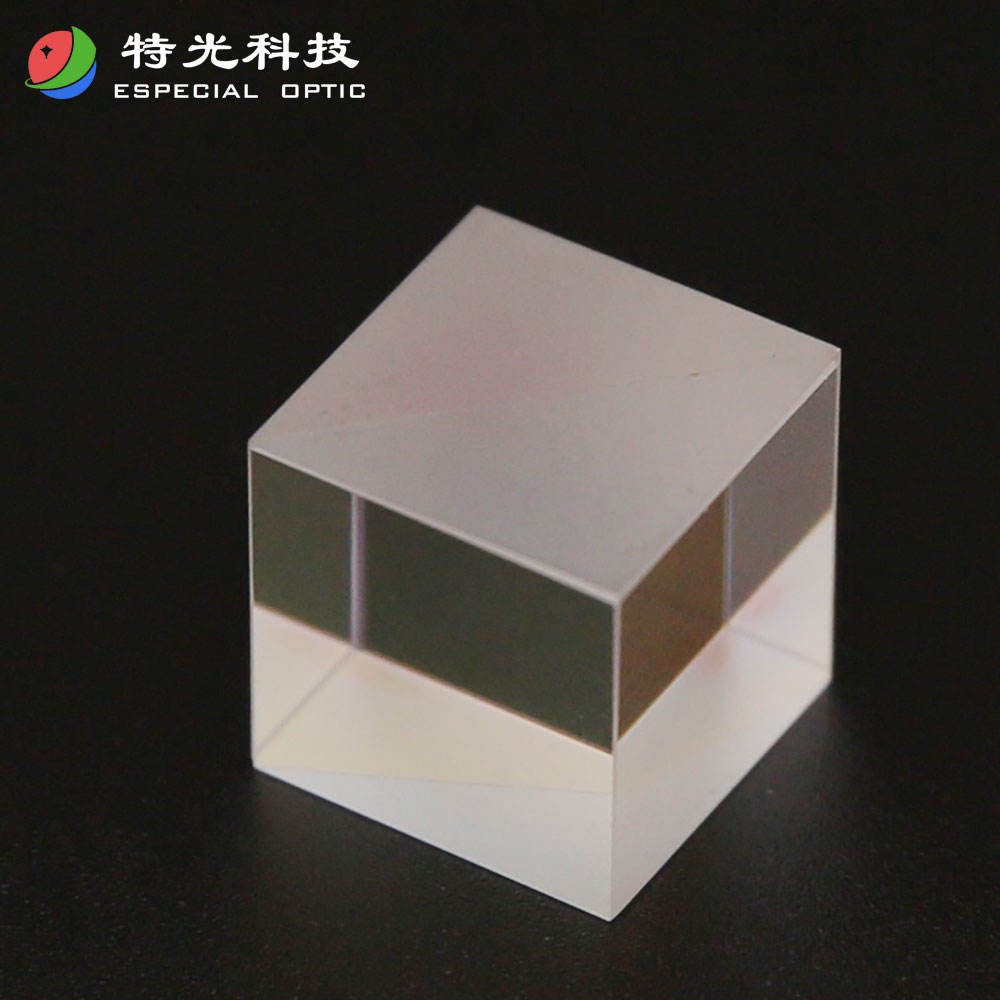

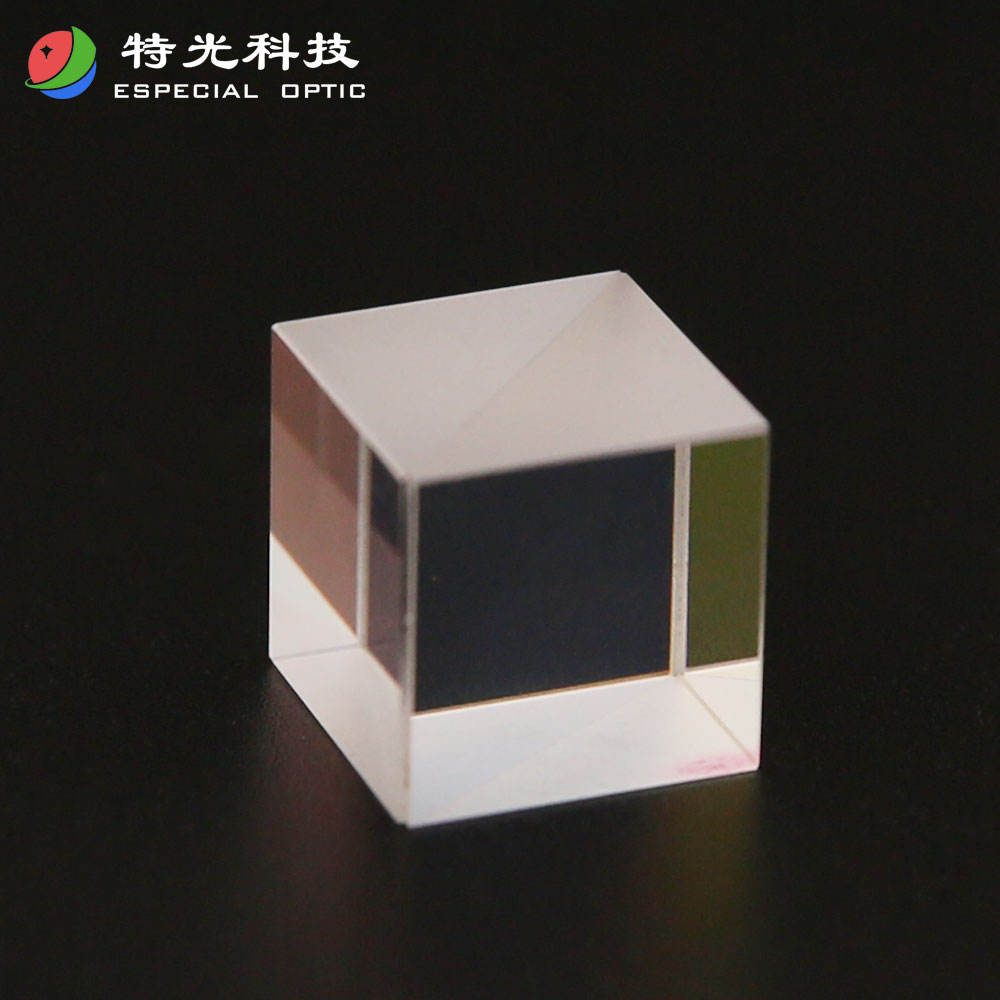

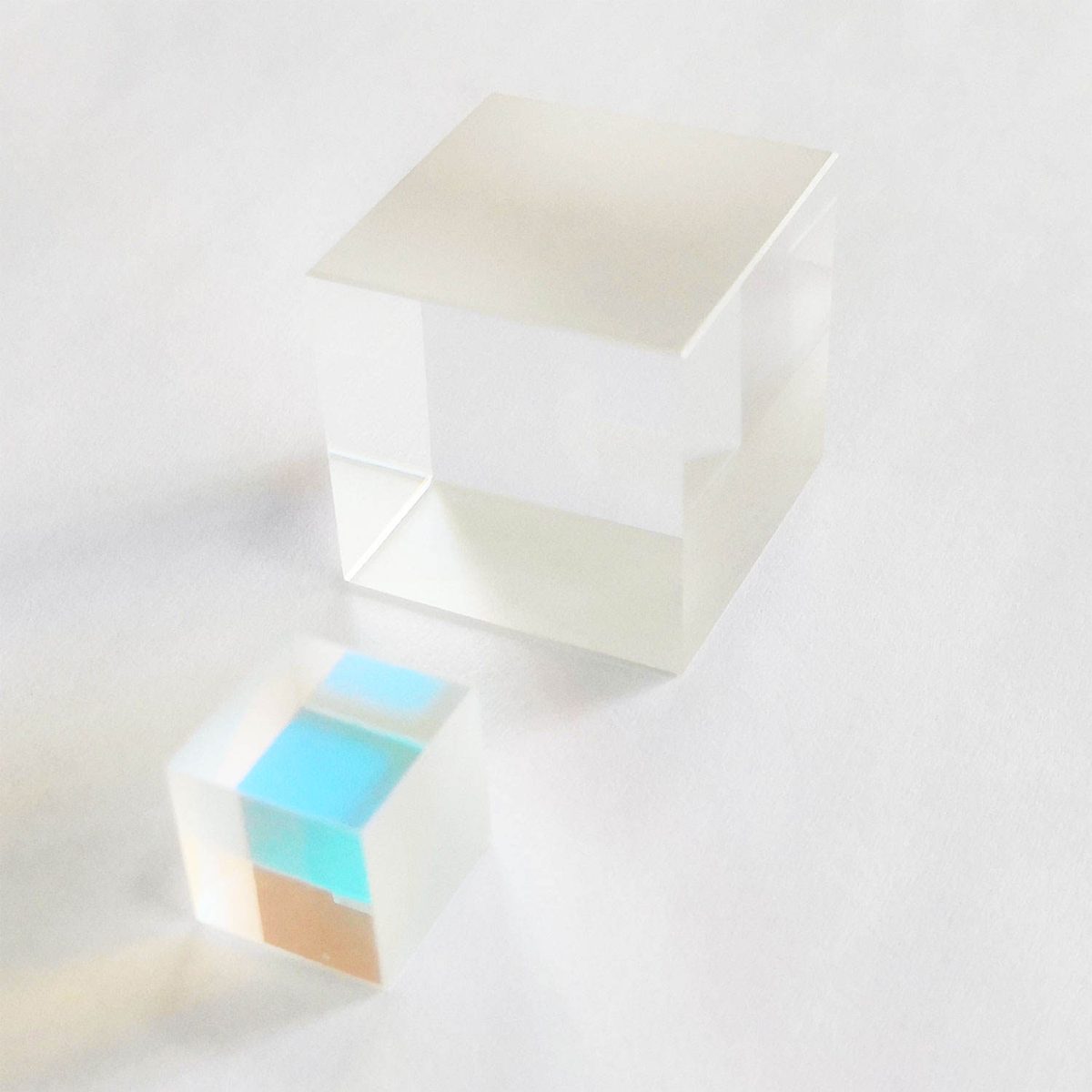

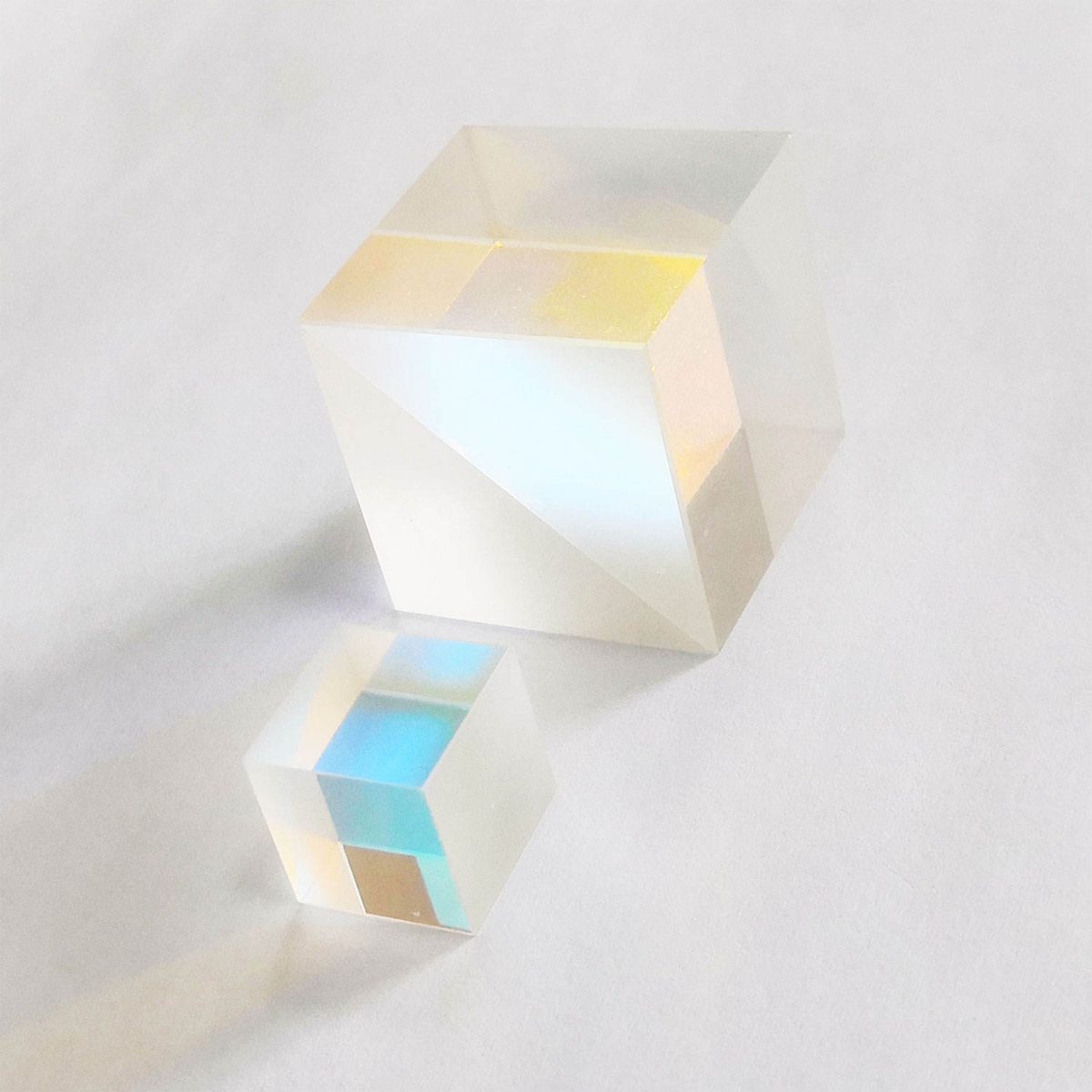

5 mm BK7 Cube Beamsplitter, AR Coated
Explore our BK7 cube beamsplitter with a 50/50 split ratio and high surface quality for precision applications.
Core attributes
- Material
- BK7
- Shape
- Cube
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 1/4
- Split Ratio
- 50/50
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Cube
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 1/4
- Split Ratio
- 50/50
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This BK7 cube beamsplitter is designed for applications requiring precise light division across a wide spectral range of 0.7-1.7 μm and 400-700 nm. With a 50/50 split ratio and high surface quality of 1/4, it is ideal for laser, machine vision, and microscopy applications. Its robust construction ensures reliable performance in demanding environments, making it a versatile choice for R&D and procurement engineers.
Key Features
- 50/50 split ratio for balanced light division, enhancing measurement accuracy.
- Surface quality of 1/4 ensures minimal distortion, improving image clarity.
- Extinction ratio greater than 500:1 for effective light separation.
- Dimension tolerance of ±0.2mm guarantees consistent sizing for reliable integration.
- Clear aperture of ≥90% maximizes light throughput, optimizing system performance.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Cube |
| Size | 5 mm |
| Thickness | Custom |
| Surface Quality | 1/4 |
| Split Ratio | 50/50 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 month |
| Materail | BK7/K9 |
| Extinction Ratio | >500:1 |
| Dimension Tolerance | ±0.2mm |
| Clear Aperture | ≥90% |
| Bevel | Protective Bevel |
FAQ
Can I get custom sizes for this beamsplitter?
Custom sizes are available, allowing for tailored solutions to fit specific applications.
What is the minimum order quantity (MOQ) for this product?
The minimum order quantity is not specified, providing flexibility for various procurement needs.
