1 / 5Beamsplitters

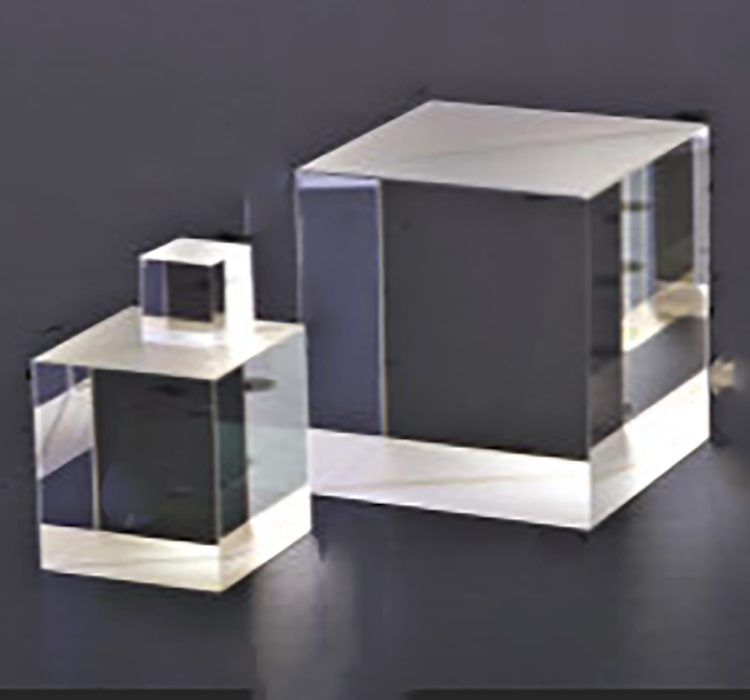

5 mm BK7 Cube Beamsplitter, AR Coated
Explore our BK7 beamsplitter cube with 60/40 surface quality and 95% clear aperture, suitable for various optical applications.
Core attributes
- Material
- BK7
- Shape
- Cube
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Cube
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
This BK7 beamsplitter cube is designed to meet the needs of various optical applications, providing reliable performance in beam splitting. With a surface quality of 60/40 and a clear aperture of 95%, it ensures minimal distortion and high transmission efficiency. The beamsplitter is suitable for integration into laser systems, machine vision, and other optical setups requiring precise light management.
Key Features
- Surface quality of 60/40 for reduced distortion and improved image clarity.
- Clear aperture of 95% to maximize light throughput.
- Surface flatness of 1/4@633nm for enhanced optical performance.
- Available in sizes ranging from 5.0 mm to 150.0 mm for versatile applications.
- Supports OEM and ODM customization for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Cube |
| Size | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | beamsplitter cube |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Surface Flatness | 1/4@633nm |
| Clear Aperture | 95% |
FAQ
What are the available sizes for this beamsplitter?
The beamsplitter is available in sizes ranging from 5.0 mm to 150.0 mm.
Is custom sizing available?
Yes, the beamsplitter supports OEM and ODM customization.
