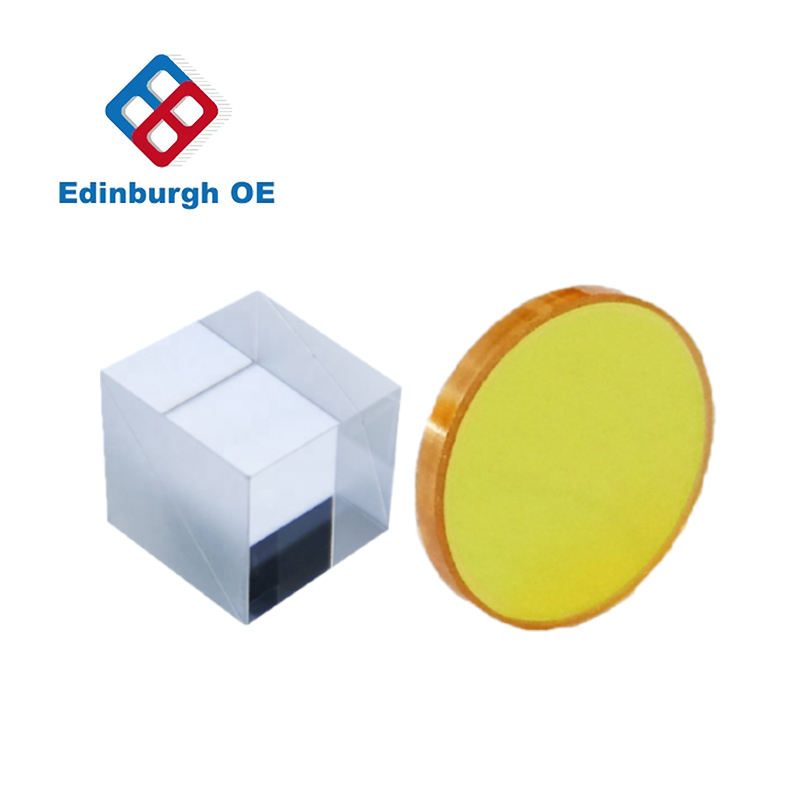

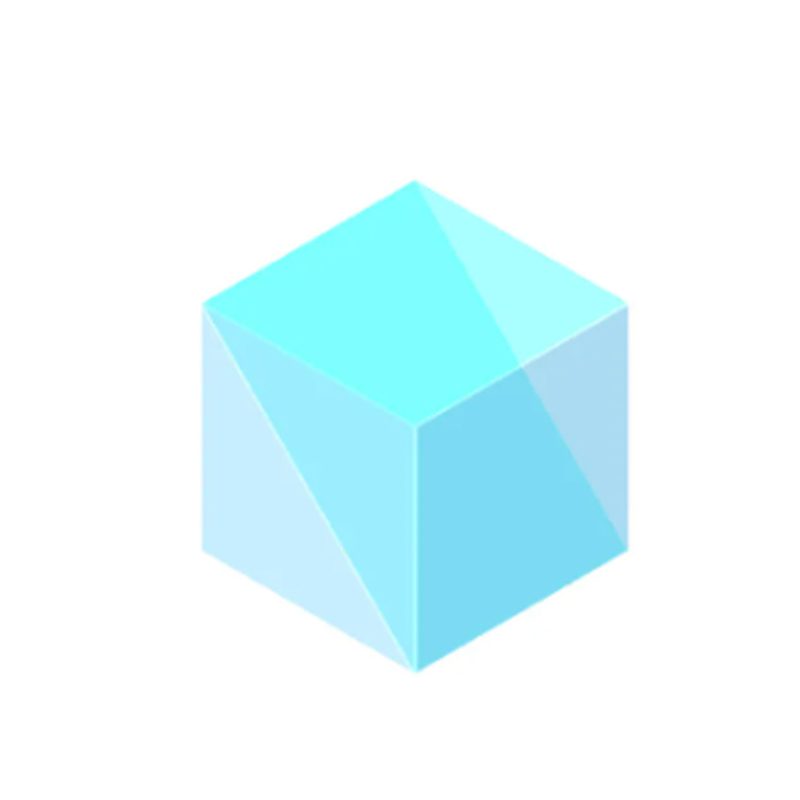

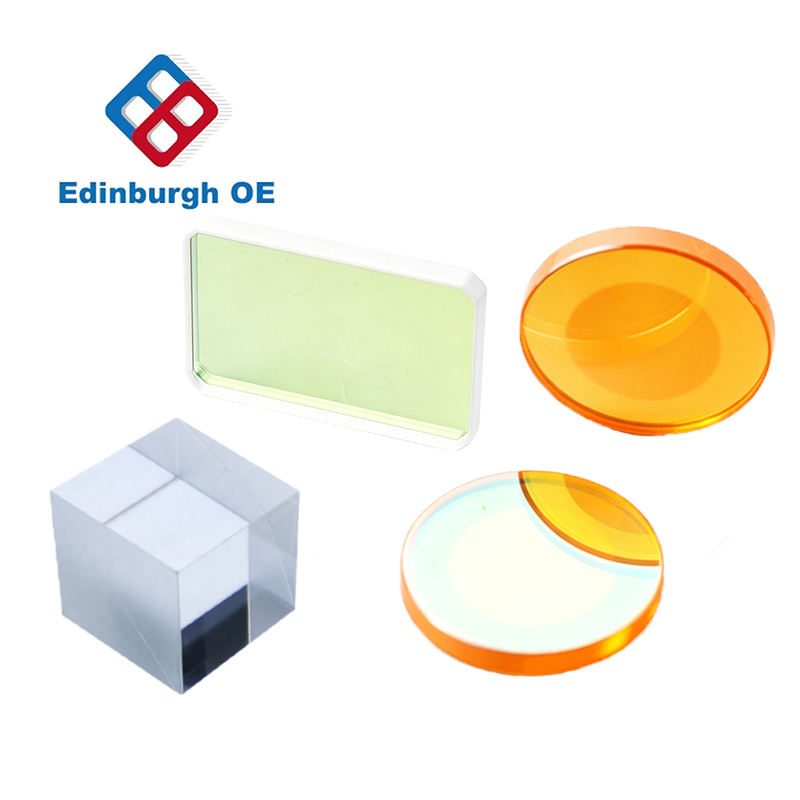

Custom Size BK7 Cube Beamsplitter, AR Coated

Product description

This BK7 beamsplitter is designed for applications across various wavelengths, including laser systems operating in the 8-14 μm, 0.7-1.7 μm, and 400-700 nm ranges. Its versatile coatings and high clear aperture (>90%) ensure optimal performance in demanding environments. Ideal for R&D and industrial applications, this beamsplitter provides reliable performance tailored to specific wavelength needs.

Key Features

Customizable wavelengths (355nm, 532nm, 1064nm, 9.4μm, 10.6μm) for tailored application fit.
High clear aperture (>90%) enhances light transmission and efficiency.
Dimension tolerance of ±0.2mm/+0/-0.13mm ensures precise fit in optical setups.
AR coatings improve transmittance across multiple bands for effective splitting.

Applications

Laser

Specification Summary

Item	Value
Material	BK7
Shape	Cube
Size	Custom
Thickness	Custom
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	beam splitter
Wavelength	Custom/355nm, 532nm, 1064nm, 9.4μm, 10.6μm
Dimension Tolerance	±0.2mm/+0/-0.13mm
Clear Aperture	>90%

FAQ

Can I get custom sizes for this beamsplitter?

Custom sizes are not specified, but the beamsplitter can be tailored for specific wavelengths.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified in the data provided.
