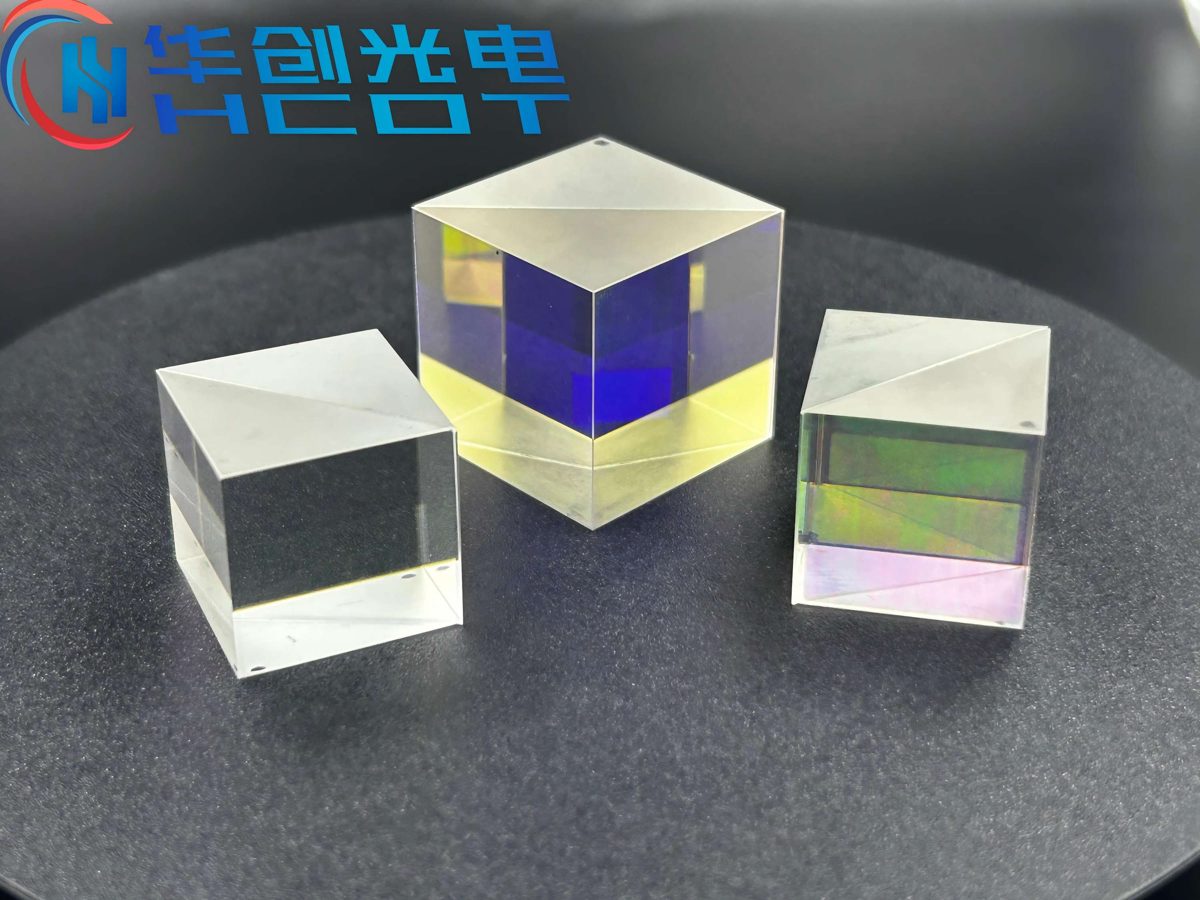

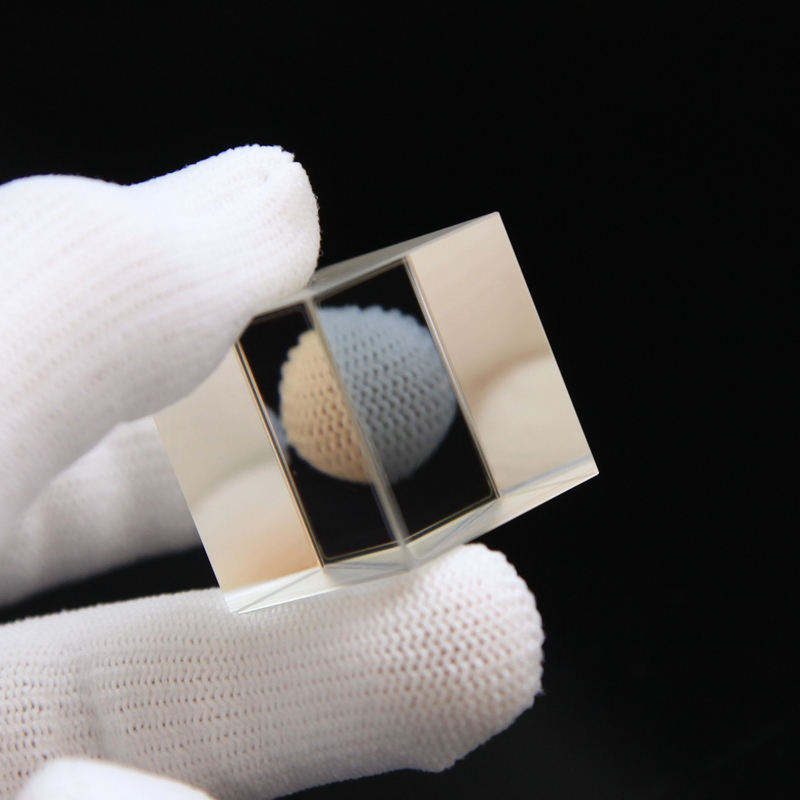

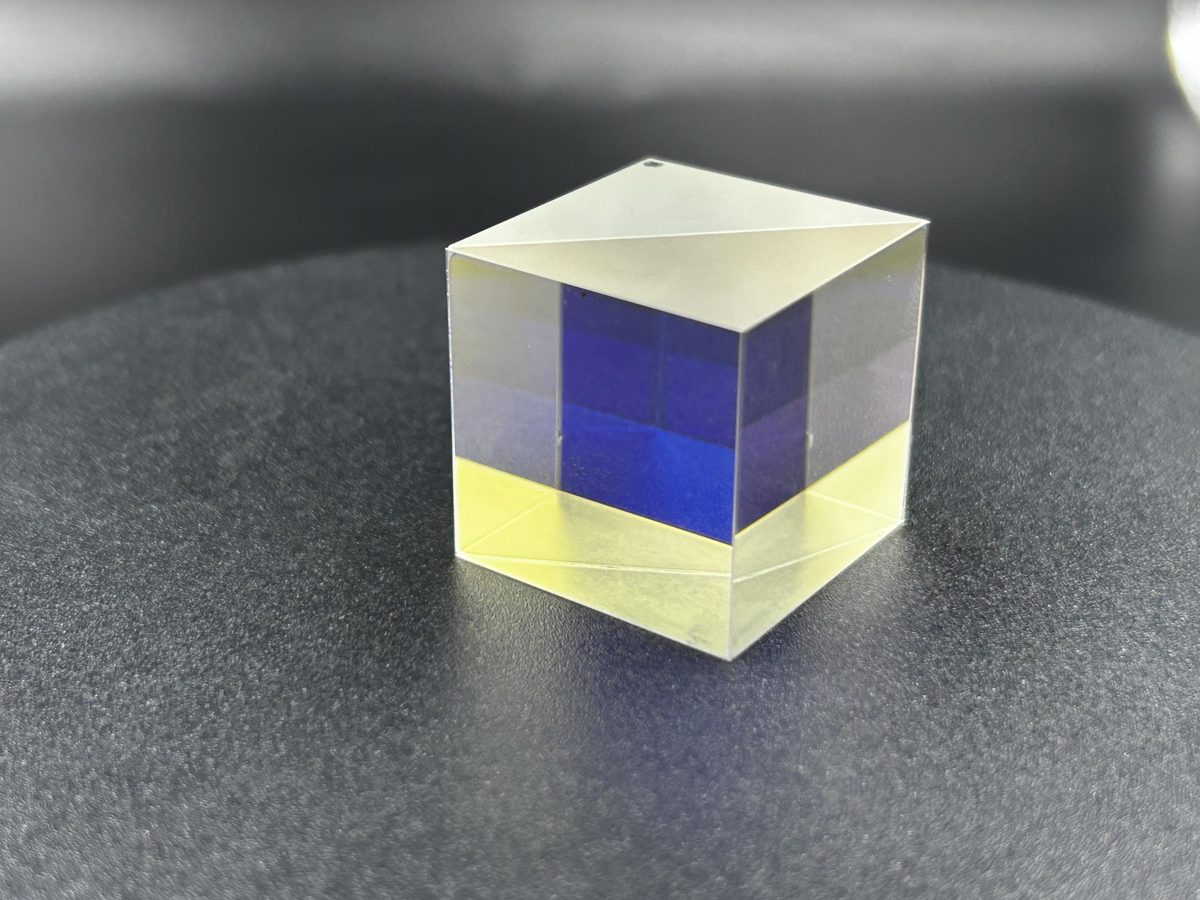

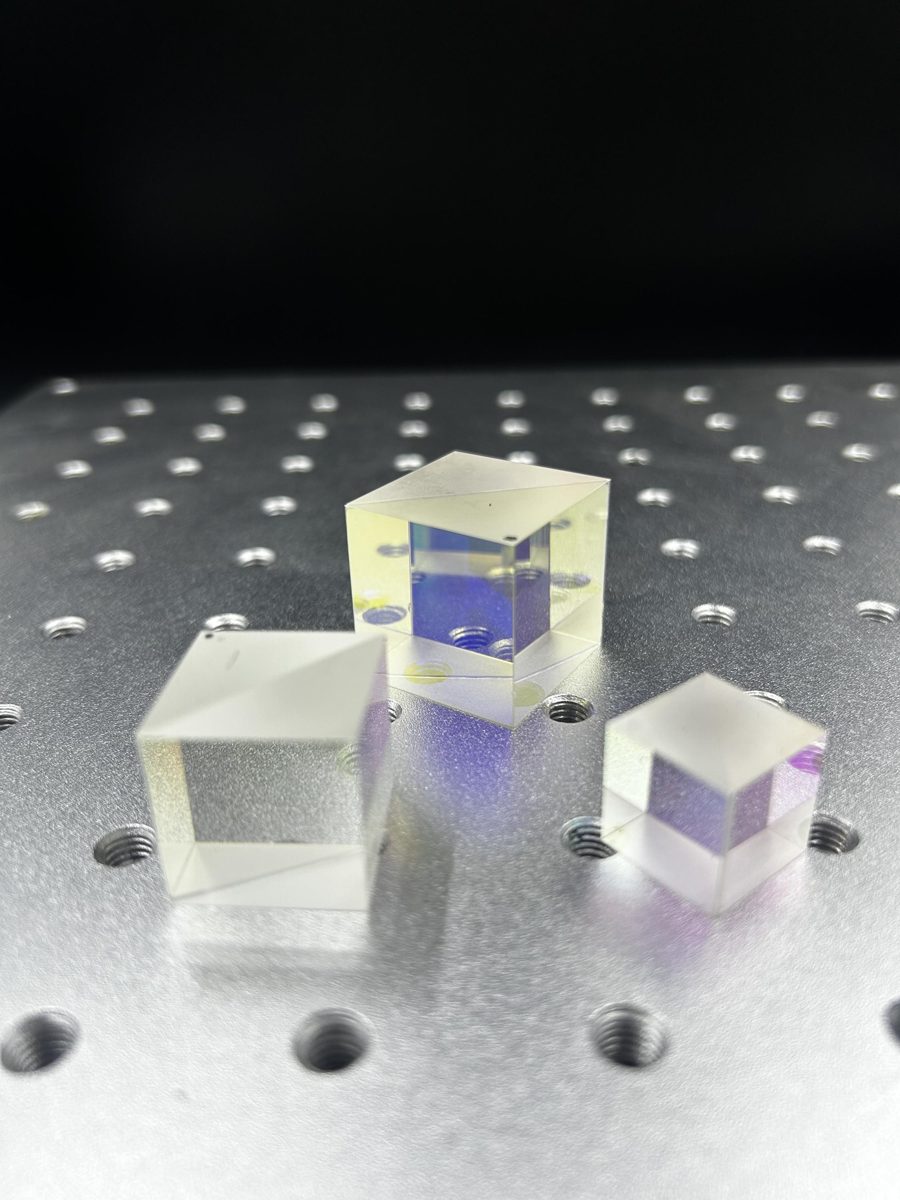

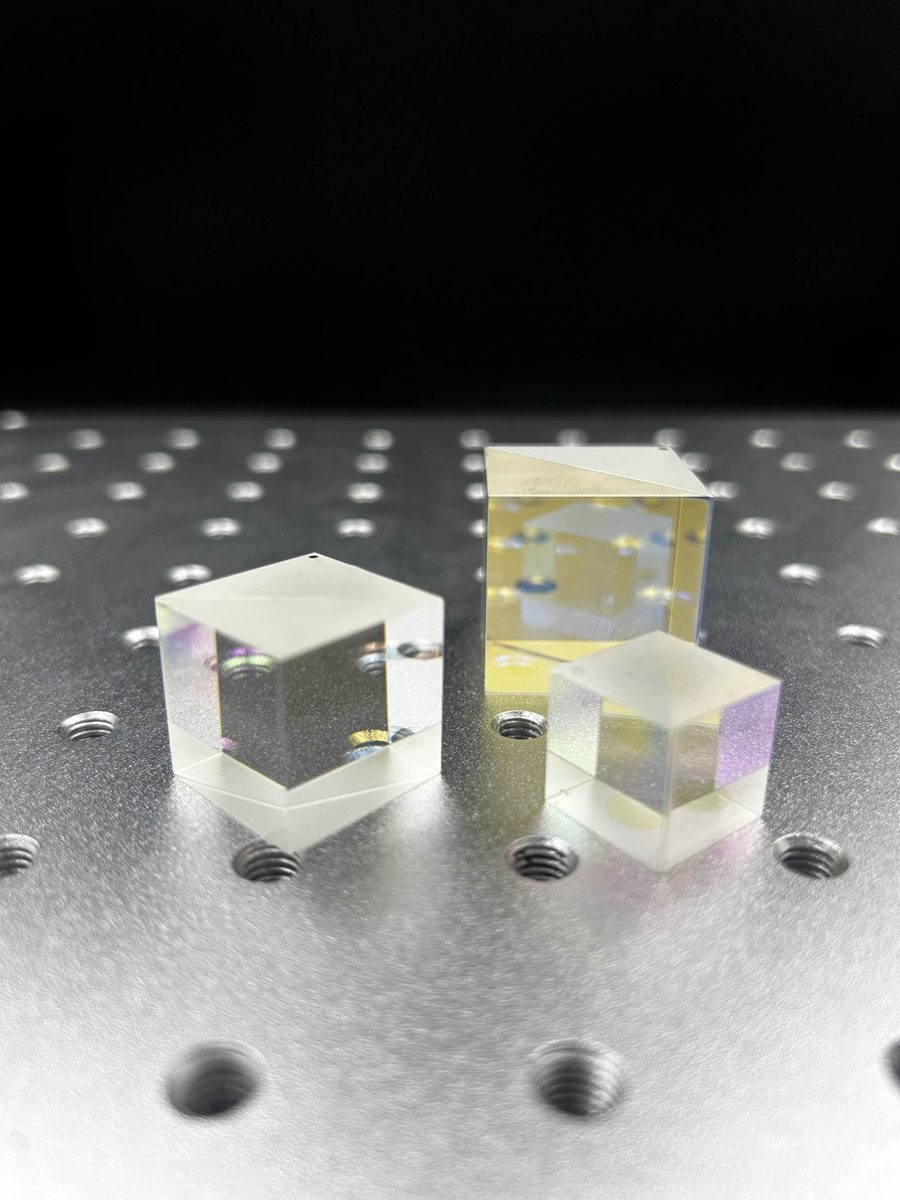

Custom Size BK7 Cube Beamsplitter, AR Coated
BK7 cube beamsplitter with AR coating for medical and research applications, offering high transmittance and customizable options.
Core attributes
- Material
- BK7
- Shape
- Cube
- Size
- Custom
- Thickness
- Custom
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Cube
- Size
- Custom
- Thickness
- Custom
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This BK7 cube beamsplitter is designed to enhance optical performance in medical and research applications. With a wide wavelength range of 400-700 nm, 0.7-1.7 μm, and 1.7-3 μm, it effectively splits light while minimizing reflection and maximizing transmission. The AR coating ensures reduced glare and improved light transmission, making it ideal for precision tasks in endoscopy and scientific research.
Key Features
- High transmittance (TP > 95%) ensures optimal light passage for accurate measurements.
- AR coating minimizes glare, enhancing clarity in medical and research applications.

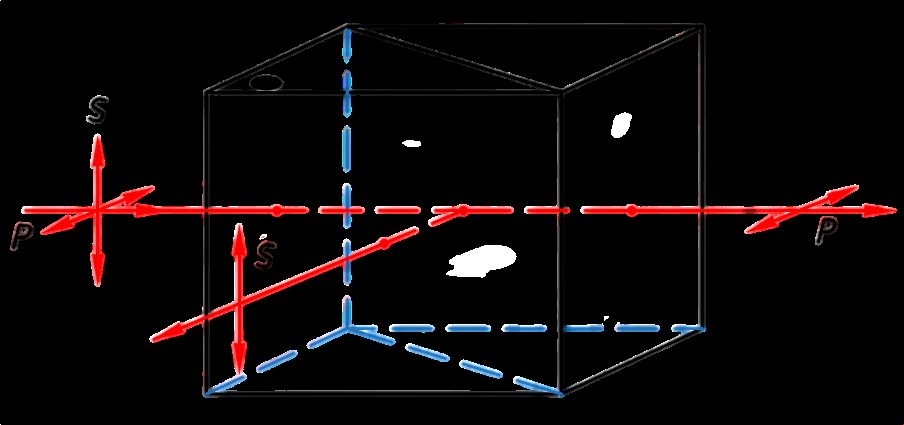

- Extinction ratio of 1000:1 provides superior performance in polarization applications.
- Flatness of 1/4 @ 632.8nm per 25mm ensures high precision in optical setups.
- Customizable support for OEM, ODM, and OBM allows tailored solutions for specific needs.
Applications
Medical, Research
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Cube |
| Size | Custom |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Polarizing |
| Customized Support | OEM, ODM, OBM |
| Wavelength Range | 532nm,633nm,780nm,850nm,808nm,975nm,1030nm, 1550nm,1940nm |
| Materail | N-SF1/K9/BK7 |
| Transmission | TP > 95%,Ts<0.1% |
| Reflection | RS avg > 99%,Rp<5% |
| Flatness | 1/4 @ 632.8nm per25mm |
| Laser Damage Threshold | >500mJ/cm2,20ns,20Hz,@1064nm |
| Extinction Ratio | 1000:1 |
FAQ
Are custom sizes available?
Custom sizes can be supported through OEM, ODM, and OBM options.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible procurement.
