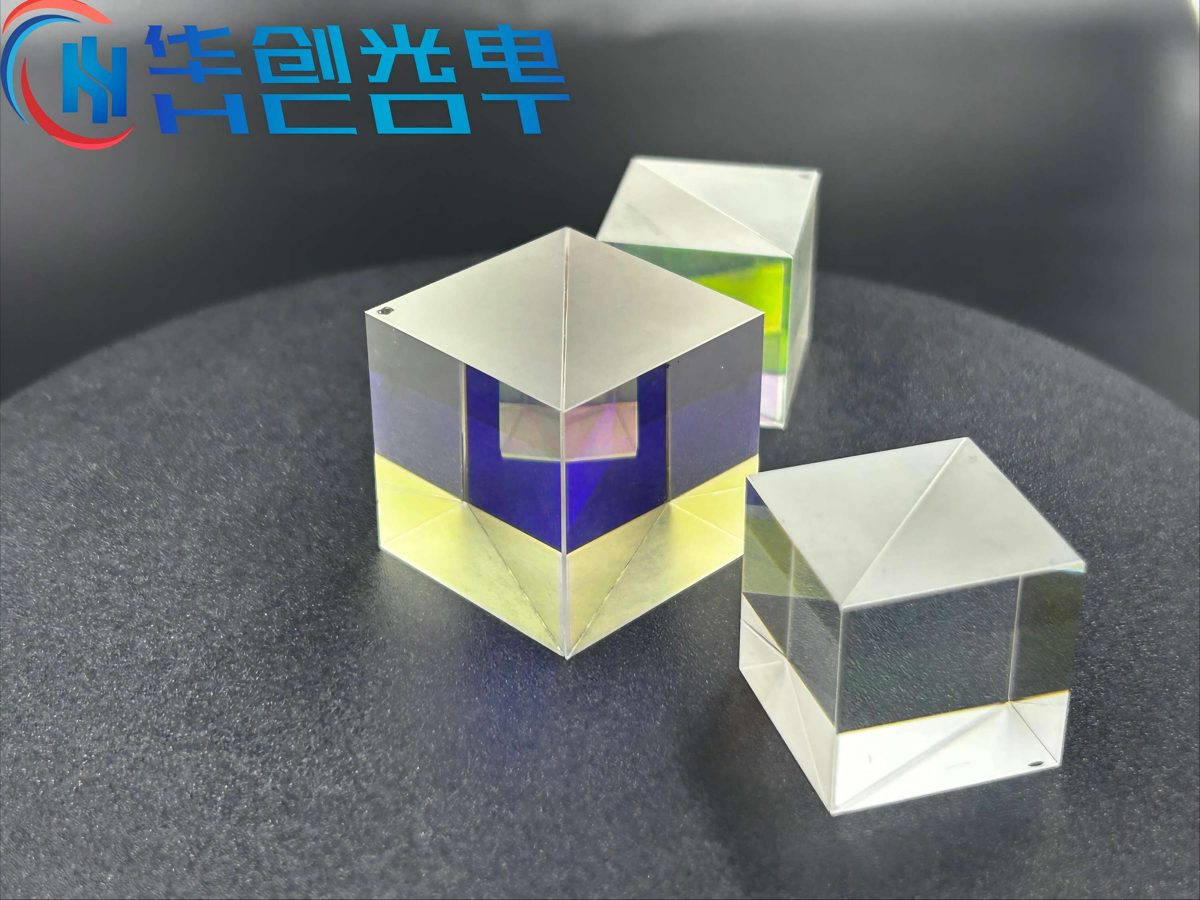

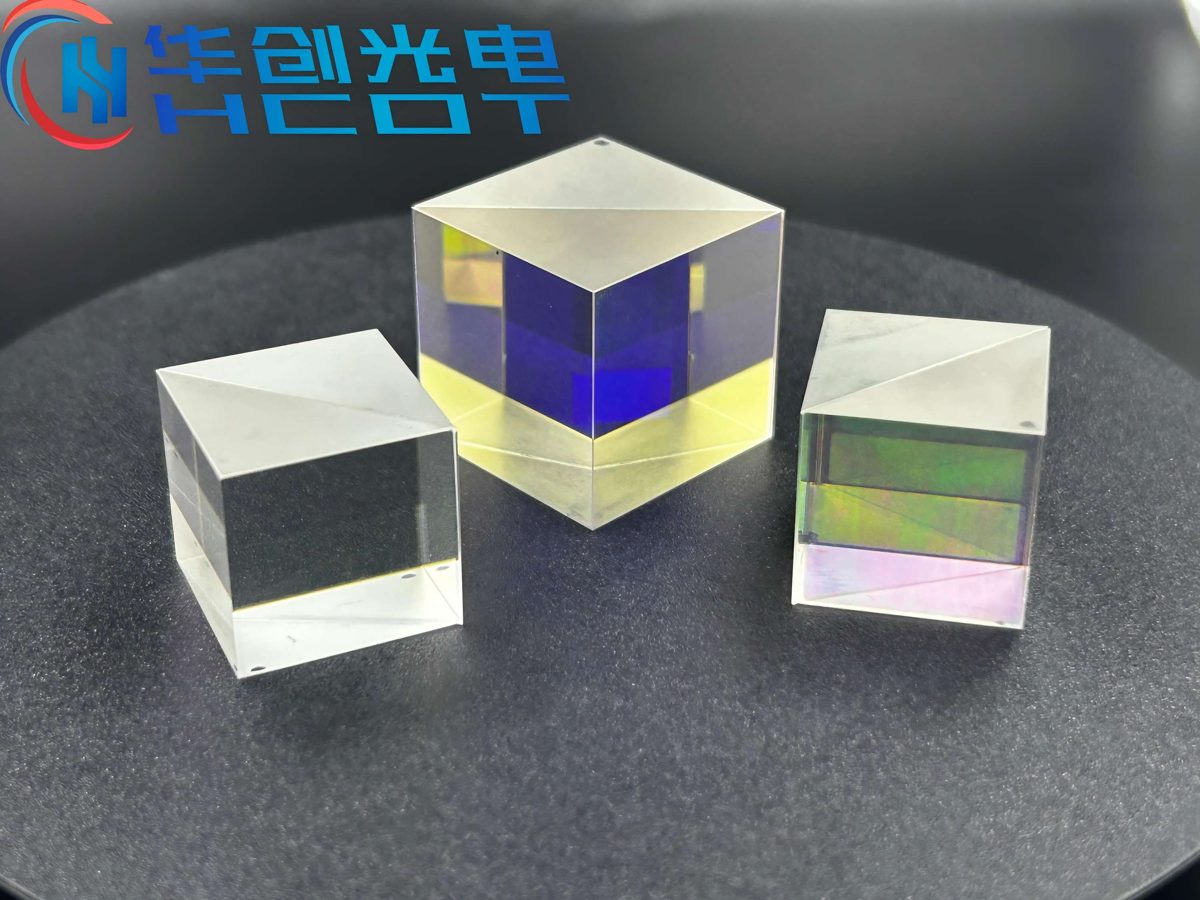

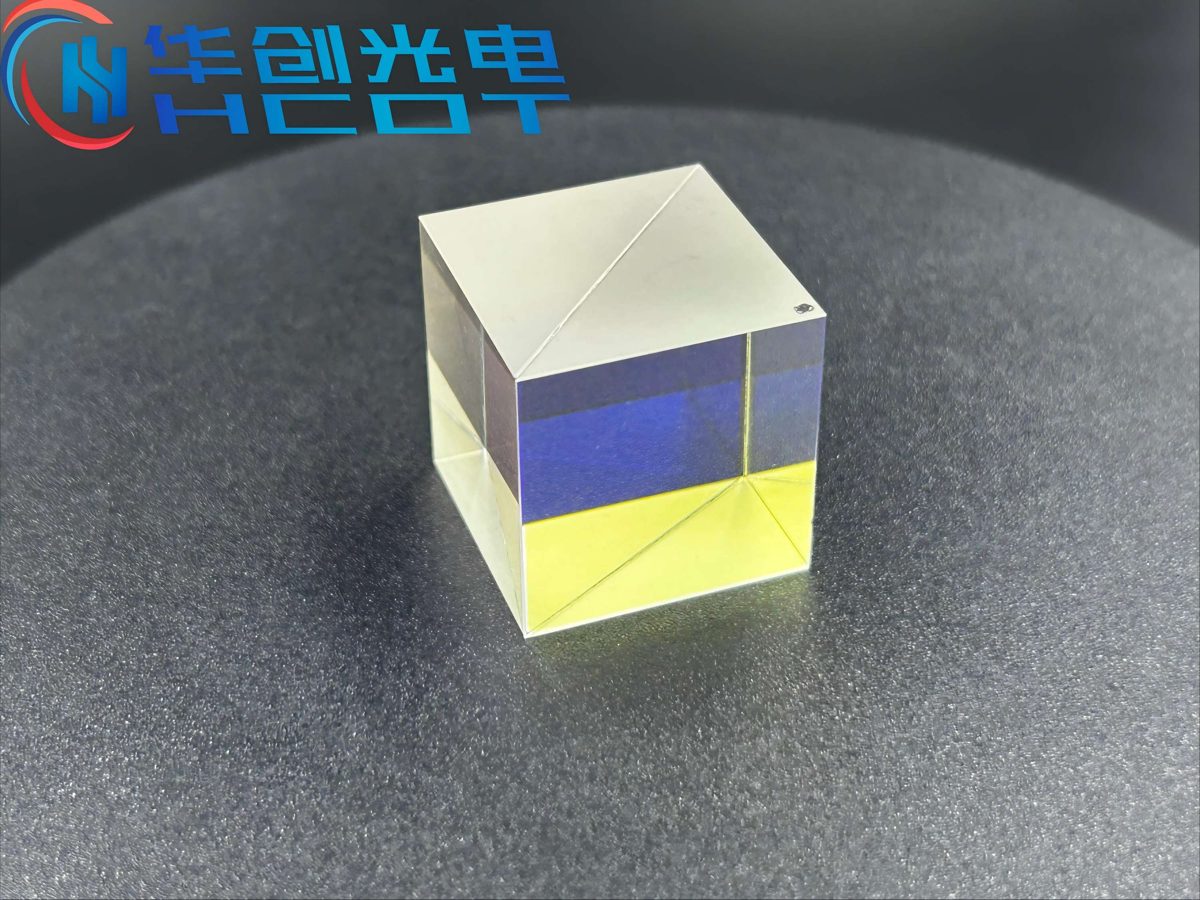

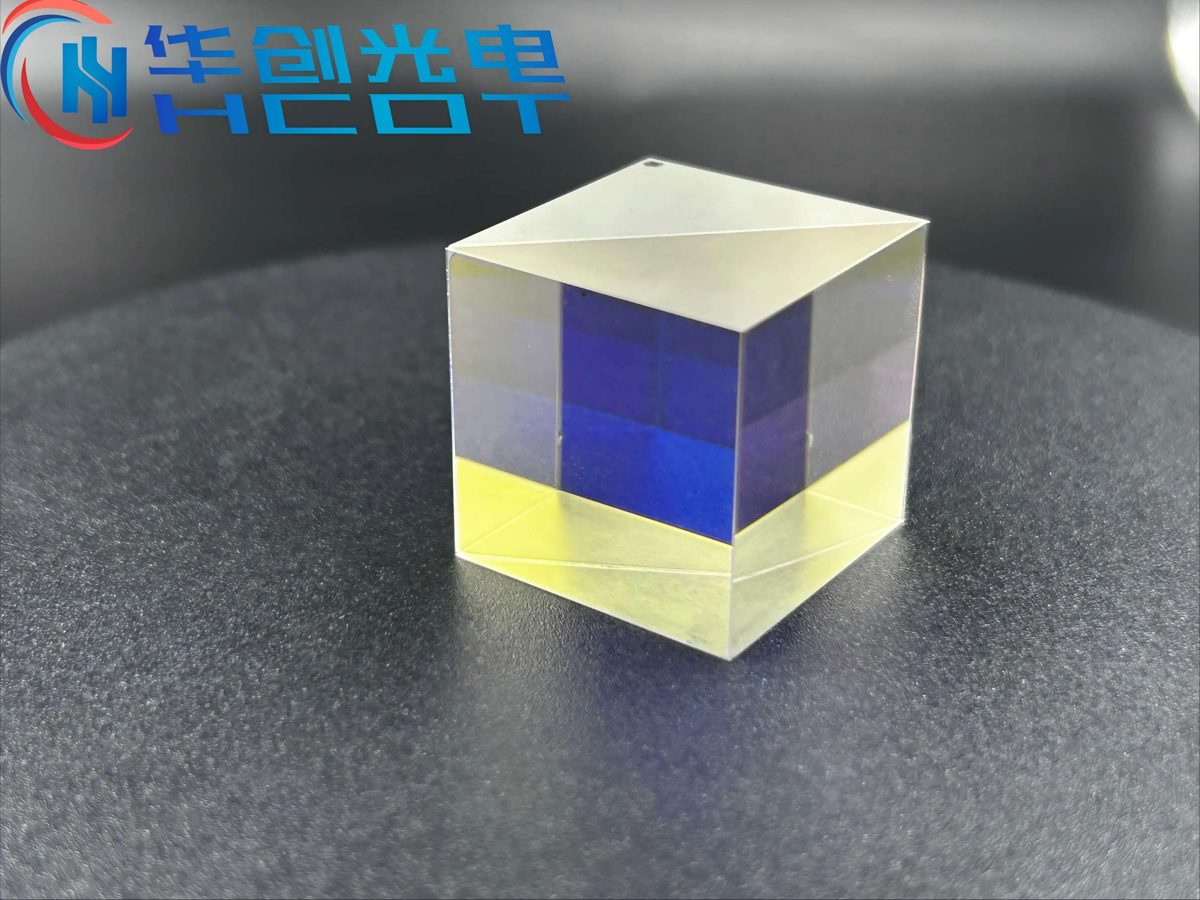

Custom Size BK7 Cube Beamsplitter
Polarizing beamsplitter for laser, imaging, and research with high extinction ratio and robust design.
Core attributes
- Material
- BK7
- Shape
- Cube
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Cube
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This polarizing beamsplitter is designed for applications in laser, imaging, and research, effectively separating light into its component polarizations. With a wavelength range spanning from 400 nm to 2000 nm, it is suitable for various optical systems. The high extinction ratio of 1000:1 ensures precise light separation, enhancing imaging quality. Its robust construction guarantees longevity in demanding laboratory environments, making it a reliable choice for R&D and procurement engineers.
Key Features
- Wavelength range of 400 nm to 2000 nm for versatile application fit.
- High extinction ratio of 1000:1 ensures optimal light separation.
- Robust construction for longevity in demanding laboratory environments.

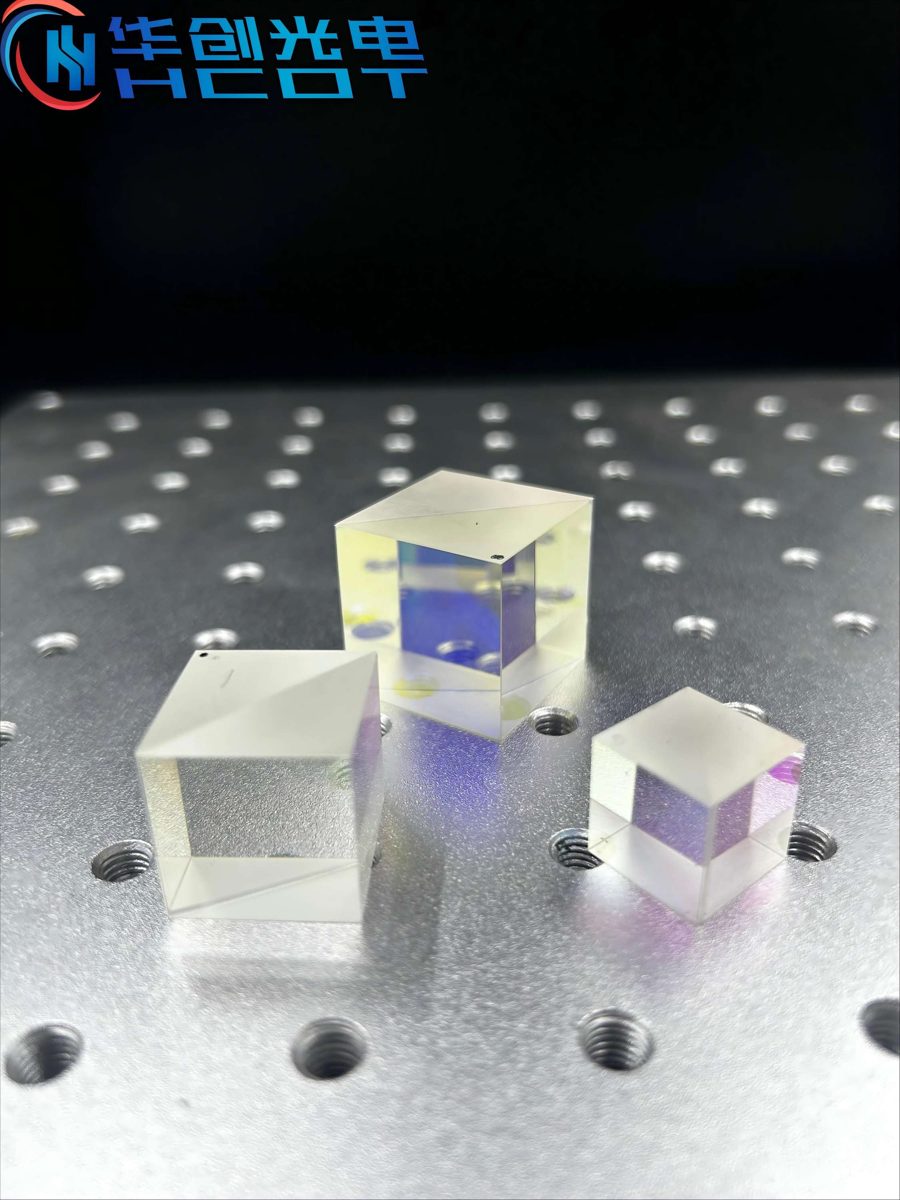

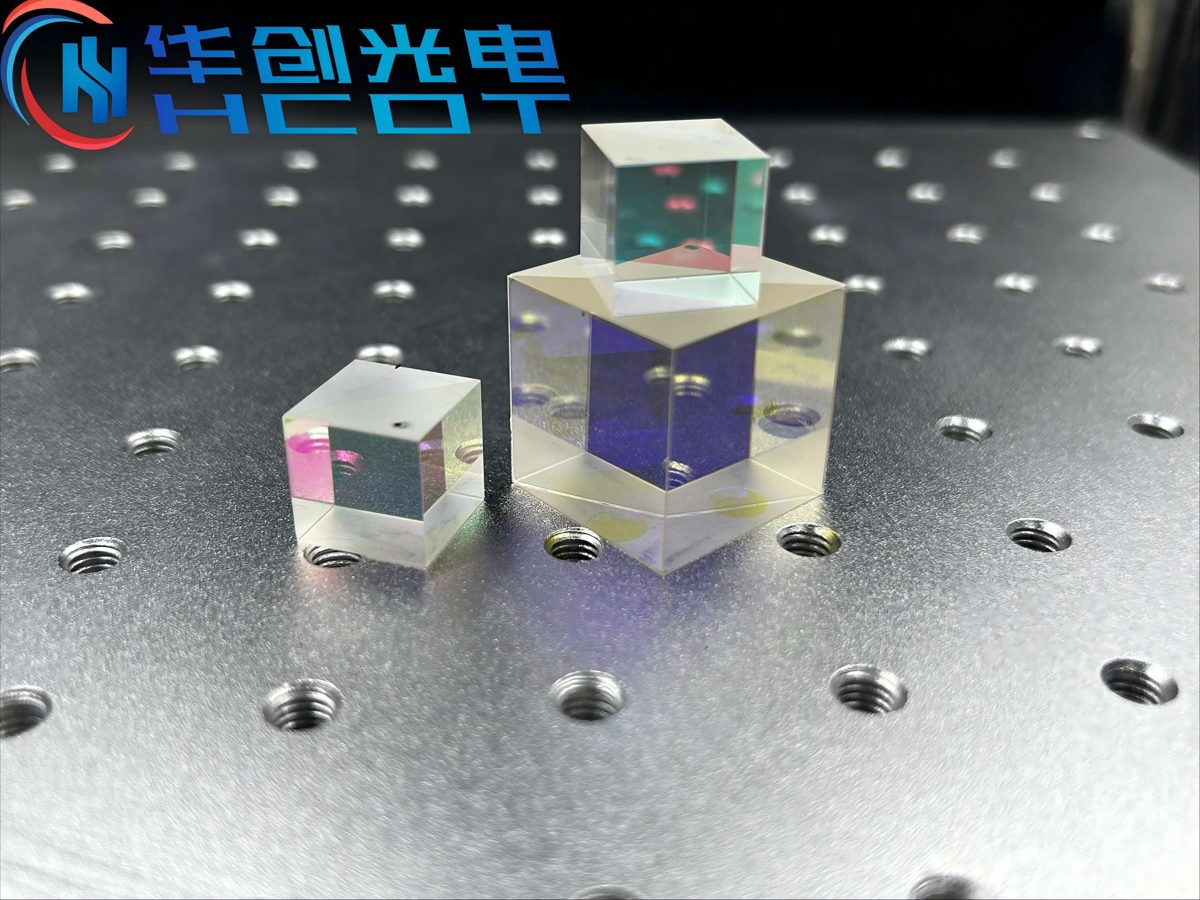

- Multiple sizes available (10/12.7/25.4 mm) to cater to various optical systems.
- Laser damage threshold of >5 J/cm² for durability in high-performance setups.
Applications
Laser, Imaging, Research
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Cube |
| Size | Custom |
| Thickness | Custom |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Polarizing |
| Customized Support | OEM, ODM, OBM |
| Wavelength Range | 400nm-2000nm,532nm,633nm,780nm,850nm,808nm,975nm,1030nm, 1550nm,1940nm |
| Materail | N-SF1/Fused Silica/K9/ZF3 |
| Transmission | TP > 95%,Ts<0.1% |
| Reflection | RS avg > 99%,Rp<5% |
| Flatness | 1/4 @ 632.8nm per25mm |
| Laser Damage Threshold | >5J/cm2,20ns,20Hz,@1064nm |
| Extinction Ratio | 1000:1 |
FAQ
What sizes are available for this beamsplitter?
Multiple sizes are available, including 10 mm, 12.7 mm, and 25.4 mm options.
Is custom sizing available?
The product supports OEM, ODM, and OBM customization options.
