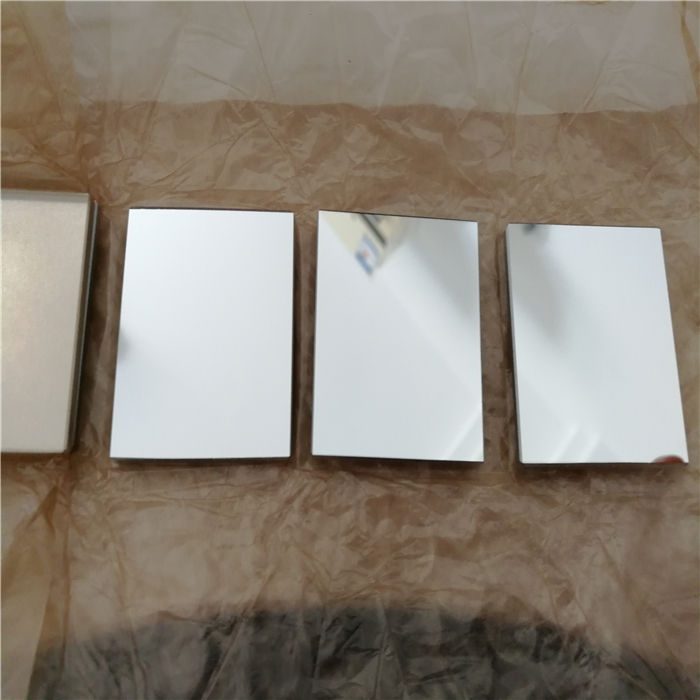

10 mm BK7 Custom Optical Mirror

Product description

This custom BK7 plano mirror is designed for applications requiring high reflectance across the 0.7-1.7 μm and 400-700 nm spectral bands. With options for aluminum and dielectric high reflectance coatings, this mirror is ideal for various optical setups, ensuring minimal light loss and optimal performance. Its front-surface construction prevents ghosting effects, making it suitable for precision applications.

Key Features

Custom sizes available from 10 mm to 350 mm, fitting specific application needs.
Coating options include aluminum and dielectric HR for enhanced reflectance and durability.
Front-surface design minimizes ghosting and double-reflection for improved image quality.
Tolerance of +/-0.05 mm to +/-0.1 mm ensures precise fit and performance.
OEM, ODM, and OBM support for tailored solutions and prototypes.

Specification Summary

Item	Value
Material	BK7
Shape	Custom
Size	10 mm
Thickness	Custom
Coating	aluminum, dielectric HR, front-surface
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Plano
Customized Support	OEM, ODM, OBM
Warranty	1 year
Weight	Based on size
Tolerance	+/-0.05mm to +/-0.1mm

FAQ

What custom sizes are available?

Custom sizes range from 10 mm to 350 mm, accommodating various application requirements.

What are the tolerances for these mirrors?

The mirrors have a tolerance of +/-0.05 mm to +/-0.1 mm, ensuring precise dimensions.
