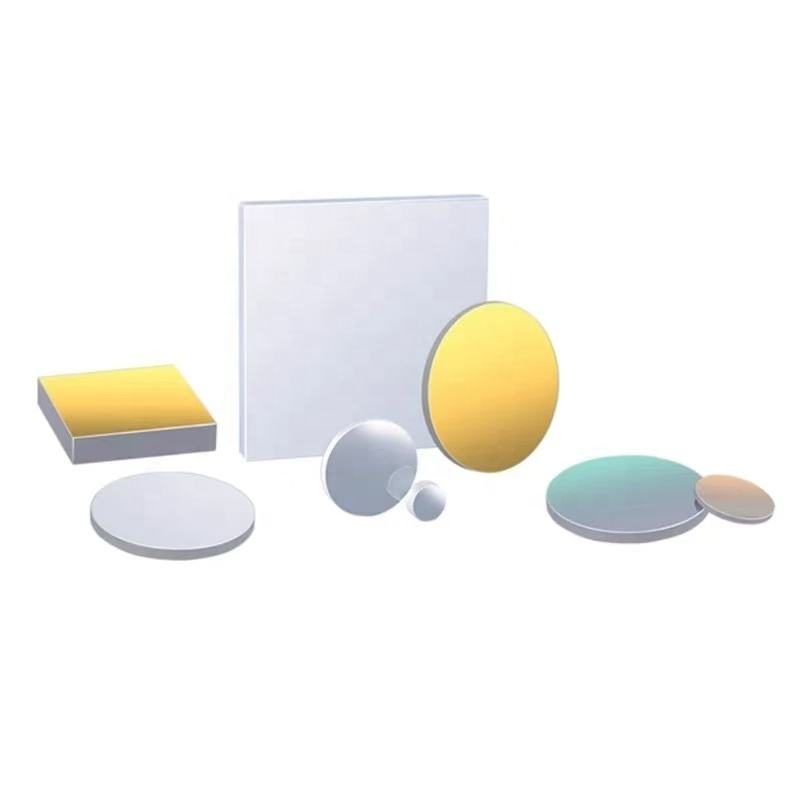

Custom Size BK7 Custom Optical Mirror
Custom BK7 mirror for 400-700 nm applications with <3 arcmin flatness and customizable sizes.
Core attributes
- Material
- BK7
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- VIS (400-700 nm)
Product description
This custom BK7 mirror is designed for applications requiring high precision in the 400-700 nm wavelength range. With a flatness specification of <3 arcmin, it ensures minimal wavefront distortion, making it suitable for laser and optical systems. The mirror’s customizable features allow for tailored solutions to meet specific project requirements, enhancing its versatility in various optical setups.
Key Features
- Custom sizes available to fit specific application needs.
- Flatness of <3 arcmin ensures high wavefront quality.
- Diameter tolerance of +/-0.01 mm for precise fitting.
- Bevel of 0.2 mm at 45 degrees to reduce edge effects.
- Lightweight design at 0.5 kg for easy integration.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Custom |
| Size | Custom |
| Thickness | Custom |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | flatness |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Diameter Tolerance | +/-0.01mm |
| Bevel | 0.2mm* 45 DEGREE |
| Wavelength | 10@633nm |
| Flatness | <3 arcmin |
FAQ
Can I get custom sizes for this mirror?
Yes, custom sizes are available to meet specific application requirements.
What is the flatness tolerance of the mirror?
The mirror has a flatness specification of <3 arcmin.
