1 / 6Optical Prisms

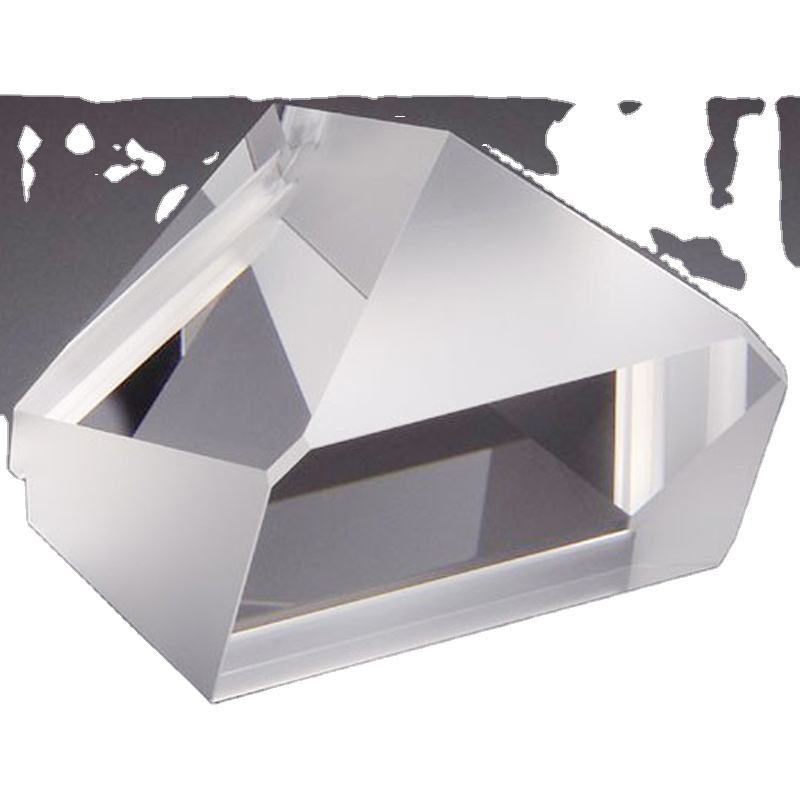

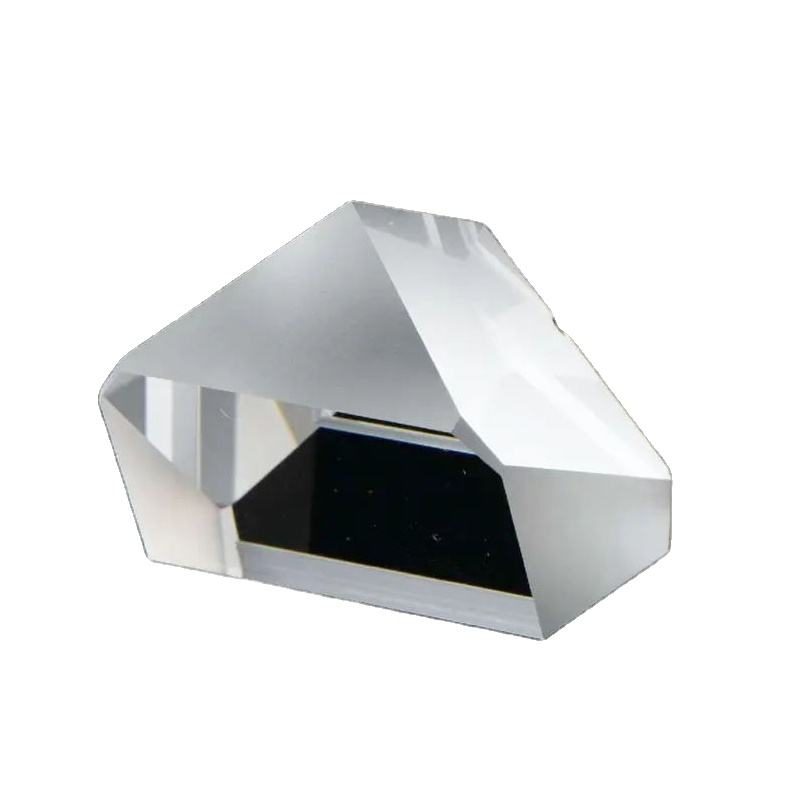

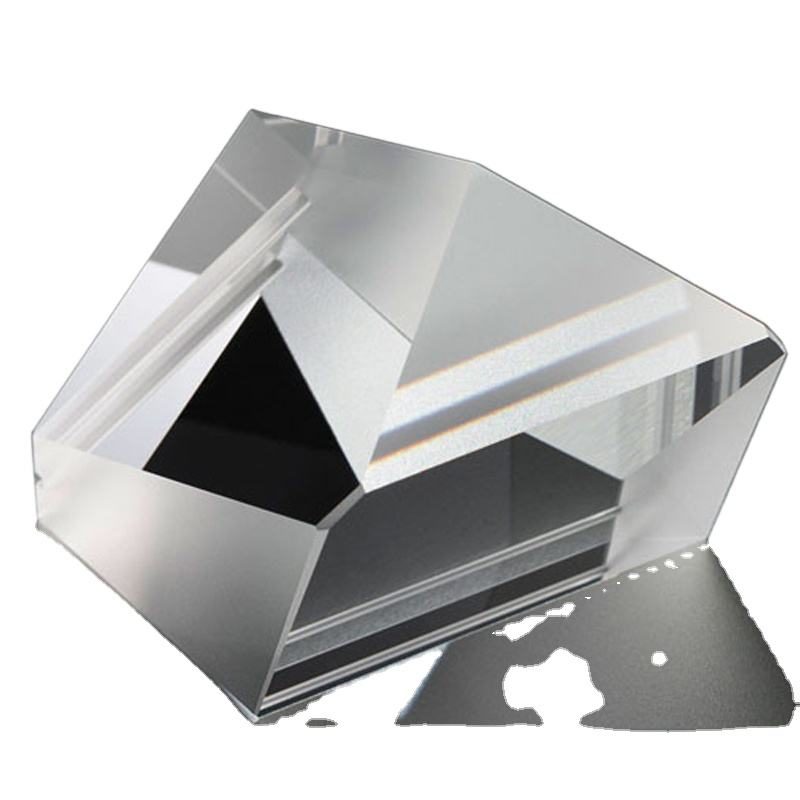

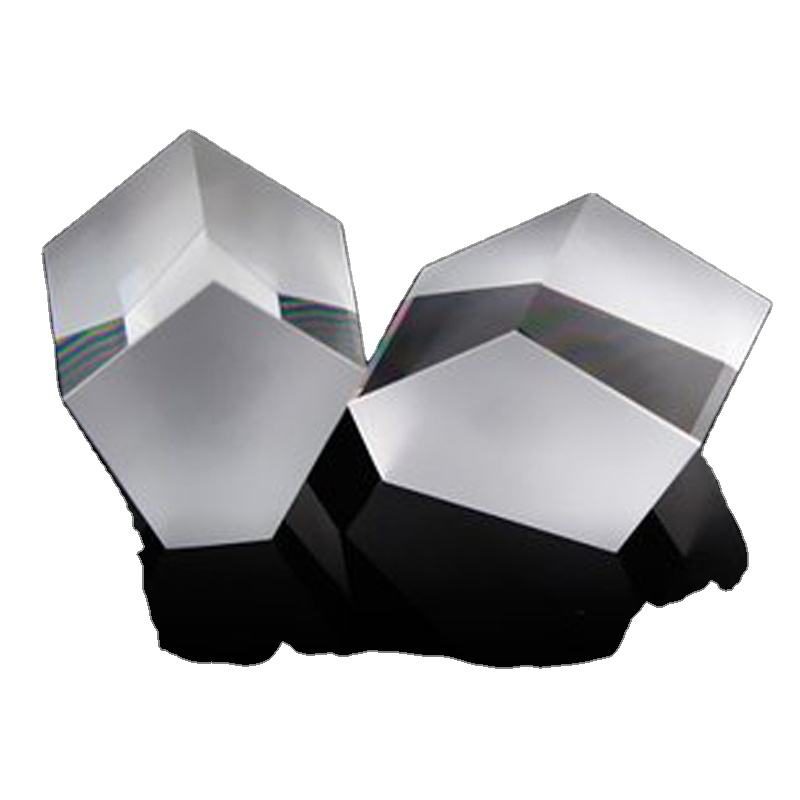

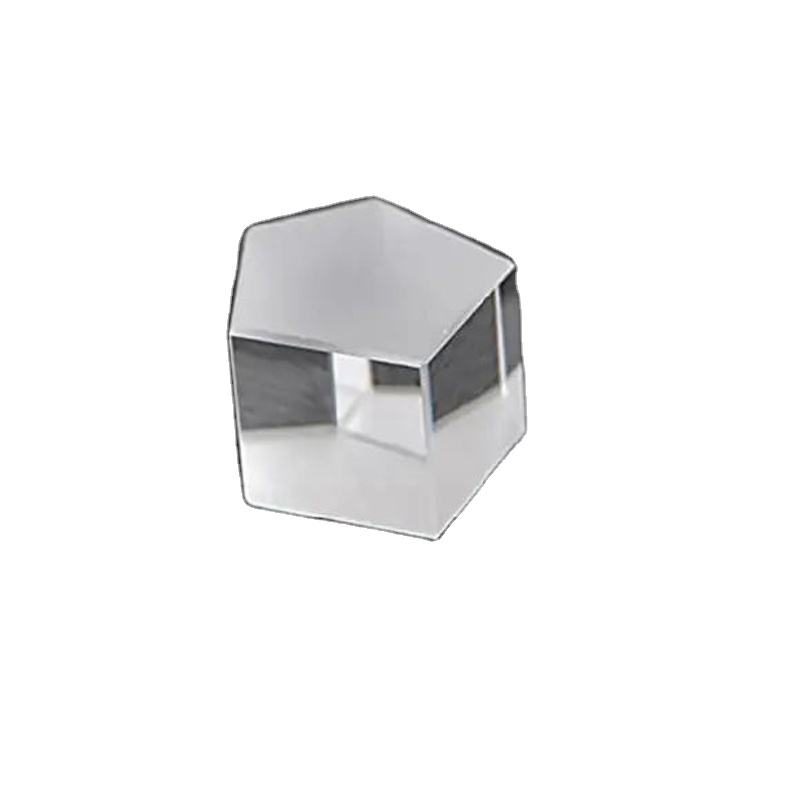

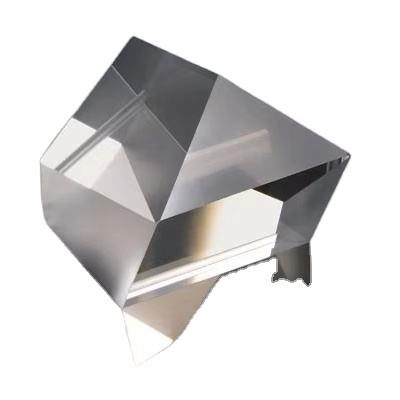

1 mm BK7 Custom Optical Prism, AR Coated
Custom rhombic prism in BK7 with AR coating, precision tolerance, and sizes from 5mm to 100mm for laser and research applications.
Core attributes
- Material
- BK7
- Shape
- Custom
- Size
- 1 mm
- Thickness
- Custom
- Reflectance
- 5%
- Coating
- anti-reflective (AR)
- MOQ
- 1
Product facts
Key attributes
- Material
- BK7
- Shape
- Custom
- Size
- 1 mm
- Thickness
- Custom
- Reflectance
- 5%
- Coating
- anti-reflective (AR)
- MOQ
- 1
Product description
This custom rhombic prism, made from high-quality BK7 material, is designed for precision applications in laser and research fields. With customizable dimensions ranging from 5mm to 100mm and an anti-reflection coating that minimizes surface reflections, it ensures optimal light transmission. The prism’s precision engineering achieves a tolerance of ±0.0/-0.1mm, making it ideal for high-accuracy optical alignment. Its versatility and quality make it a reliable choice for various optical setups.
Key Features
- Custom sizes from 5mm to 100mm for tailored optical solutions.
- Achieves ±0.0/-0.1mm tolerance for high-accuracy alignment.
- Anti-reflection coating reduces surface reflections by up to 5%.
- Flatness of 1/10 Lambda @632.8nm ensures wavefront integrity.
- Low MOQ of 1 allows for prototyping and small batch orders.
Applications
Laser, Research
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Custom |
| Size | 1 mm |
| Thickness | Custom |
| Reflectance | 5% |
| Coating | anti-reflective (AR) |
| MOQ | 1 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Rhombic |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Brand | Yun-L |
| Dimension | 5/10/12/15/20/25mm/customed |
| Moq | 1 |
| Dimension Tolerance | ±0.0/-0.1mm |
| Flatness | 1/10 Lambda @632.8nm |
FAQ
Can I get custom sizes?
Yes, the prism is available in various sizes from 5mm to 100mm.
What is the dimension tolerance?
The dimension tolerance is ±0.0/-0.1mm for precise optical alignment.
