1 / 6Optical Prisms

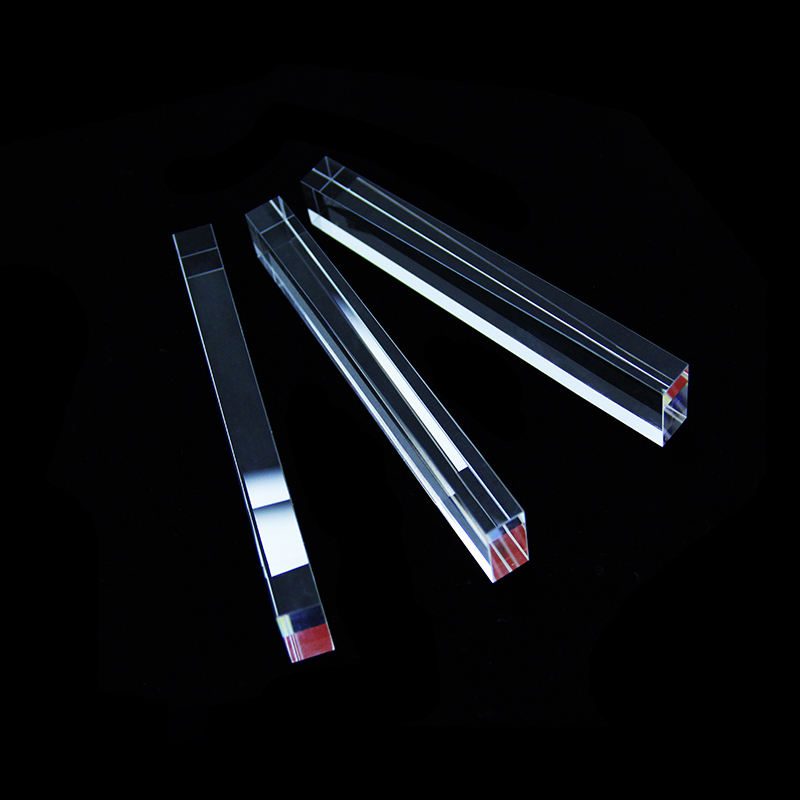

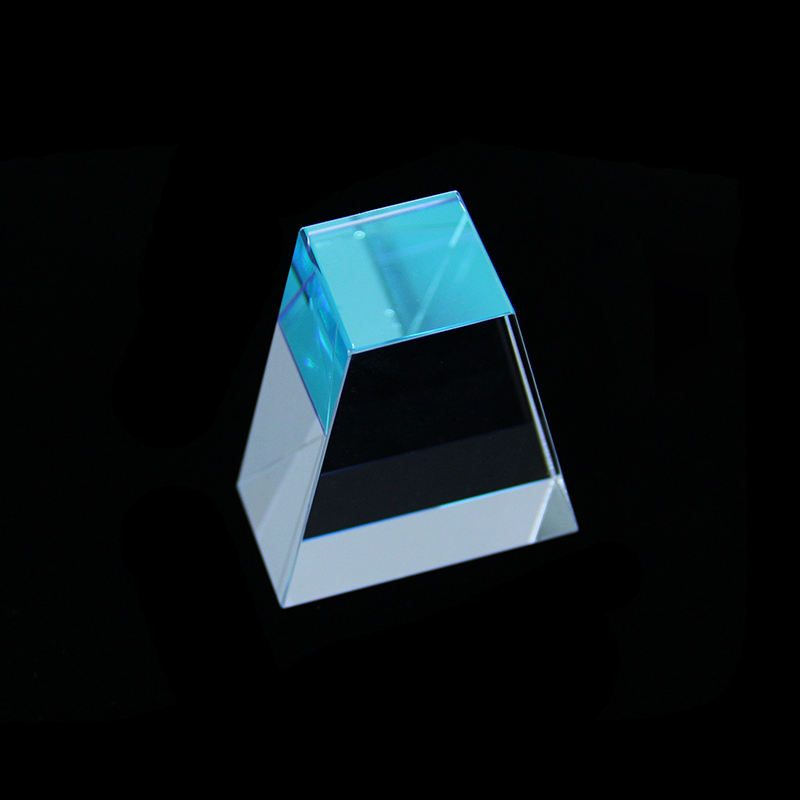

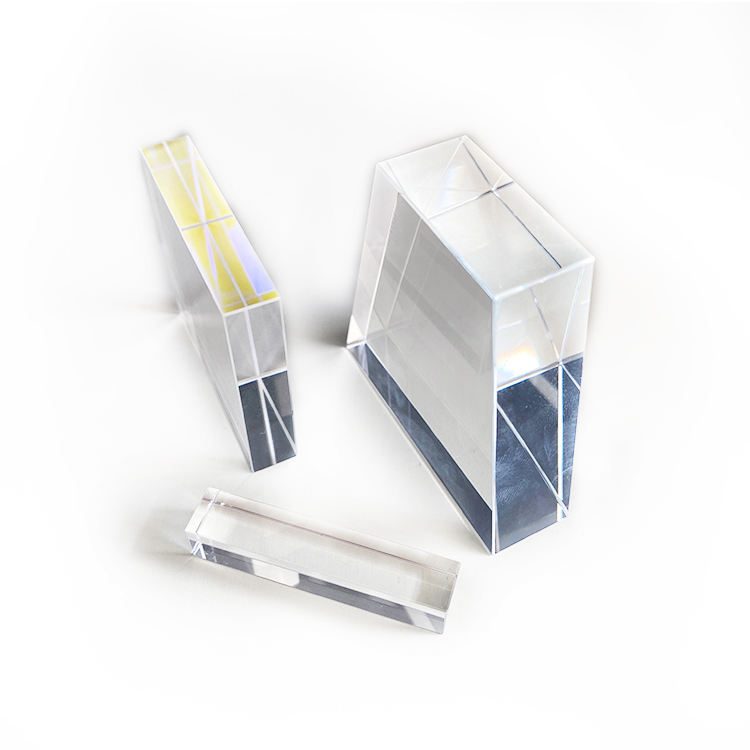

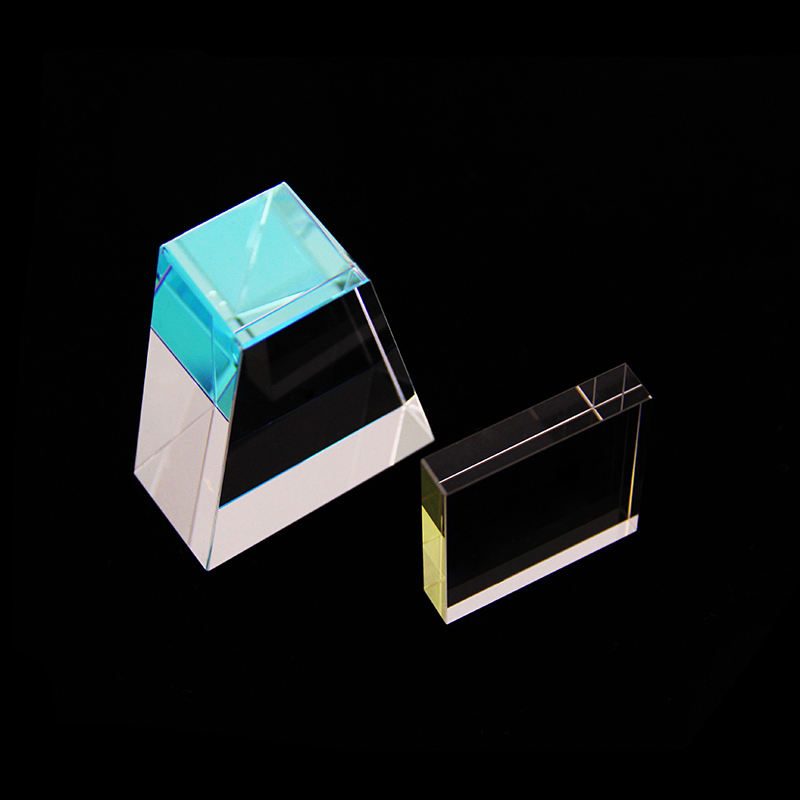

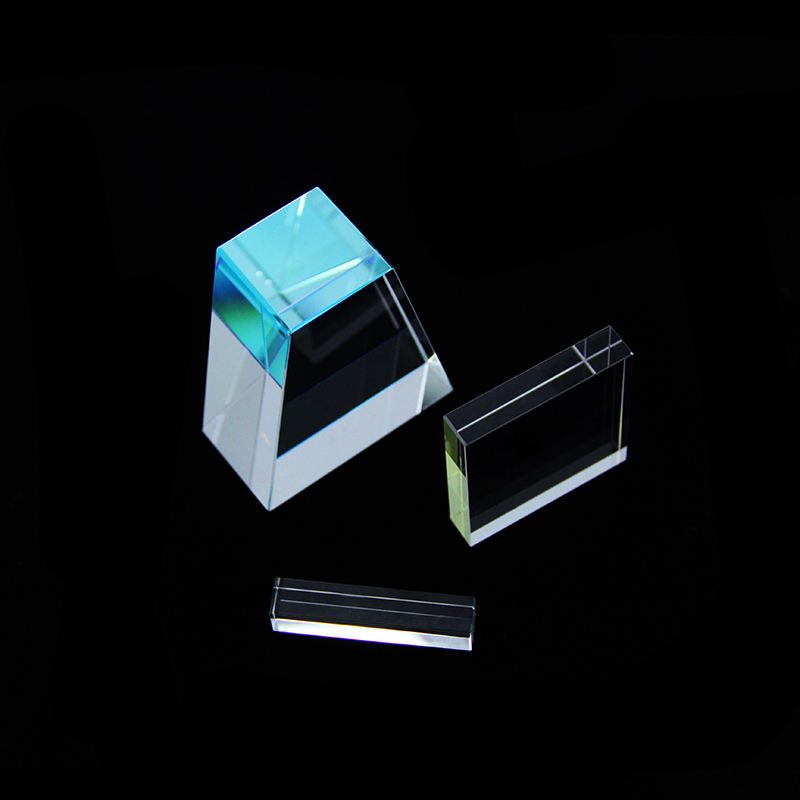

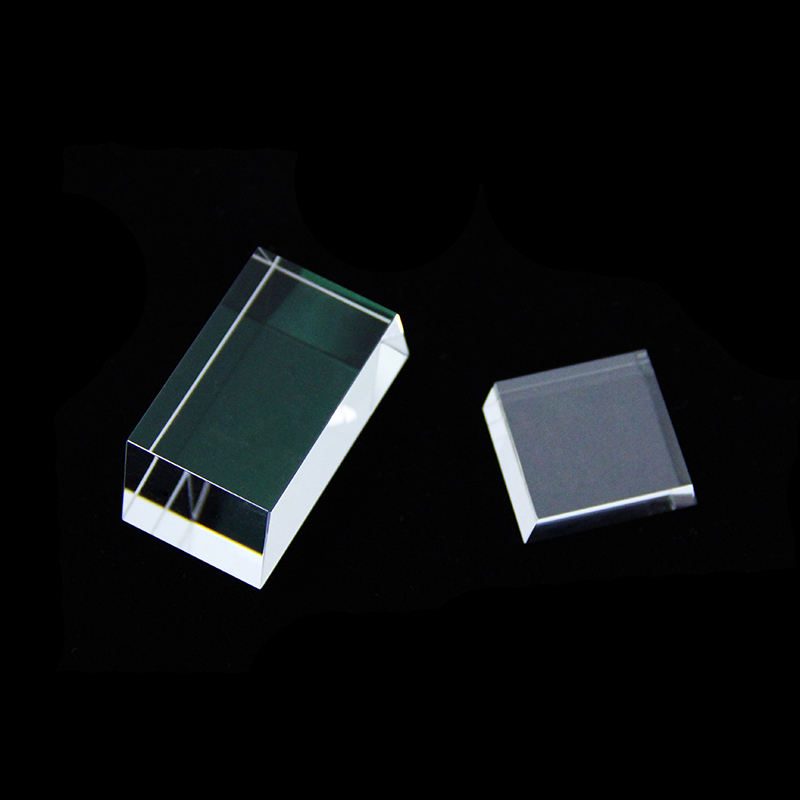

Custom Size BK7 Custom Optical Prism
Custom BK7 prism for laser applications with 1/4 lambda flatness and ±3' angle tolerance.
Core attributes
- Material
- BK7
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
Product facts
Key attributes
- Material
- BK7
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
Product description
This custom prism, made from BK7, is designed for laser applications, providing reliable performance with a clear aperture of 85%-95%. It features a flatness of 1/4 lambda and an angle tolerance of ±3’, ensuring precision in optical paths. The prism is suitable for various configurations, with options for OEM, ODM, and OBM support to meet specific project requirements.
Key Features
- Surface quality of 60/40 ensures effective light transmission.
- Flatness of 1/4 lambda maintains wavefront integrity.
- Angle tolerance of ±3’ allows for precise alignment in optical systems.
- Clear aperture of 85%-95% maximizes light throughput.
- Customizable options available for tailored optical solutions.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Custom |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | None |
| Flatness | 1/4 lambda |
| Angle Tolerance | ±3' |
| Clear Aperture | 85%-95% |
| Bevel | 0.1-0.2mmx45 |
| Key Word | light guide plate |
FAQ
Can I get custom sizes?
Yes, this prism is available in custom sizes to fit specific applications.
What is the angle tolerance?
The angle tolerance for this prism is ±3'.
