1 / 6Optical Prisms

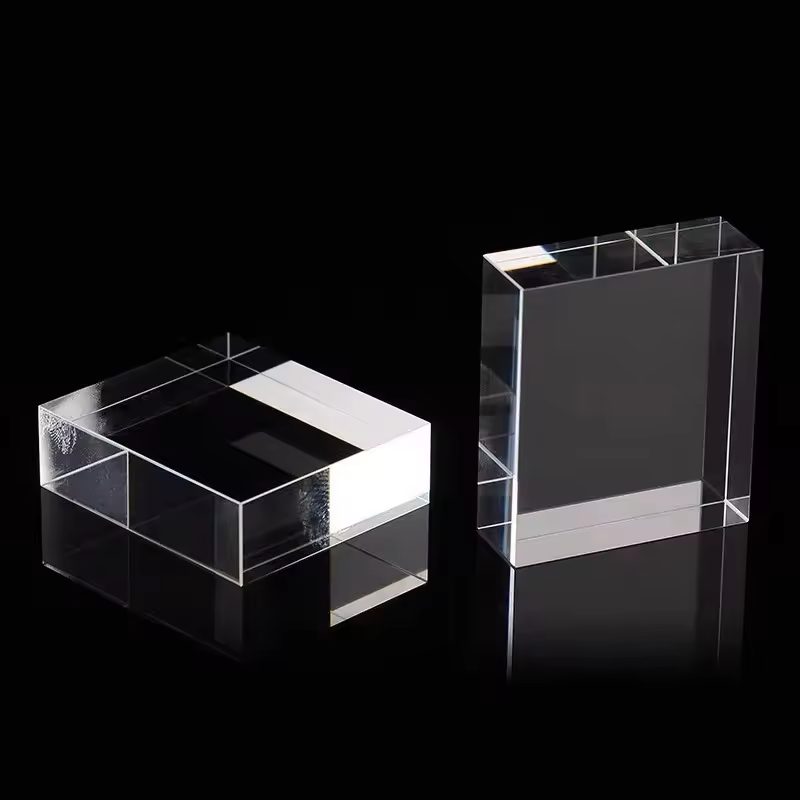

Custom Size BK7 Custom Optical Prism, AR Coated
BK7 light guide prisms with 98% clear aperture, 40/20 surface quality, and custom sizing options for precise optical applications.
Core attributes
- Material
- BK7
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
Product description
Light guide prisms made from BK7 optical glass offer high performance for various applications requiring precise light manipulation. With a clear aperture of 98% and a surface quality of 40/20, these prisms ensure minimal light loss and distortion. Custom sizes and OEM support are available to meet specific project needs, making them suitable for diverse optical paths.
Key Features
- Clear aperture of 98% for optimal light transmission.
- Surface quality of 40/20 ensures minimal distortion.
- Customizable dimensions available for specific applications.
- OEM support for tailored solutions and prototypes.
- Diameter tolerance of +/-0.02mm for precision fitting.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Custom |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Light Guide Prisms |
| Customized Support | OEM |
| Warranty | 3 Years |
| Type | Optical Glass Prism |
| Clear Aperture | 98% |
| Color | Transparent |
| Diameter Tolerance | +/-0.02mm |
| Flatness | 1/4 Lambda |
FAQ
Can I get custom sizes for the prisms?
Yes, custom sizes are available to meet specific application requirements.
What is the surface flatness of the prisms?
The prisms have a flatness specification of 1/4 Lambda.
