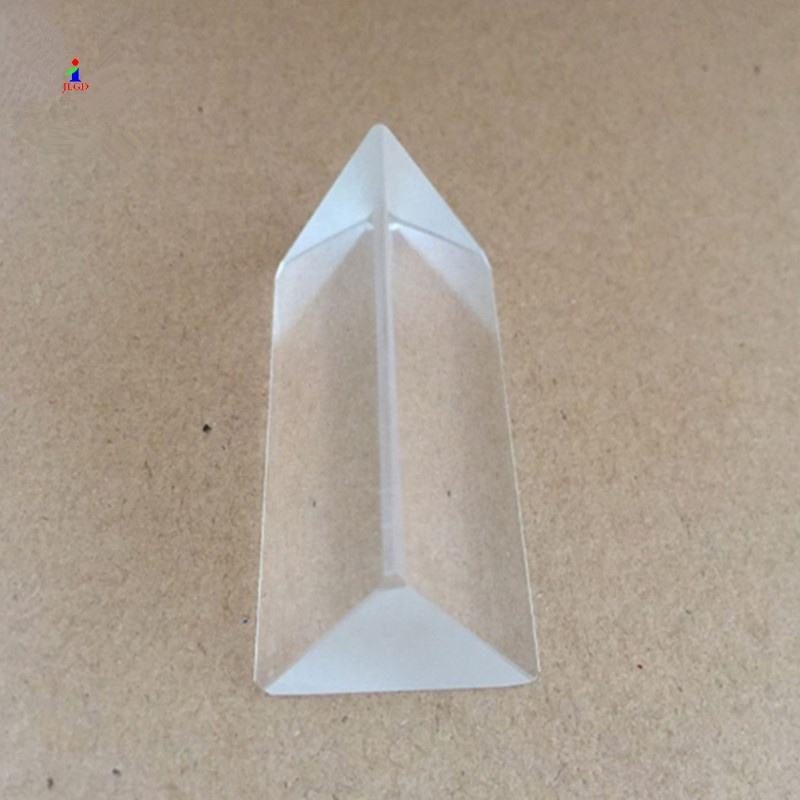

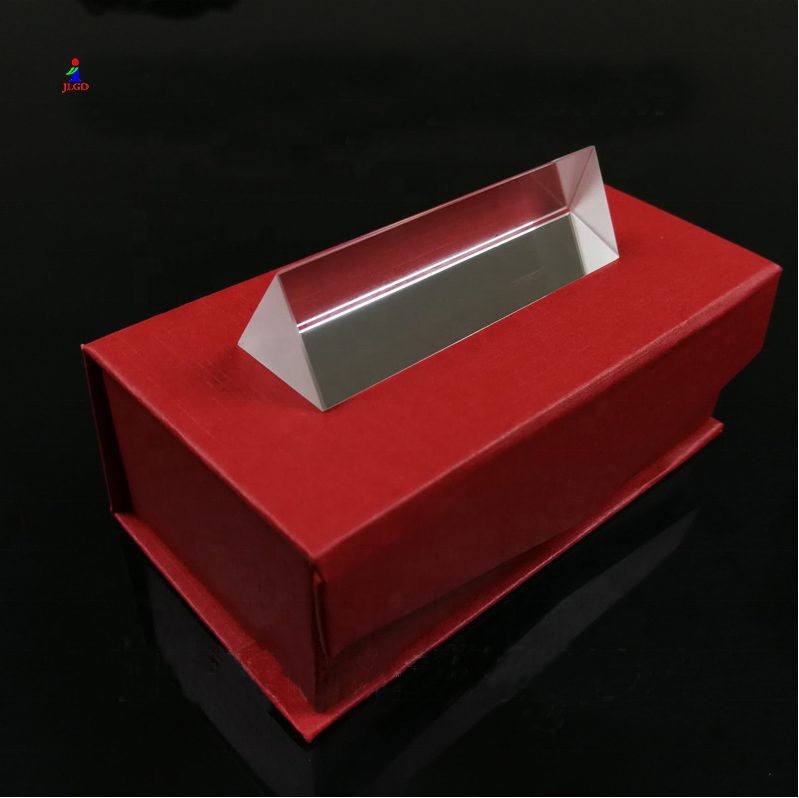

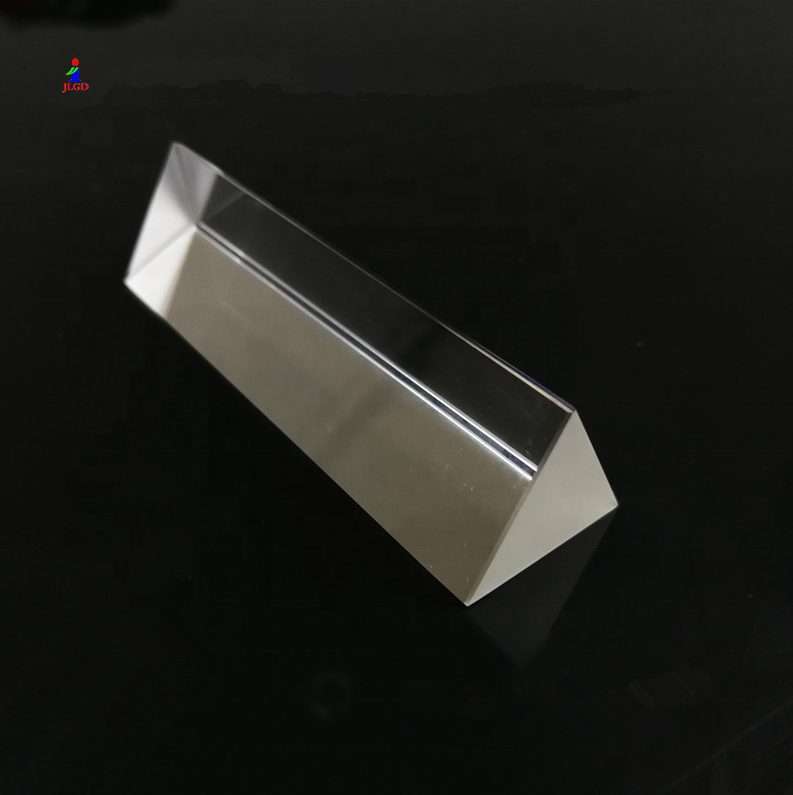

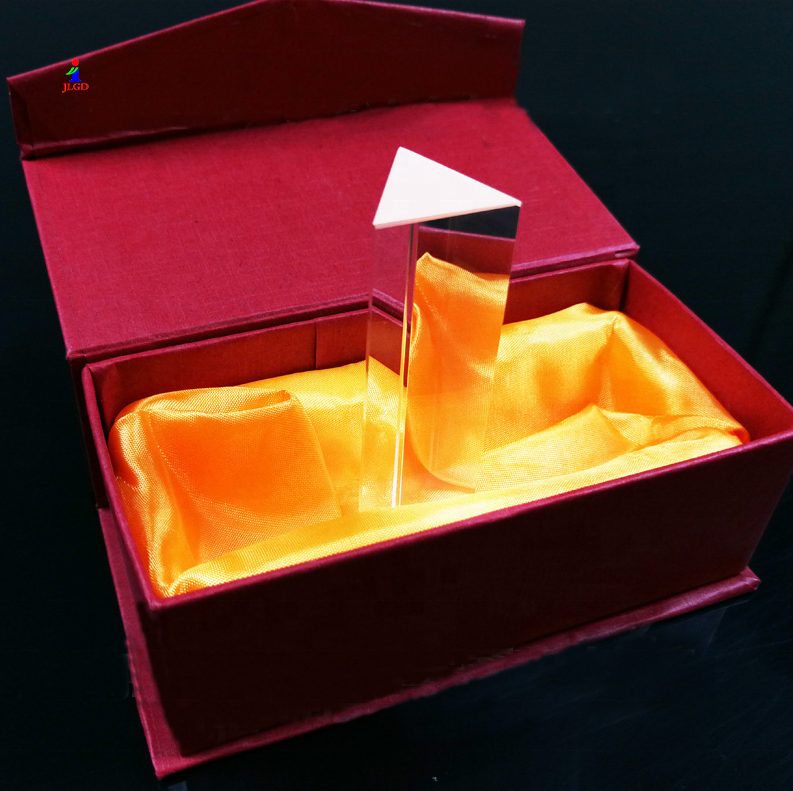

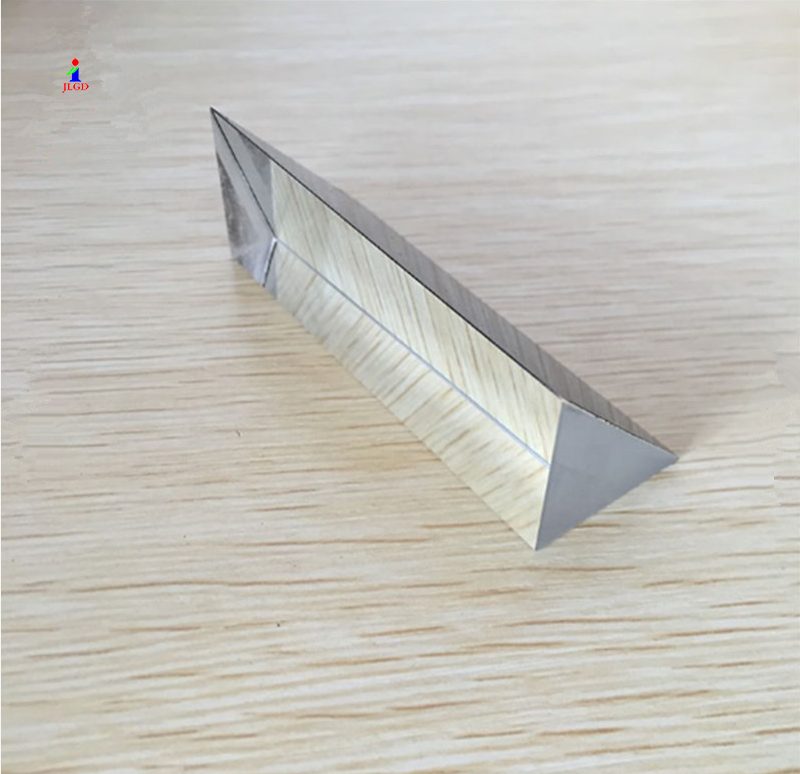

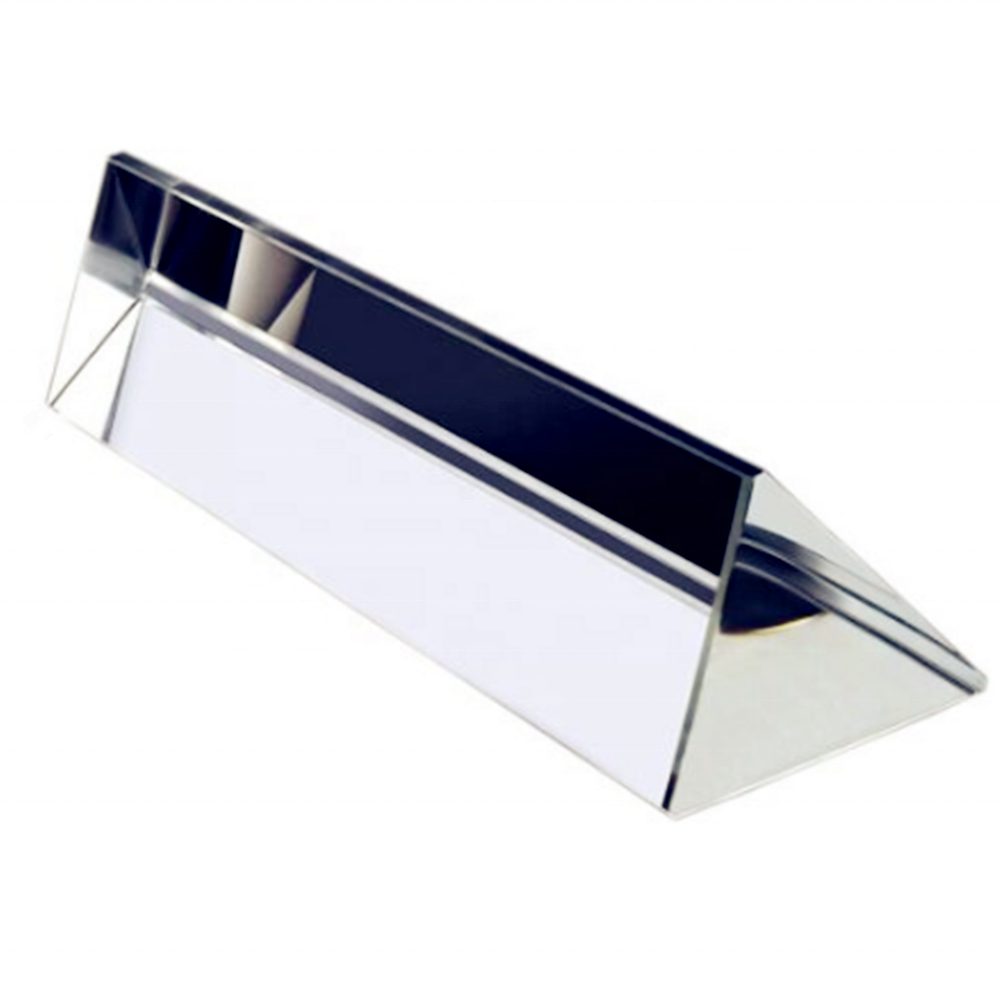

30 mm BK7 Equilateral Optical Prism
Equilateral BK7 prism with +/-3 minutes angle tolerance, ideal for precise optical applications.
Core attributes
- Material
- BK7
- Shape
- Equilateral
- Size
- 30 mm
- Thickness
- Custom
Product facts
Key attributes
- Material
- BK7
- Shape
- Equilateral
- Size
- 30 mm
- Thickness
- Custom
Product description
The equilateral prism made from BK7 is designed for precise optical applications requiring high accuracy in beam deviation. With a size of 30mm on each side, this prism is ideal for use in various optical paths. Its angle tolerance of +/-3 minutes ensures reliable performance in applications such as beam steering and light manipulation. The prism is available with customization options to fit specific project needs.
Key Features
- Equilateral design for uniform light distribution, enhancing optical performance.
- Angle tolerance of +/-3 minutes for precise beam deviation, ensuring accuracy in applications.
- Flatness specification of 1/4 for superior wavefront integrity, critical for high-resolution imaging.
- Size tolerance of +/-0.1mm for consistent batch quality, meeting rigorous engineering standards.
- Customized support available for OEM, ODM, and OBM projects, accommodating specific requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Equilateral |
| Size | 30 mm |
| Thickness | Custom |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Flatness | 1/4 |
| Angle Tolerance | +/-3minutes |
| Type | triangular prism |
| Size Tolerance | +/-0.1mm |
FAQ
Can I get custom sizes for this prism?
Yes, customization options are available to fit specific project needs.
What is the angle tolerance for this prism?
The angle tolerance is +/-3 minutes, ensuring high accuracy in beam deviation.
