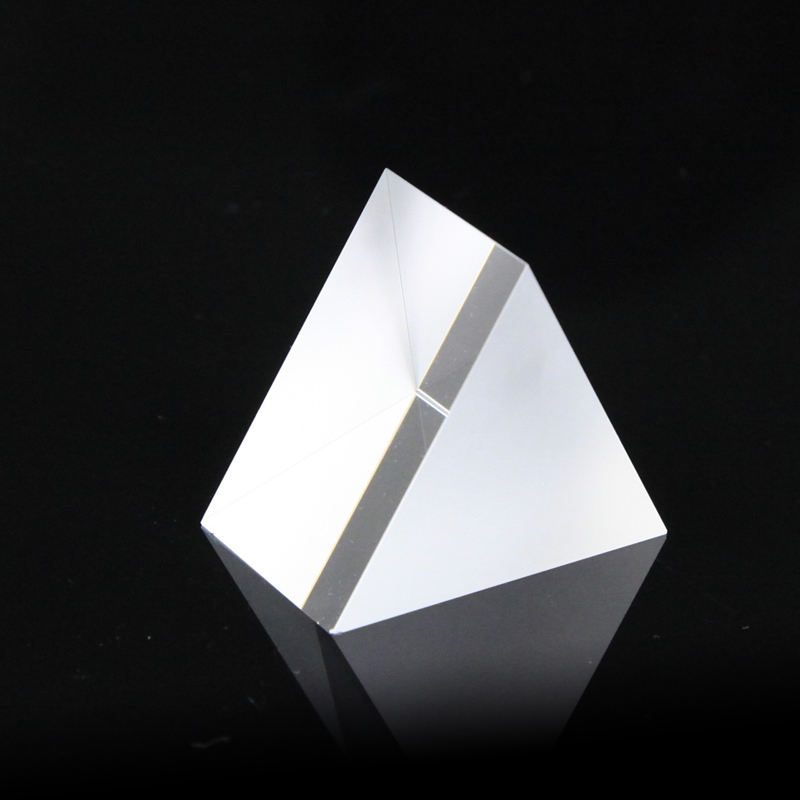

40 mm BK7 Equilateral Optical Prism — image 1 1 / 6

Optical Prisms

40 mm BK7 Equilateral Optical Prism

Equilateral BK7 prism with high angle accuracy and customizable options for precise optical applications.

Core attributes

Material
BK7
Shape
Equilateral
Size
40 mm
Thickness
Custom
Surface Quality
60/40

Product facts

Key attributes

Material
BK7
Shape
Equilateral
Size
40 mm
Thickness
Custom
Surface Quality
60/40

Product description

The equilateral prism made from BK7 is designed for applications requiring precise light manipulation. With an angle tolerance of +/-3 minutes and a surface quality of 60/40, it ensures minimal distortion in optical paths. This prism is ideal for various optical setups, providing reliable performance in laser and imaging systems.

Key Features

  • Angle tolerance of +/-3 minutes ensures high accuracy in optical applications.
  • Surface quality of 60/40 supports effective light transmission and minimal distortion.
  • Clear aperture greater than 90% maximizes light throughput.
  • Bevel of 0.2 mm at 45 degrees enhances handling and installation.
  • Supported by OEM, ODM, and OBM customization options for tailored solutions.

Specification Summary

ItemValue
MaterialBK7
ShapeEquilateral
Size40 mm
ThicknessCustom
Surface Quality60/40

Full Specifications

ParameterValue
Prism TypeTriangular Prism
Customized SupportOEM, ODM, OBM
Warranty3 Years
Surface FlatnessLambda/4
Angle Tolerance+/-3 minutes
Bevel0.2 mm*45 degrees
Clear Aperture>90%

FAQ

Can I get custom sizes?

Yes, customization options include OEM, ODM, and OBM support.

What is the angle tolerance?

The angle tolerance for this prism is +/-3 minutes.
