10x1 mm BK7 Flat Optical Mirror

Product description

This BK7 flat mirror with a dielectric high-reflectivity coating is designed for projection applications, providing over 95% reflectance. The first-surface construction eliminates ghosting, ensuring bright and clear images in projection and display systems. With a surface quality rating of 60/40 and lambda/4 flatness, it guarantees accurate optical performance. Custom sizes from 10mm to 500mm are available, making it suitable for diverse optical designs.

Key Features

Reflectance of 95% ensures bright, clear images for projection systems.

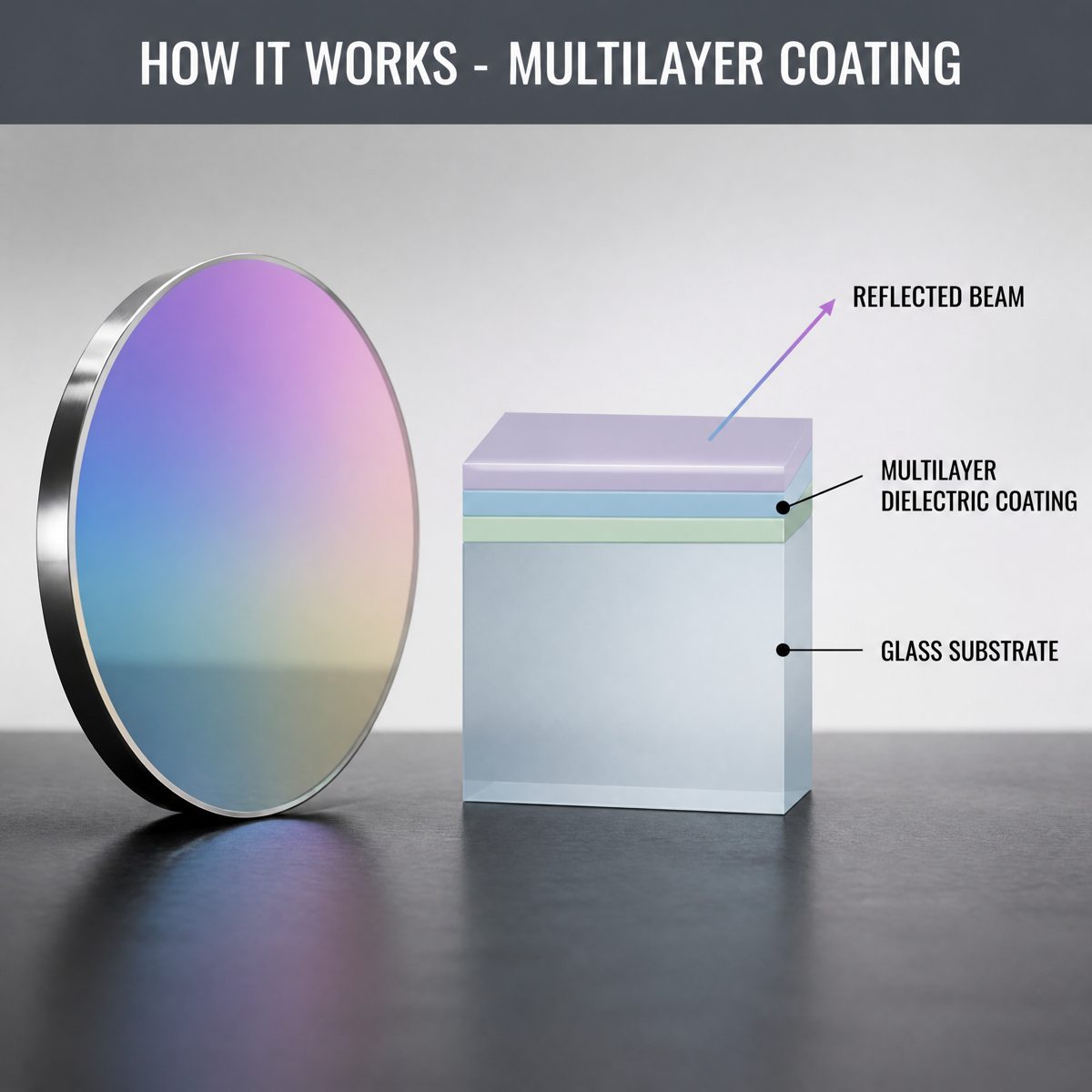

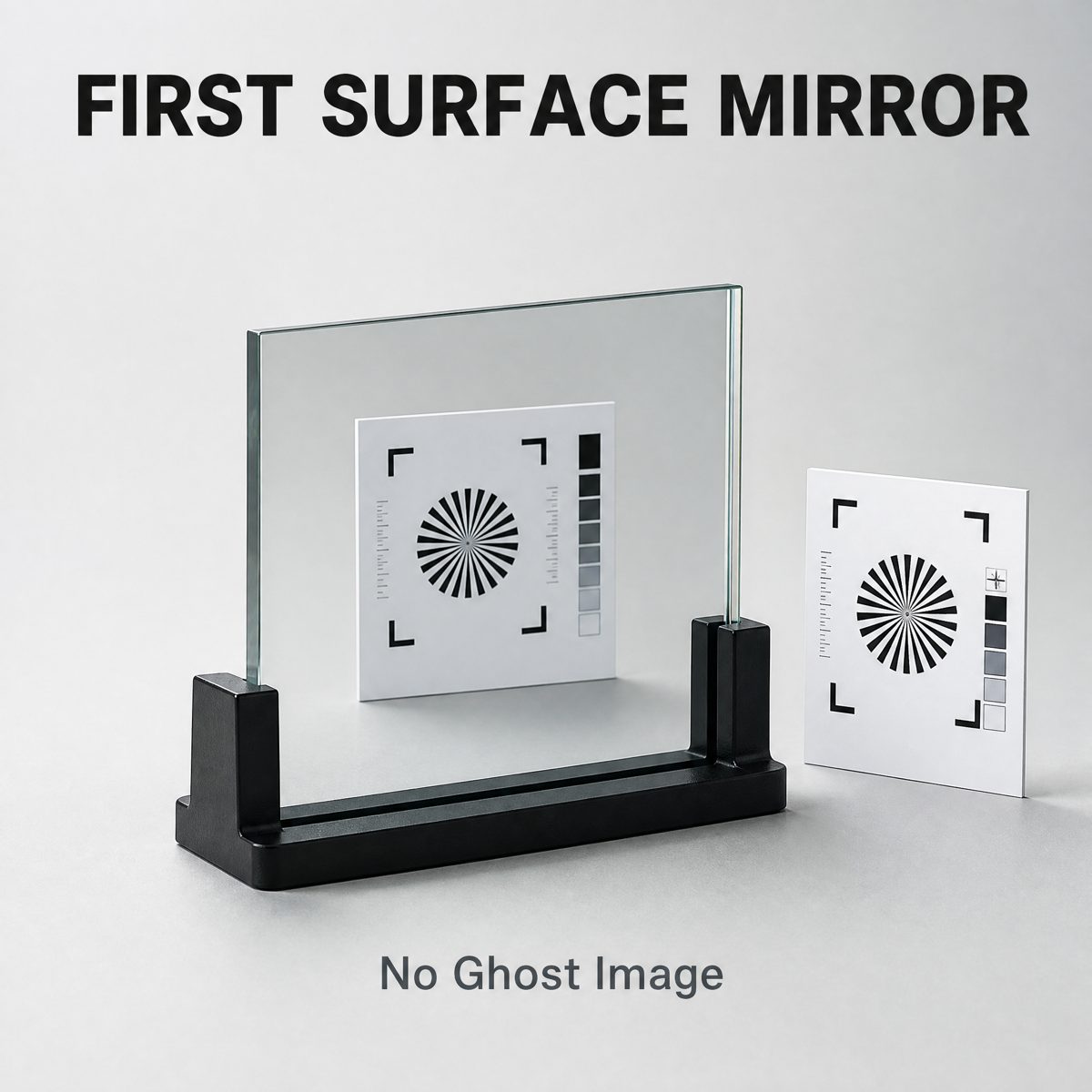

Dielectric HR coating prevents ghosting for optimal image clarity.
Surface quality of 60/40 and lambda/4 flatness guarantees accurate reflection.

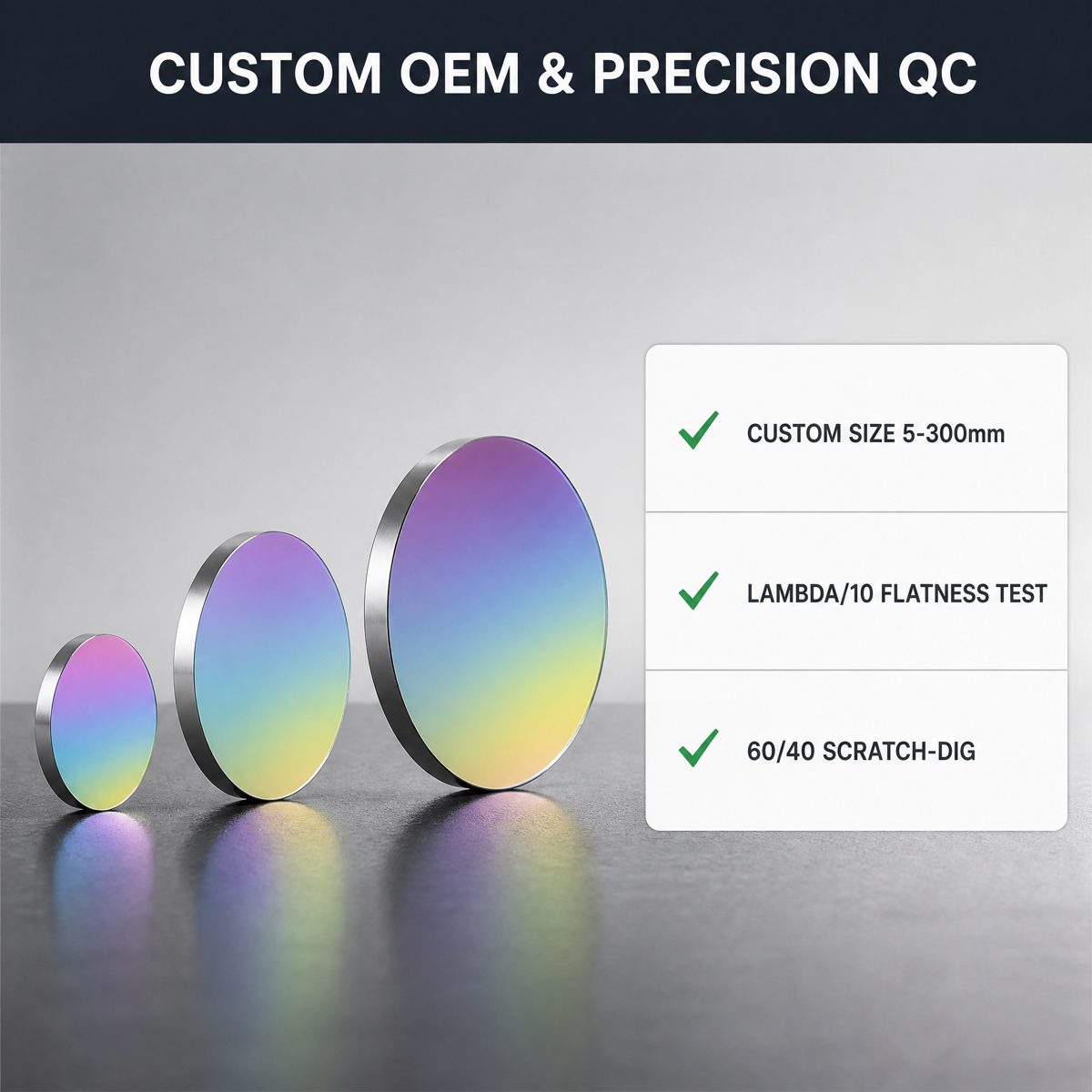

Custom sizes from 10mm to 500mm support flexible design requirements.

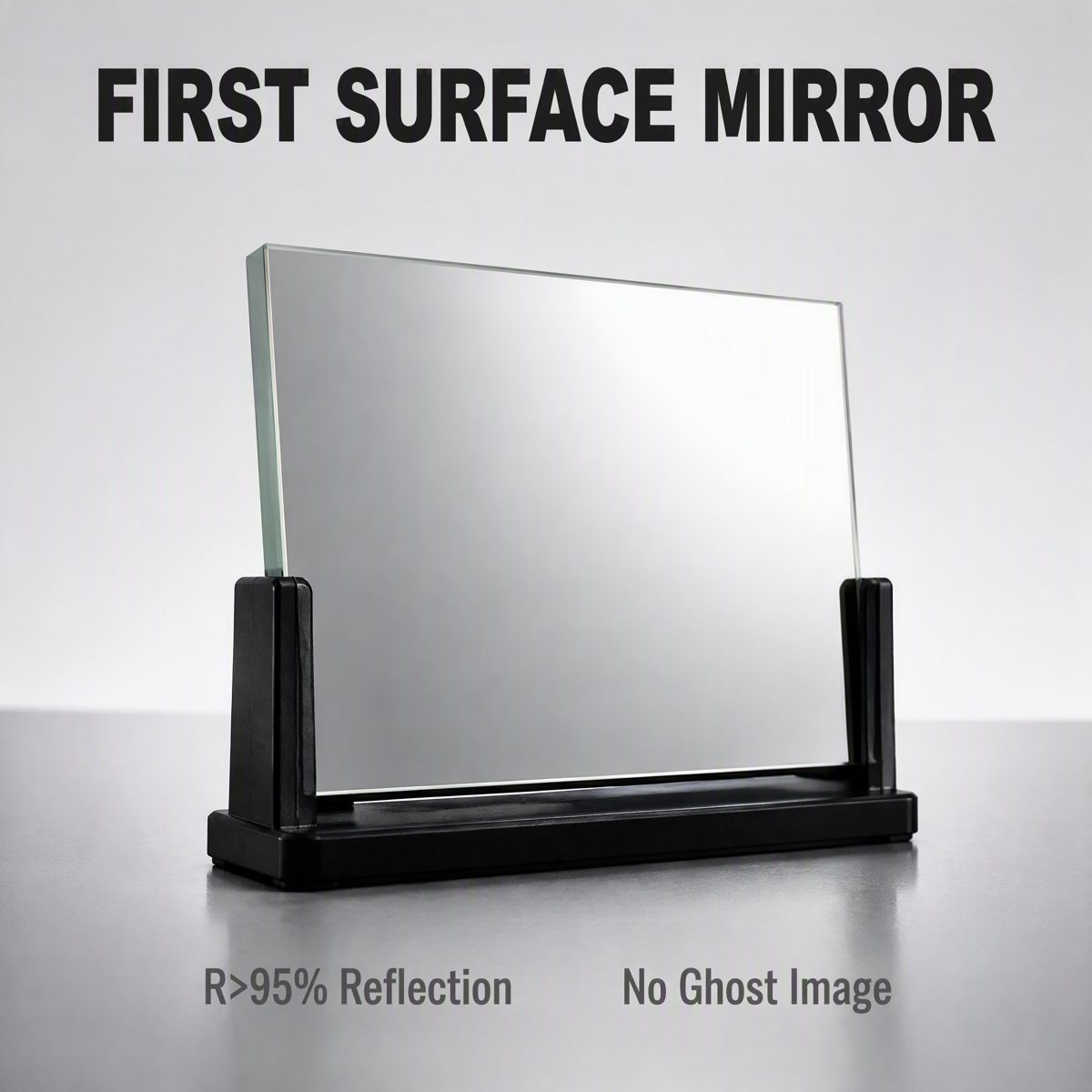

First surface construction enhances performance in optical instruments.

Available Sizes

Size x Thickness (mm)
255 x 1

Applications

Projection

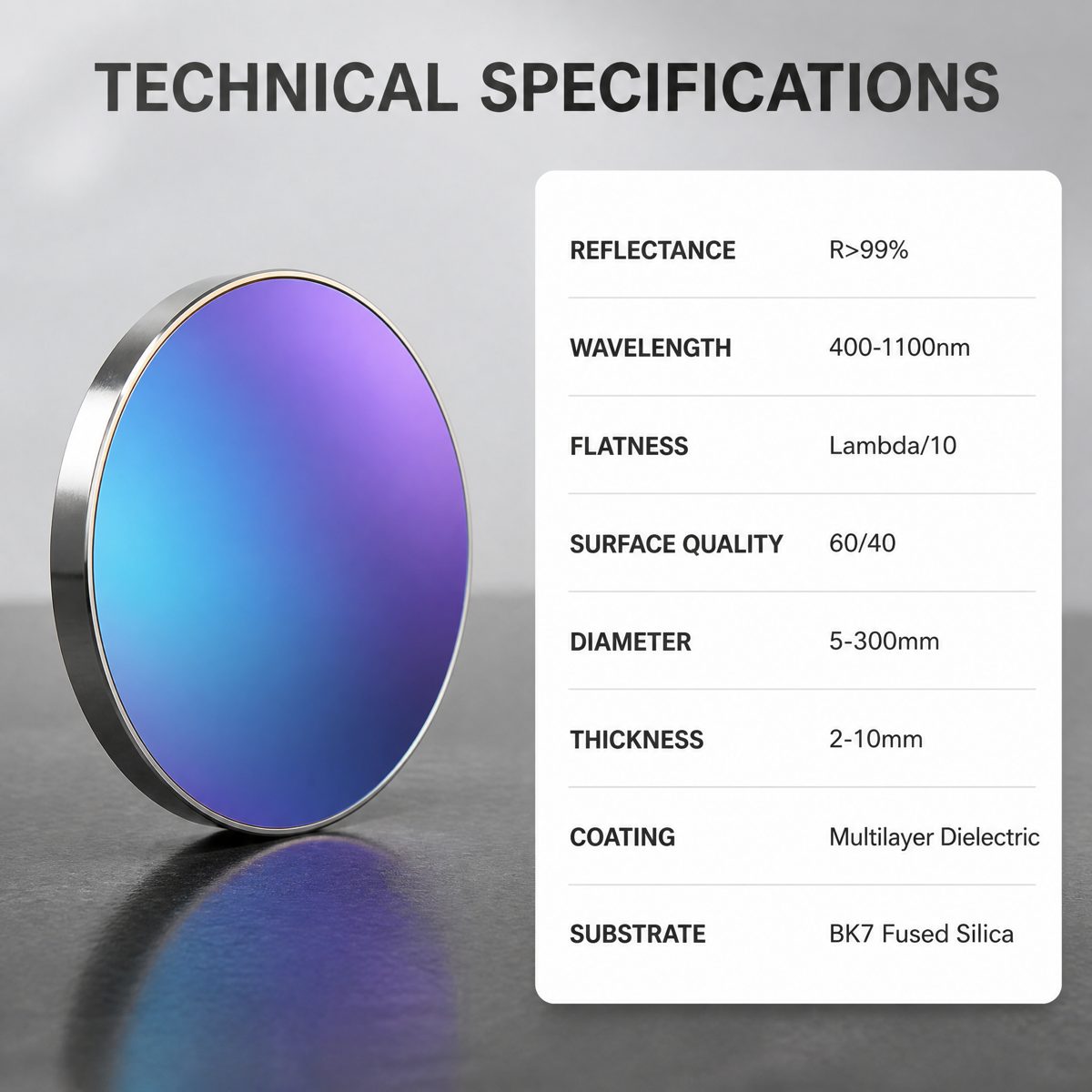

Specification Summary

Item	Value
Material	BK7
Shape	Flat
Size	10 mm
Thickness	1 mm
Surface Quality	60/40
Reflectance	95%
Coating	dielectric HR, front-surface

Full Specifications

Parameter	Value
Type	Super Smooth Optical Mirror; First Surface Mirror
Structure	Solid
Warranty	5 year
After-Sale Service	Other, Online Technical Support
Project Solution Capability	anti-reflective coating
Surface Flatness	Lambda/4

FAQ

What custom sizes are available?

Custom sizes range from 10mm to 500mm in round, square, and rectangle shapes.

What is the surface flatness specification?

The mirror has a surface flatness of lambda/4, ensuring high-quality optical performance.
