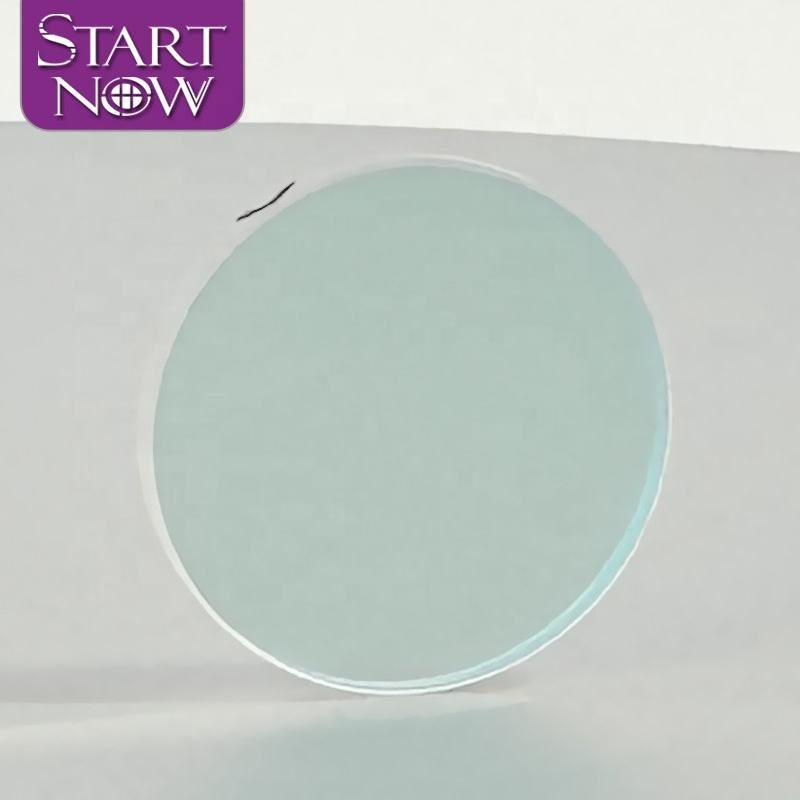

20x3 mm BK7 Flat Optical Mirror, AR Coated
Flat BK7 mirror with anti-reflective coating for laser applications in the 0.7-1.7 μm range.
Core attributes
- Material
- BK7
- Shape
- Flat
- Size
- 20 mm
- Thickness
- 3 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Flat
- Size
- 20 mm
- Thickness
- 3 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This flat BK7 mirror with anti-reflective coating is designed for laser applications, particularly effective in the 0.7-1.7 μm wavelength range. Its optimized reflectance ensures minimal loss of light intensity, making it suitable for precise optical systems. The mirror’s transparent structure allows for high transmittance, enhancing performance in various laser setups.
Key Features
- Material: BK7 for excellent optical clarity and durability.
- Coating: Anti-reflective for reduced light loss at 1064nm.
- Size: Available in a standard dimension of 20mm x 20mm with a thickness of 3mm.
- Application Fit: Ideal for laser systems operating in the 0.7-1.7 μm range.
Available Sizes
| Size x Thickness (mm) |
|---|
| 20 x 3 |
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Flat |
| Size | 20 mm |
| Thickness | 3 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Warranty | Unavailable |
| Wavelength | 1064nm |
| Color | Transparent |
| Structure | Plano |
FAQ
Are custom sizes available?
Custom sizes are not specified, but the standard size is 20mm x 20mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not provided in the data.
