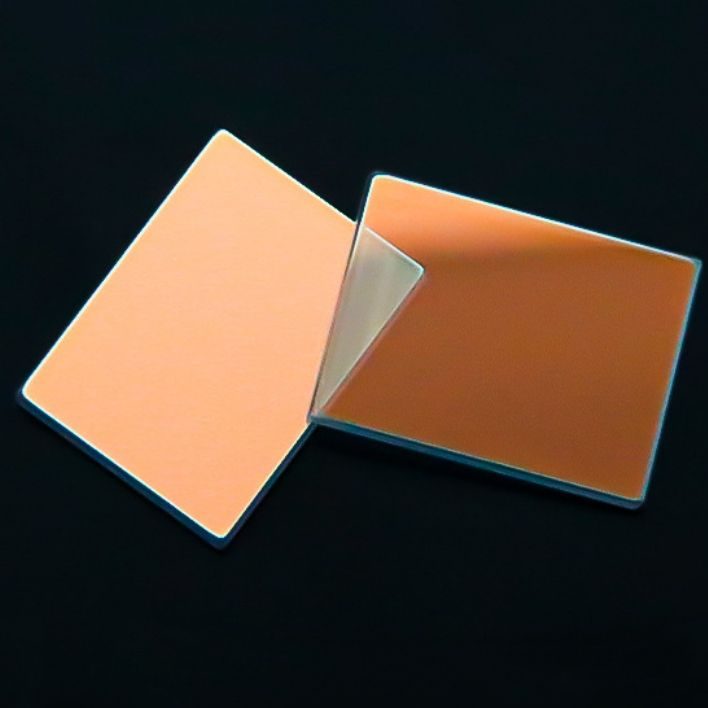

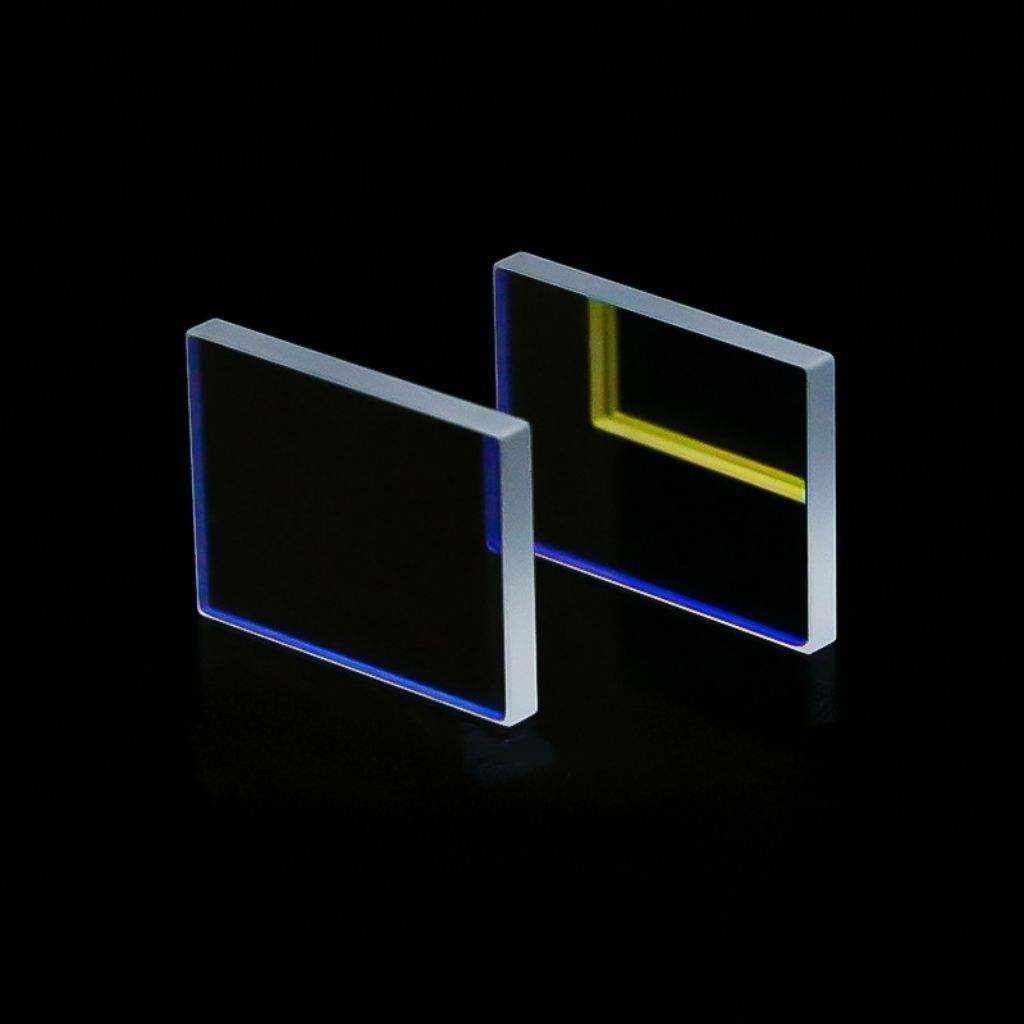

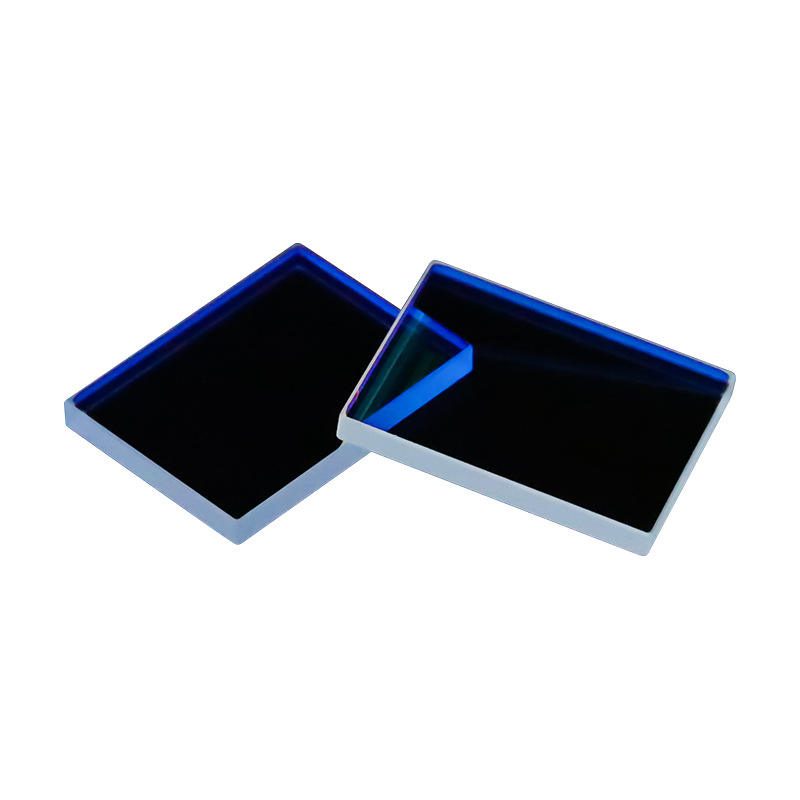

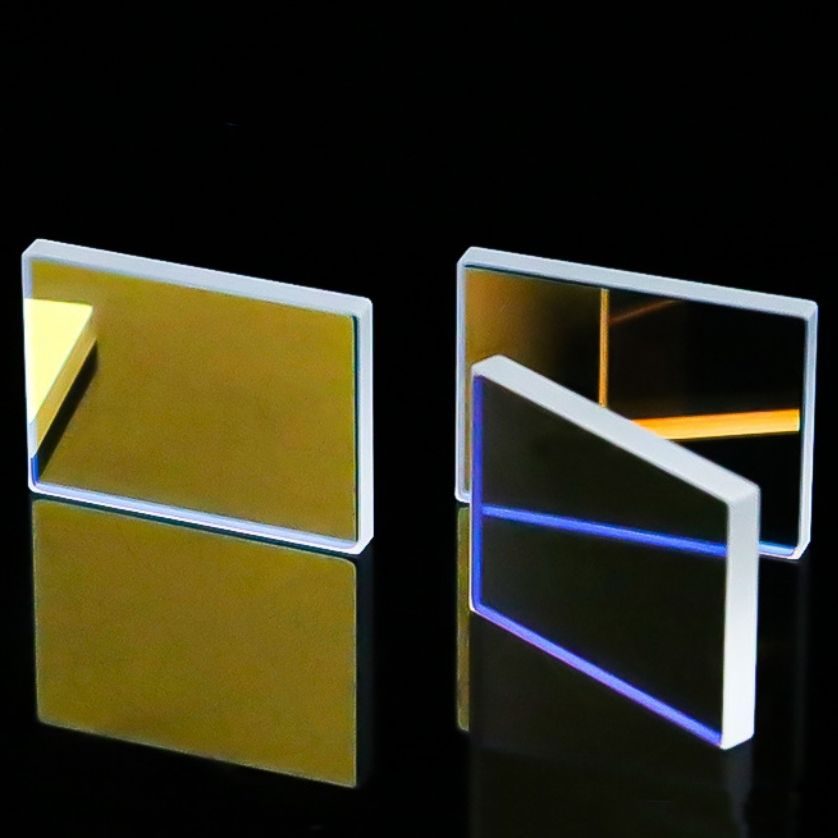

Custom Size BK7 Flat Optical Mirror

Product description

This flat BK7 mirror with dielectric high-reflectance coating is ideal for laser applications within the 400-700 nm spectral band. With a high transmittance of 90% and a surface quality rating of 60/40, it effectively minimizes losses while maintaining optical performance. Its customization options support various wavelengths, ensuring compatibility with diverse laser systems.

Key Features

Dielectric HR coating enhances reflectivity, maximizing laser efficiency.
High transmittance (≥90%) minimizes signal loss, improving system performance.
Surface quality of 60/40 ensures acceptable optical clarity for precision applications.
Customizable wavelengths (450nm, 532nm, 650nm) for tailored application fit.
Dimension tolerance of ±0.05mm / ±0.02mm ensures precise integration.

Applications

Laser

Specification Summary

Item	Value
Material	BK7
Shape	Flat
Size	Custom
Thickness	Custom
Surface Quality	60/40
Transmittance	90%
Coating	dielectric HR
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	≥90%; T>90%; T > 95%
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Wavelength	Customized / 450nm, 532nm, 650nm / RGB
Dimension Tolerance	±0.05mm / ±0.02mm

FAQ

Can I get custom sizes?

Customization is available, including support for various wavelengths and dimensions.

What is the dimension tolerance?

The dimension tolerance is ±0.05mm / ±0.02mm, ensuring precise fit for applications.
